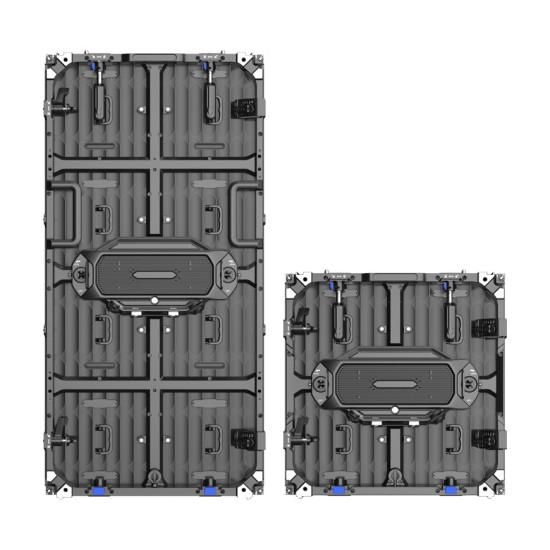

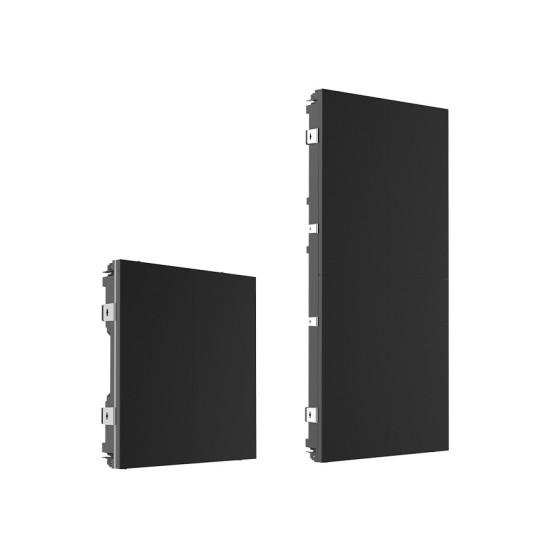

Dazzle Ⅳ Series -Indoor and Outdoor Rental LED Display

Indoor & Outdoor Applications;

Universal Modules & Power Boxes;

Fast Installation;

Easy Maintenance;

Creative Splicing;

Flexible Splicing

MOQ:
1

Features Parameters Projects

Features

Indoor & Outdoor Applications

Dazzle IV Series supports both indoor and outdoor use for different styles of staging and events.

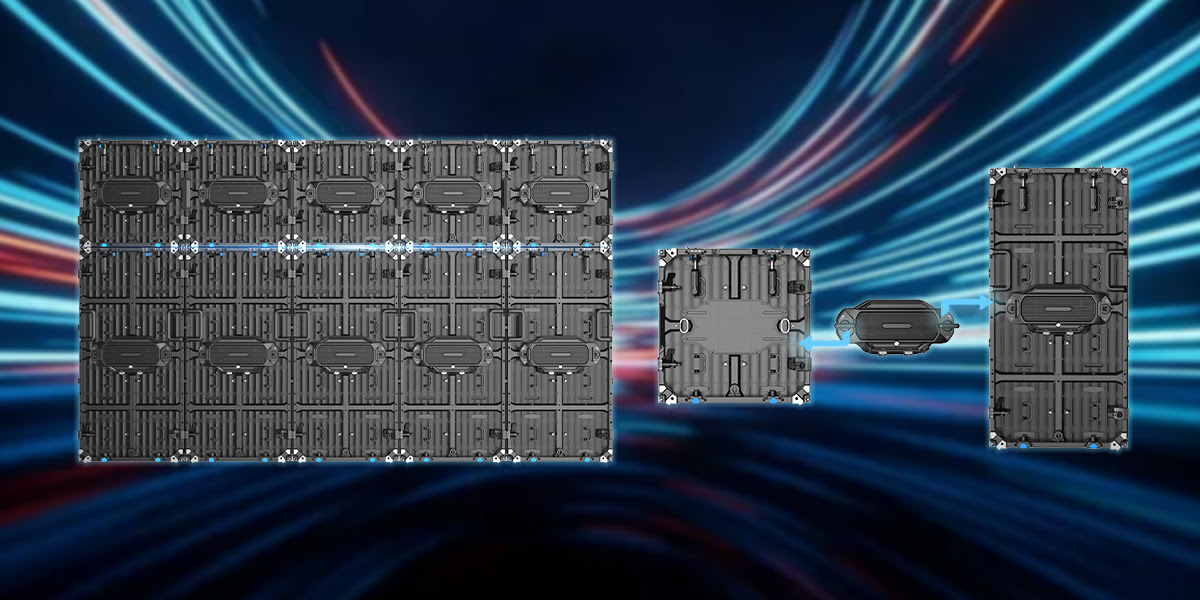

Universal Modules & Power Boxes

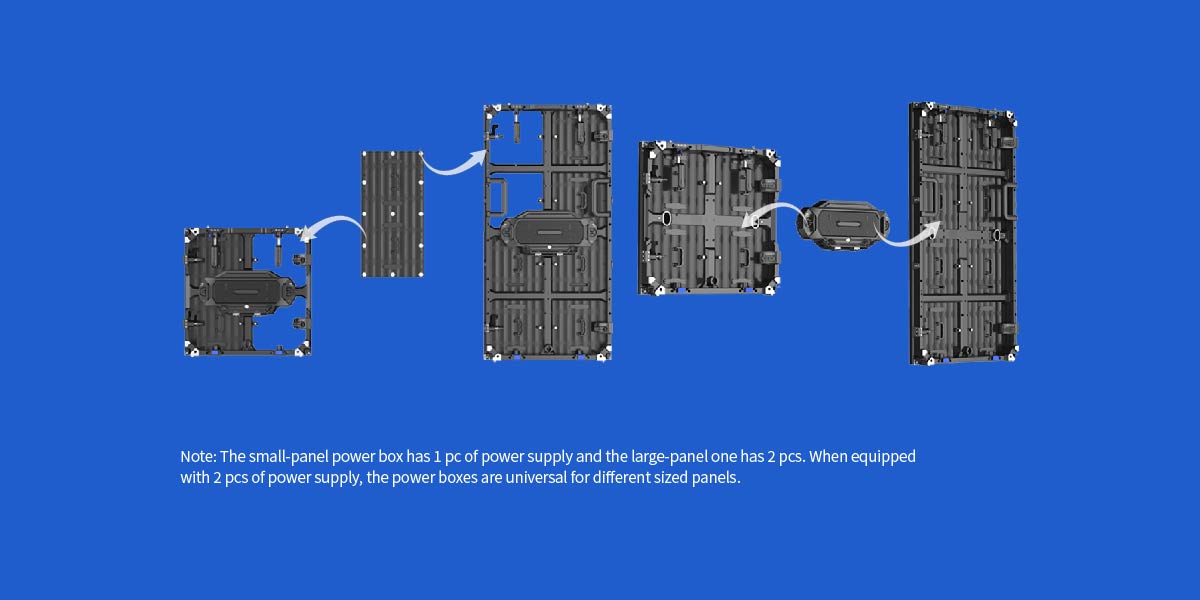

500*500 and 500*1000 panels: Universal modules and power boxes with the same power
supply and hub card for only one kind of spare part.

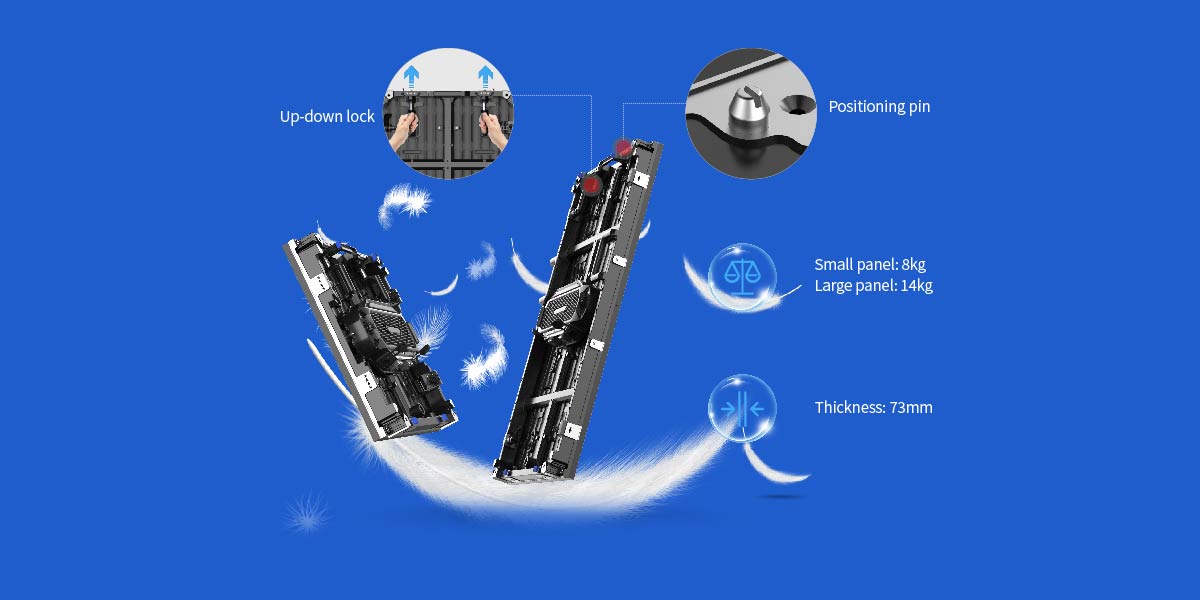

Fast Installation

Fast installation with 1s up-down locks and positioning pins

Corner protectors and arc locks (optional)
Various accessories to choose for your needs

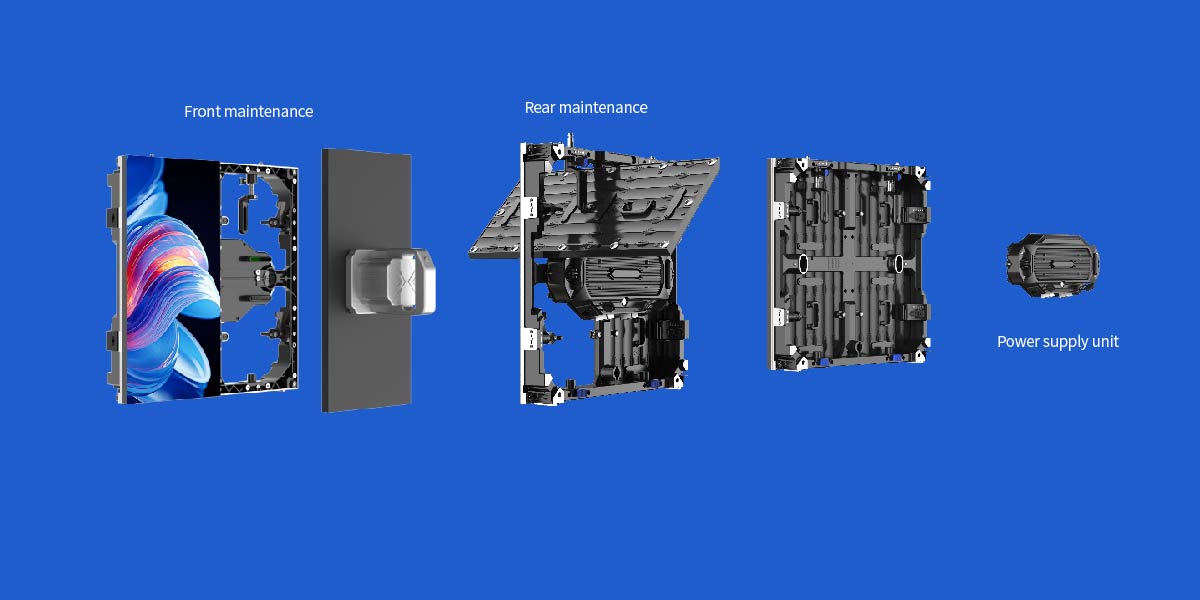

Easy Maintenance

Panel: front / rear maintenance

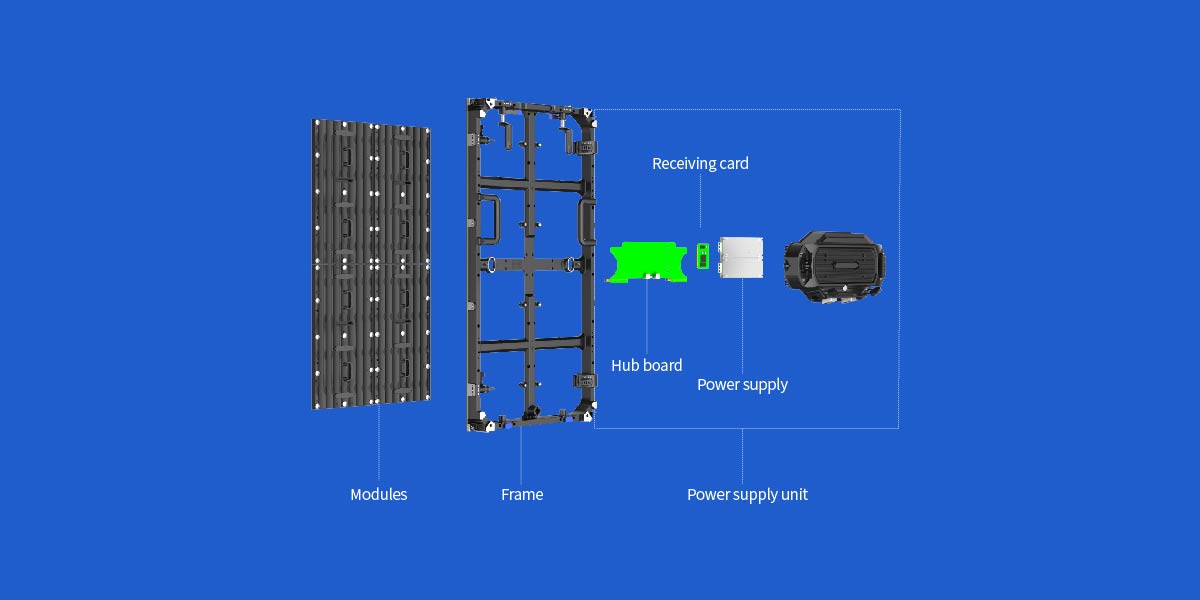

All-in-one power box: power supply, receiving card, and hub card for fast maintenance

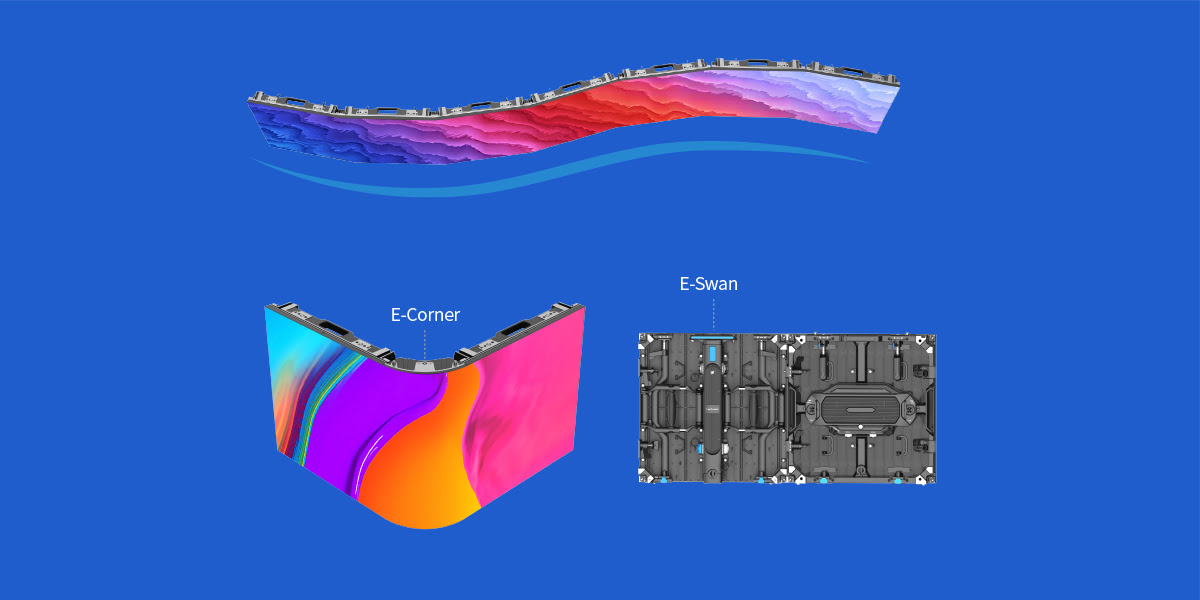

Creative Splicing

Optional curved splicing for versatile creative shapes
Mixed splicing with E-Corner Series for L-shaped splicing

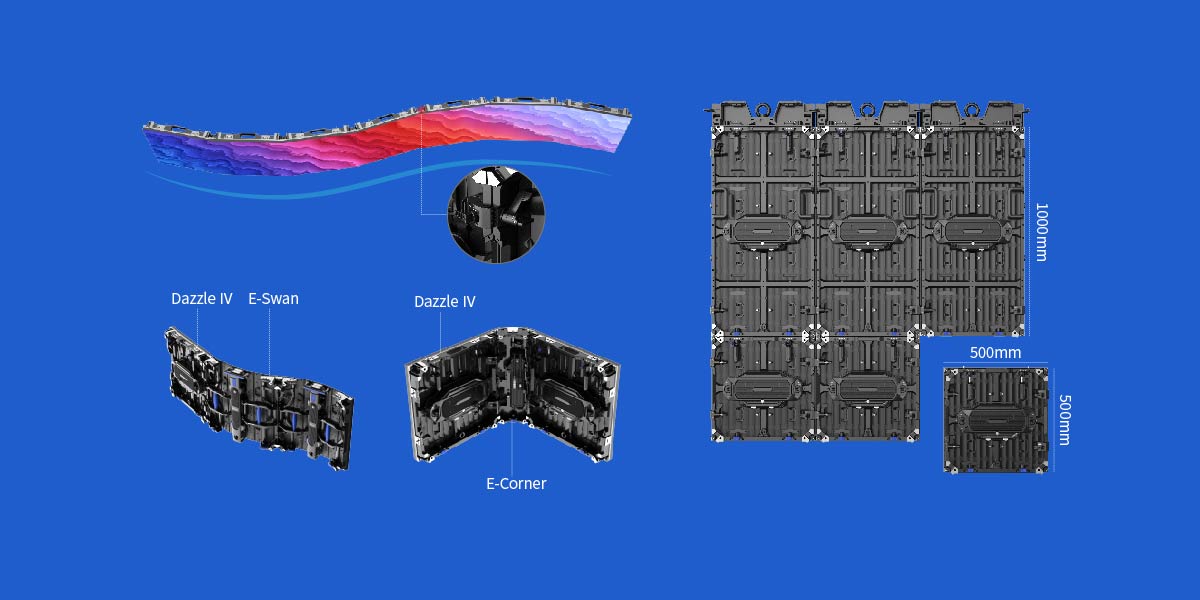

Flexible Splicing

Allow flexible up-down splicing between 500*500 and 500*1000 panels
Optional climbable structures for convenient setup

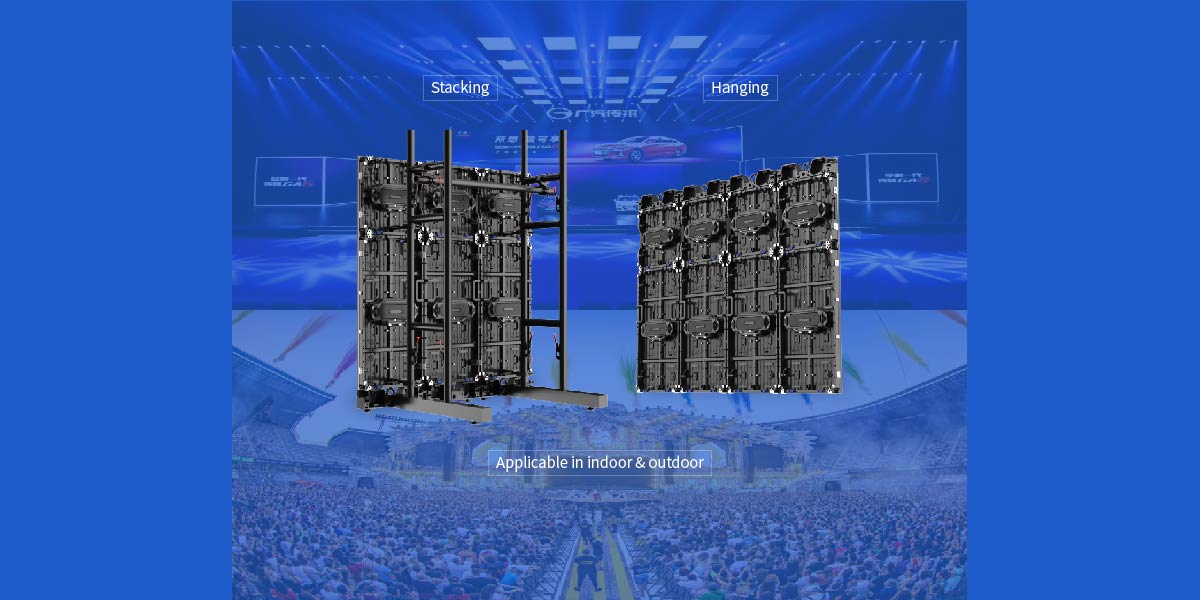

Stacking and hanging with 10m maximum height

Parameters

Model	DAⅣ2.6	DAⅣ3.9T
Pixel Pitch	2.6	3.9
Panel Size WHD(mm)	50050073/500100073
Panel Resolution (Pixel)	192192/192384	128128/128256
Panel weight (kg)	8.5/15
Brightness (nits)	900	4000
Serviceability	Rear
Panel Material	Die-casting Aluminum
