BIM Max - Indoor Fixed LED Display

BIM Max - Indoor Fixed LED Display

1. Golden ratio 16:9;

2. Ultra-thin and ultra-light, efficient for maintenance and installation;

3. Fully wall-mounted;

4. Front maintenance;

5. Automatically imports data when it is replaced

  • MOQ:

    1
  • Warranty Period:

    2 years
  • Stock:

    Available in Both Shenzhen & Branch Warehouse
  • Global Branch & Office:

    Netherlands/Dubai/Japan/India
  • Aftersale Service:

    Provide Global After-Sale Service
Features



Golden Ratio 16:9


Minimum pixel pitch cabinet resolution 640x360


2k/4k/8k led display

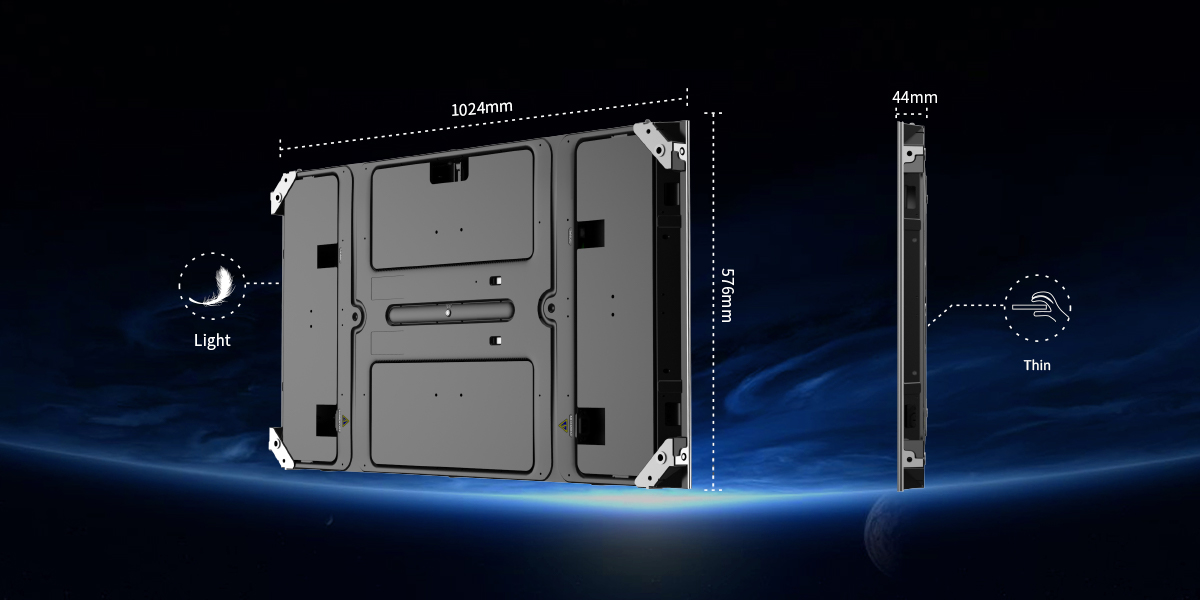

Light and Thin


Only 44mm thin and weighs only 20kg/㎡, making it more efficient for maintenance and installation


light and thin indoor fixed led screen

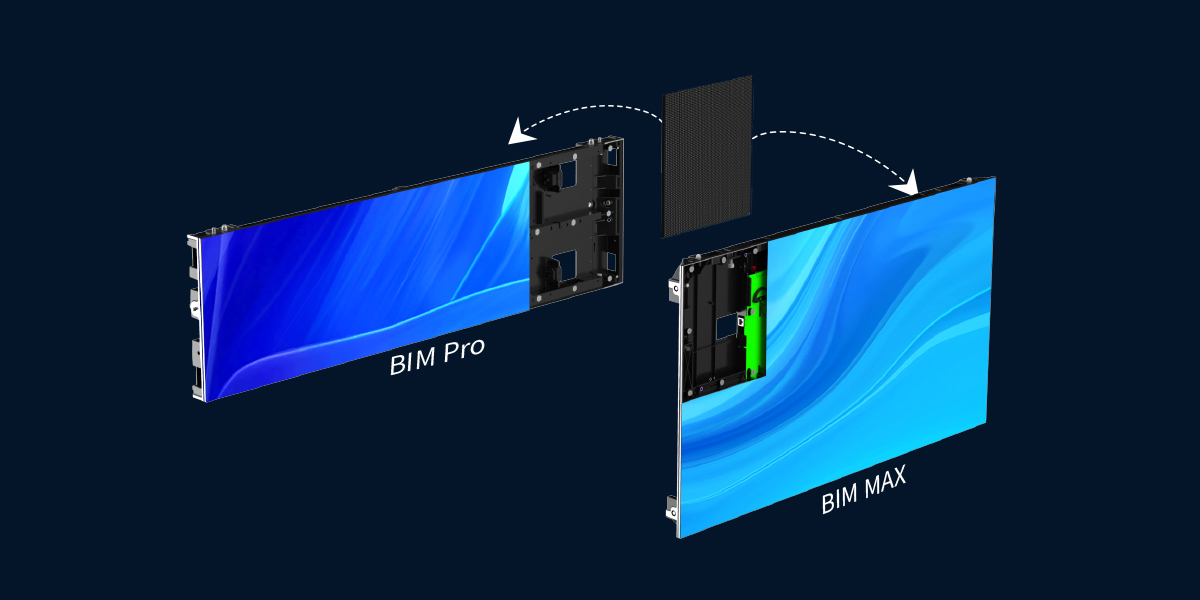

Fully wall-mounted and Front-maintenance


Saves installation space


wall mounted led display

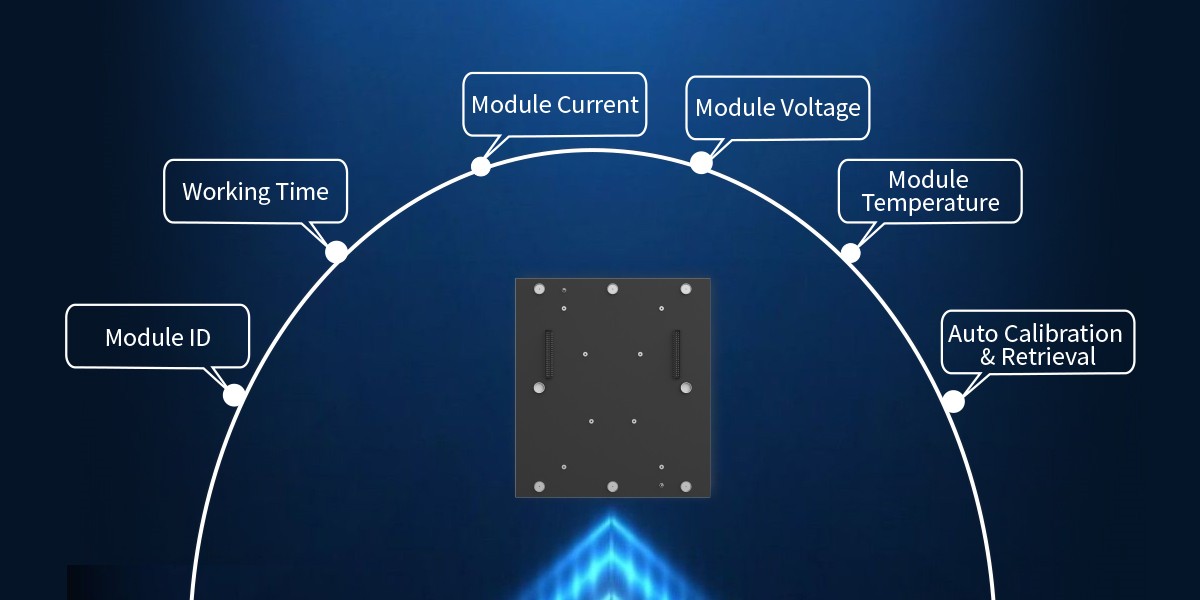

Automatically imports data


The module comes with its own calibration data storage, which automatically imports data when it is replaced


indoor fixed led display


Applications


Covering the full range of commercial display scenarios for a wider range of applications


small pitch led screen

Parameters

Model BIM Max 1.6 BIM Max 1.9 (HCC)
BIM Max 1.9
BIM Max 2.6
BIM Max 4
Pixel Pitch 1.6
1.96
1.96
2.67
4
Pixel Density(dot/m2) 390625
257433
255669
140625
62500
LED Type SMD1010
MINI LED
SMD1515
SMD2121
SMD2121
Module Size(mm*mm) 256*288
256*288
256*288
256*288
256*288
Cabinet Size(mm*mm*mm) 1024*576*44
1024*576*44
1024*576*44
1024*576*44
1024*576*44
Cabinet Weight(±0.25kg) 12
12
12
12
12
Cabinet Resolution(px*px) 640*360
520*292
520*290
384*216
256*144
Module Resolution(px*px) 160*180
130*146
130*145
96*108
64*72
Horizontal Viewing Angle(Deg) 140
140
140
140
140
Vertical Viewing Angle(Deg) 140
140
140
140
140
Brightness(cd/m2) 600
600
600
800
800
Gray Scale(bit) 14
14
14
14
14
Refresh Rate(Hz) 3840
3840
3840
3840
3840
Max Power Consumption(W) 456
228
228
228
228
Average Power Consumption(W)
182
91
91
91
91
Ingress Protection IP20
IP20
IP20
IP20
Working Environment Indoor
Indoor
Indoor
Indoor
Indoor
      Certifications
CE/FCC/EMC
CE/FCC/EMC
CE/FCC/EMC
CE/FCC/EMC
CE/FCC/EMC
