Considerate Details
Various Installation in High Efficiency
Mixed Splicing, High Practicality
Creative Splicing, Beyond Imagination
Friendly Front Maintenance
Advanced Technologies, Outstanding Performance
Product Origin:
ChinaShipping Port:
ShenzhenMOQ:
1Warranty Period:
2 YearsCertificates:
ETL、FCC、CE、EMCStock:
Available in Both Shenzhen & Branch WarehouseGlobal Branch & Office:
Netherlands/Dubai/Japan/IndiaAftersale Service:
Provide Global After-Sale Service

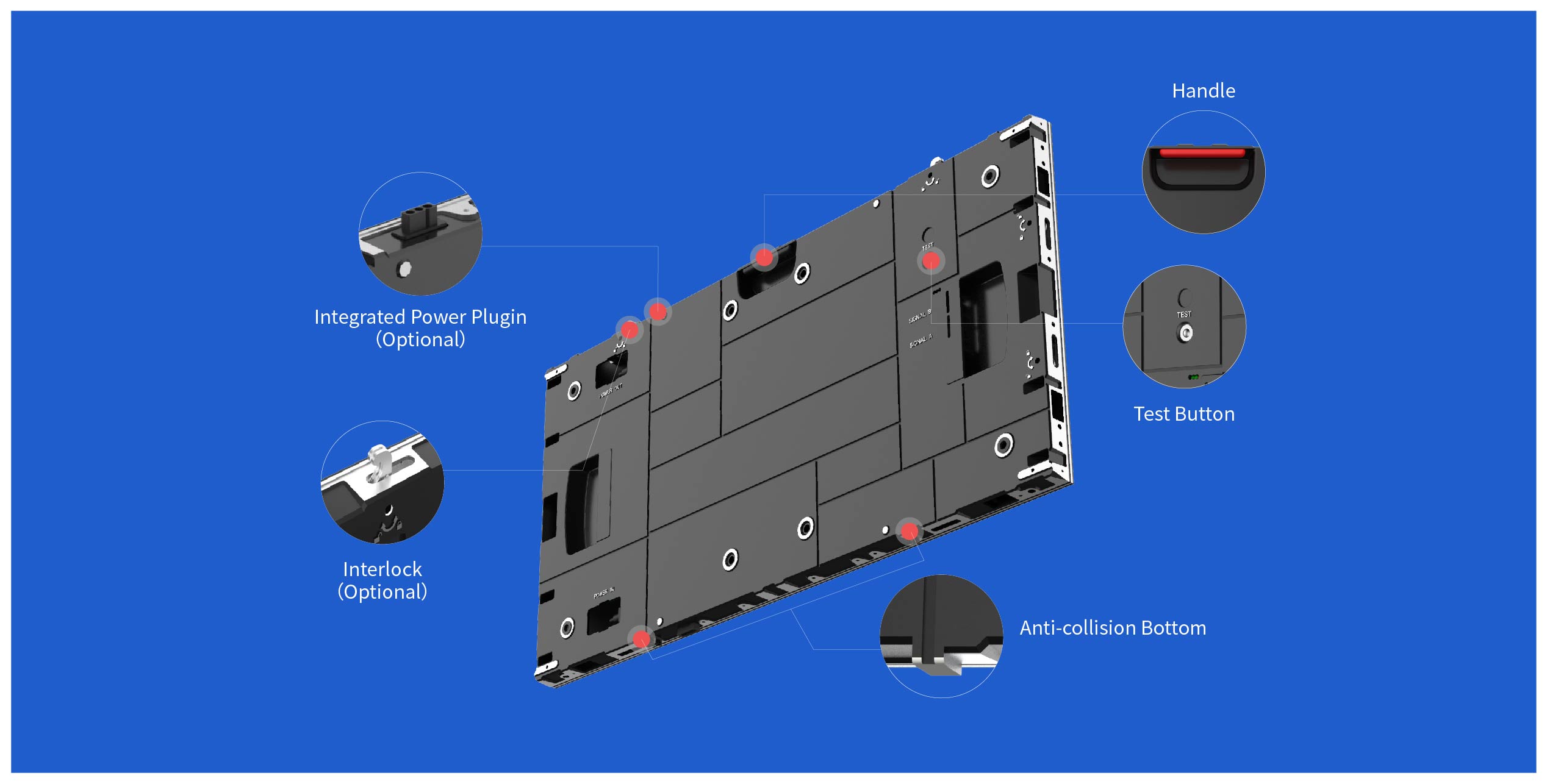

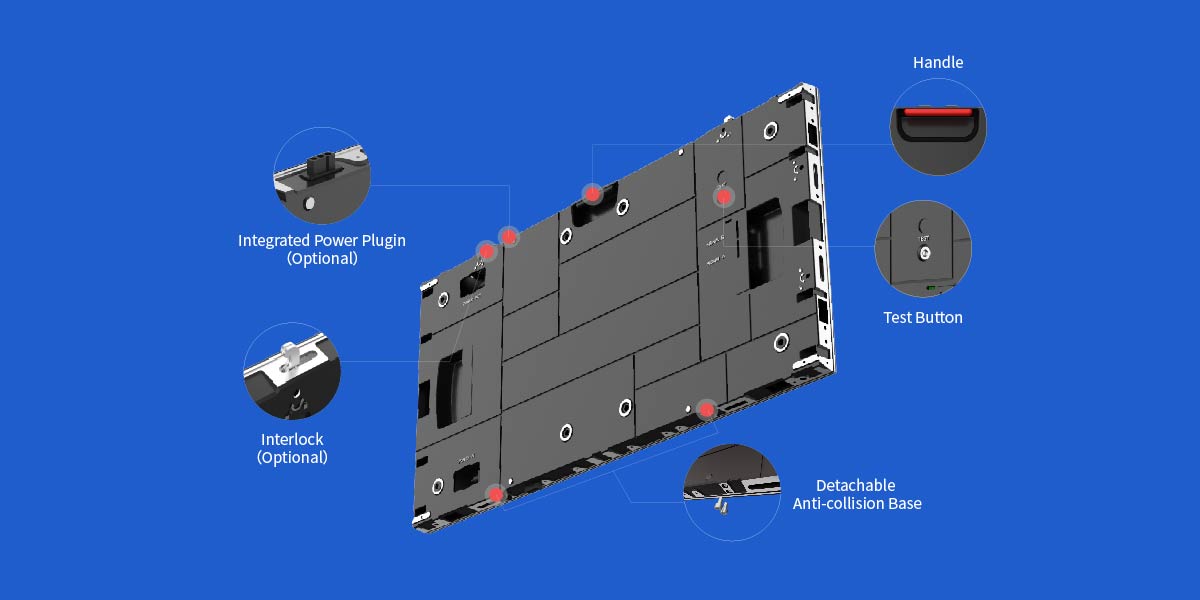

Considerate Details

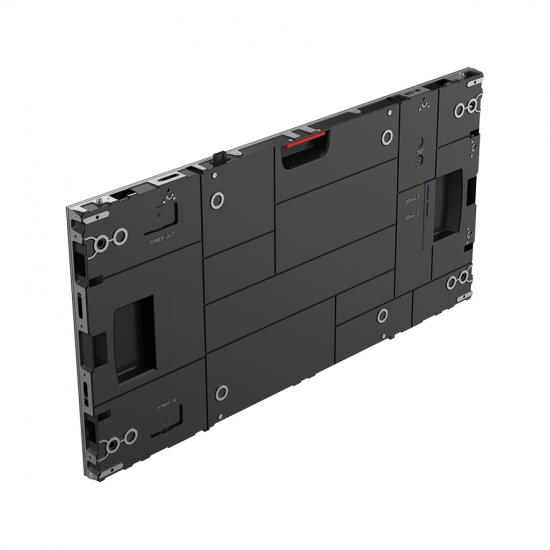

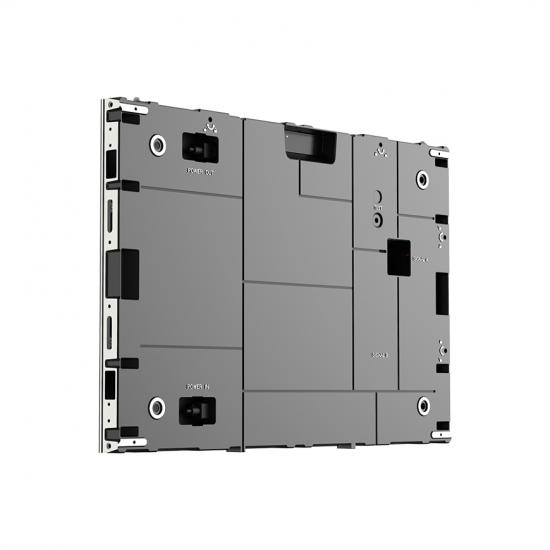

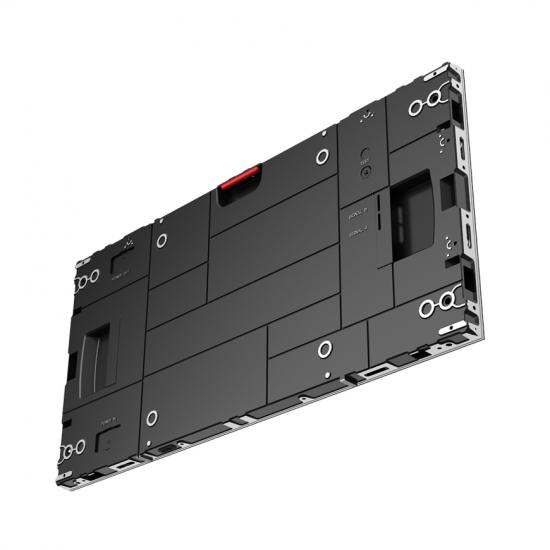

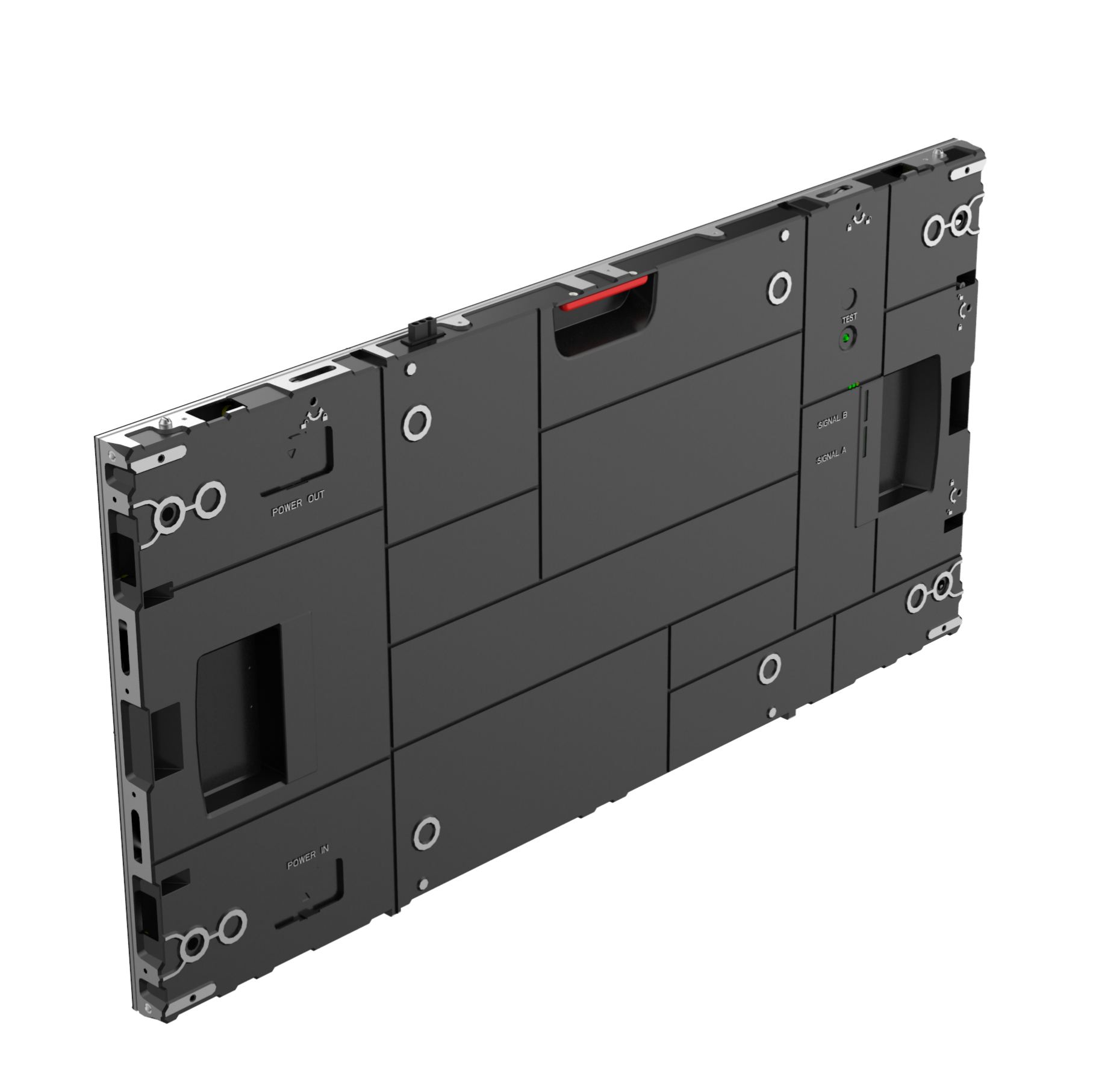

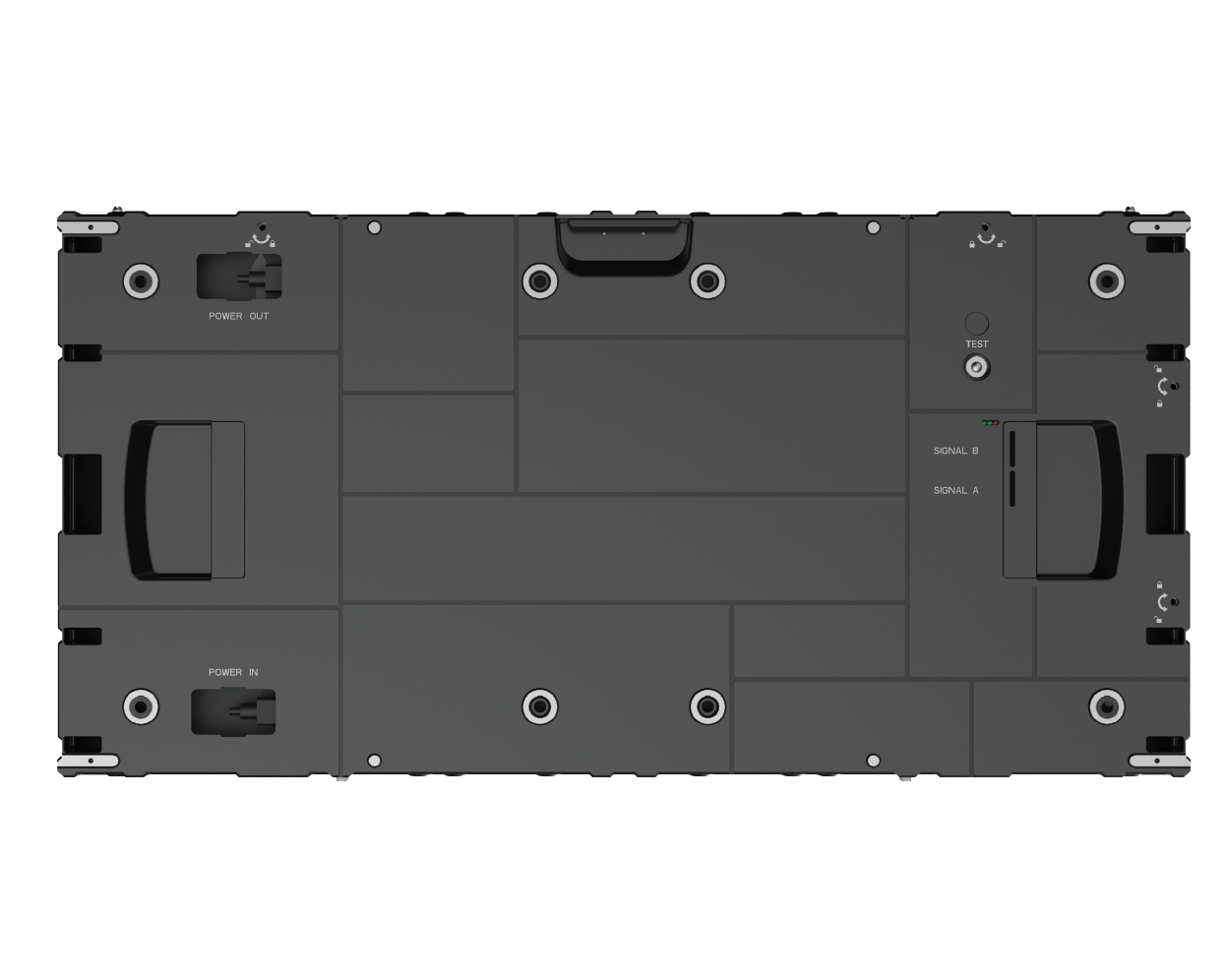

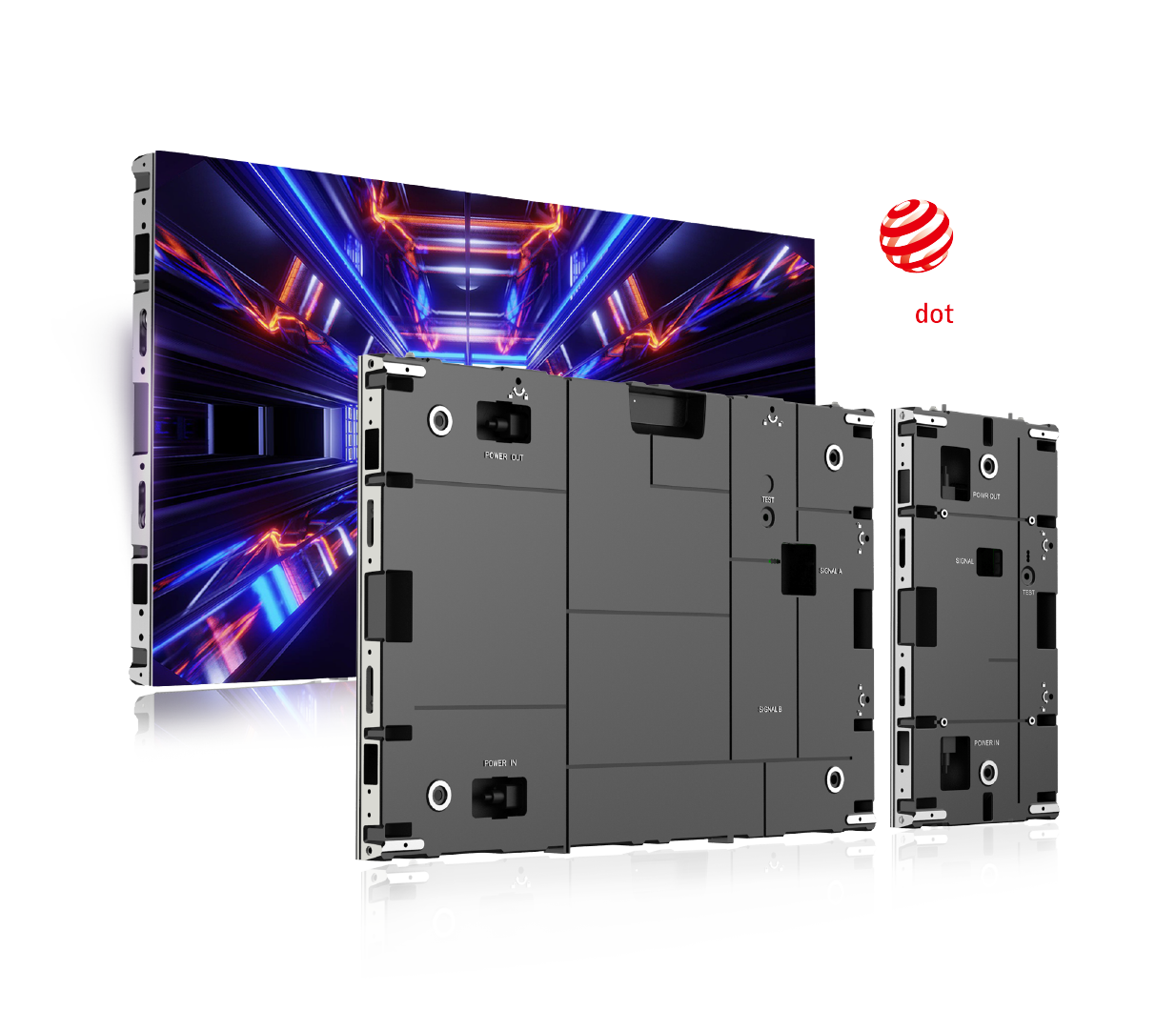

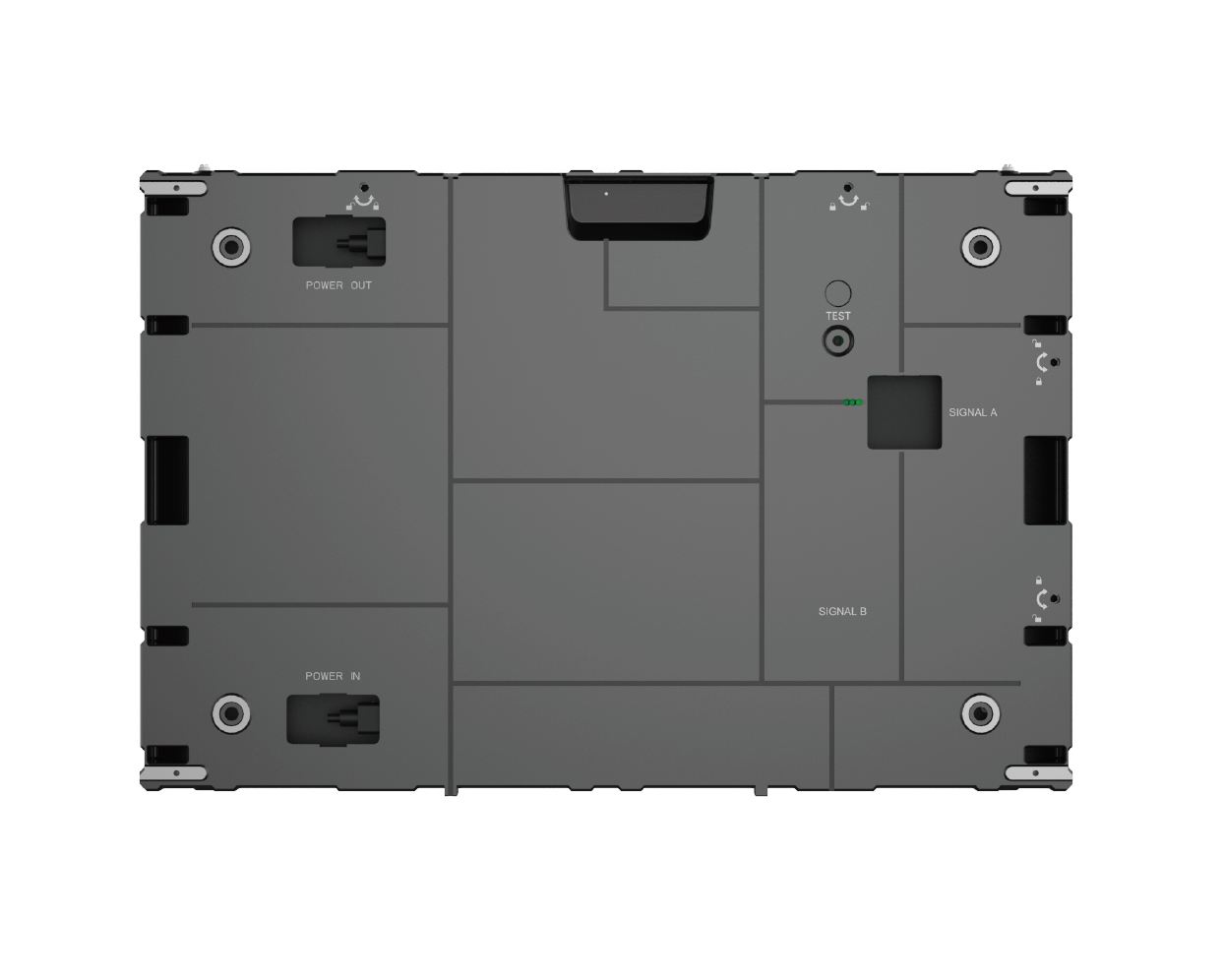

Upgraded one-piece molding die-cast BIM Plus-X cabinet features more ergonomic product details to elevate
customer experience.

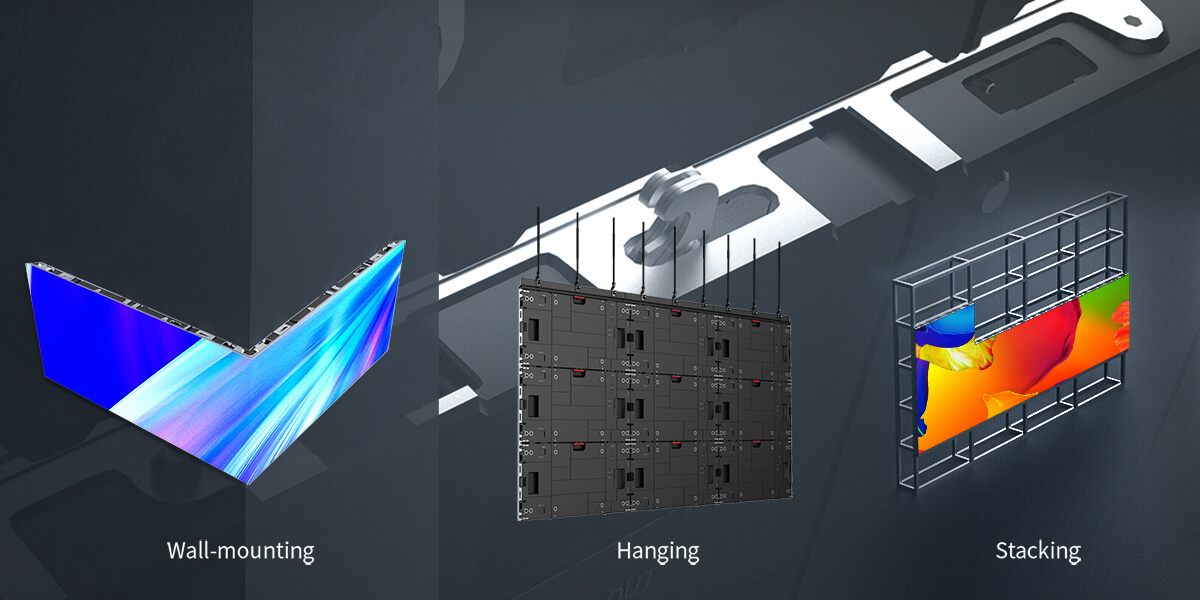

Various Installation in High Efficiency
Thinner & lighter high-precision cabinets feature interlocks to facilitate fast installation like direct wall mounting, hanging & stacking.

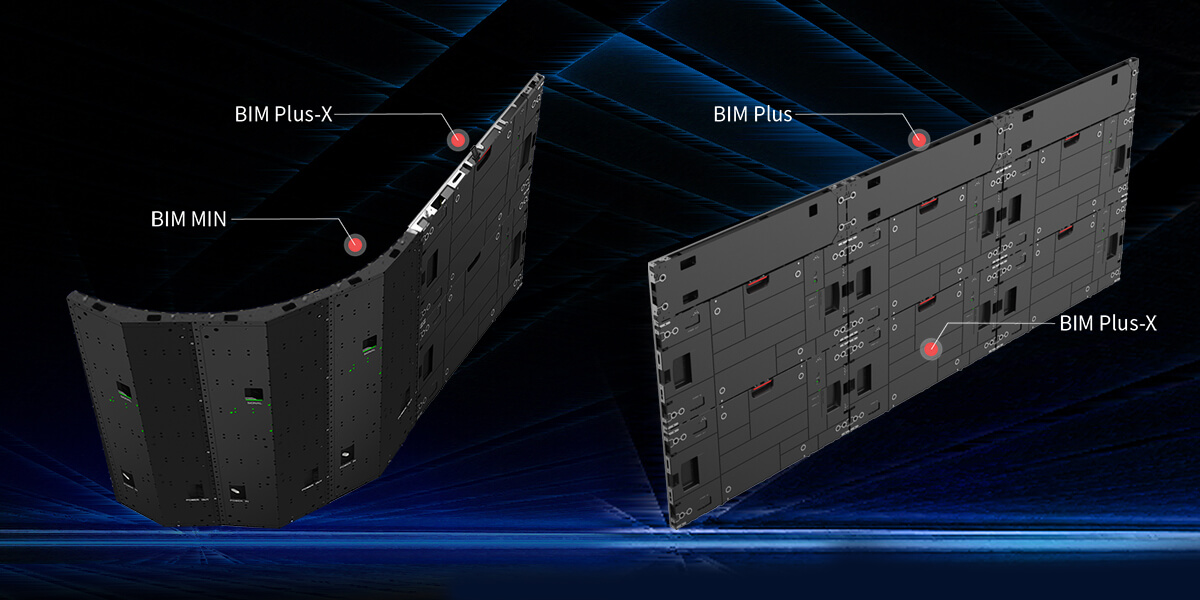

Mixed Splicing, High Practicality
BIM Plus-X Series supports up-and-down mixed splicing of BIM Plus Series, sharing common modules; and
left-and-right mixed splicing with BIM MIN Series, offering higher flexibility.

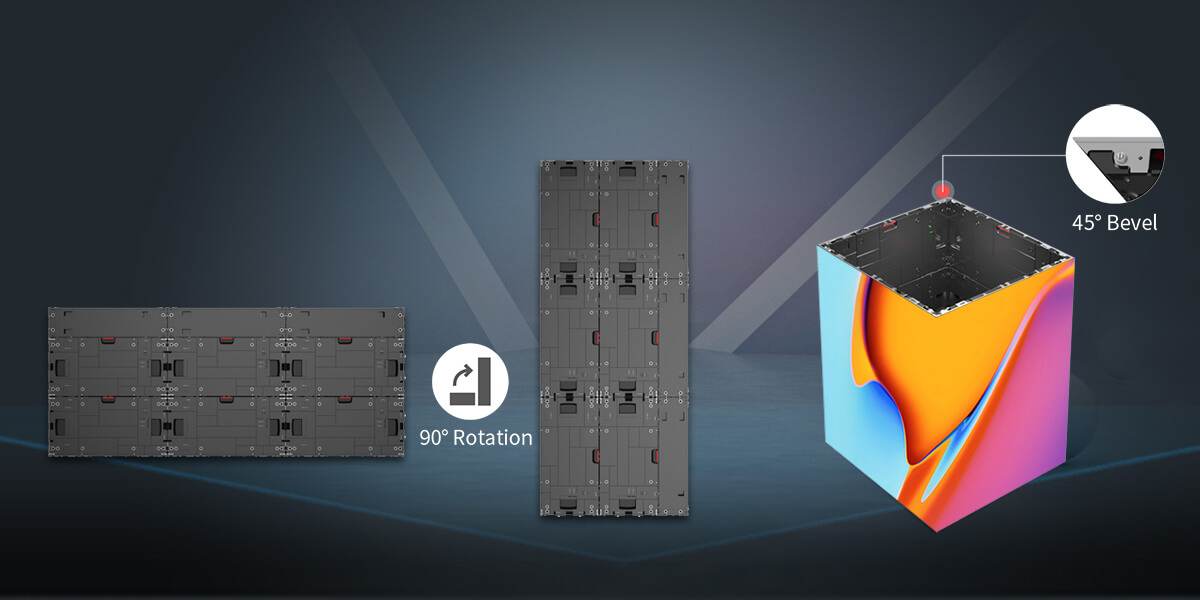

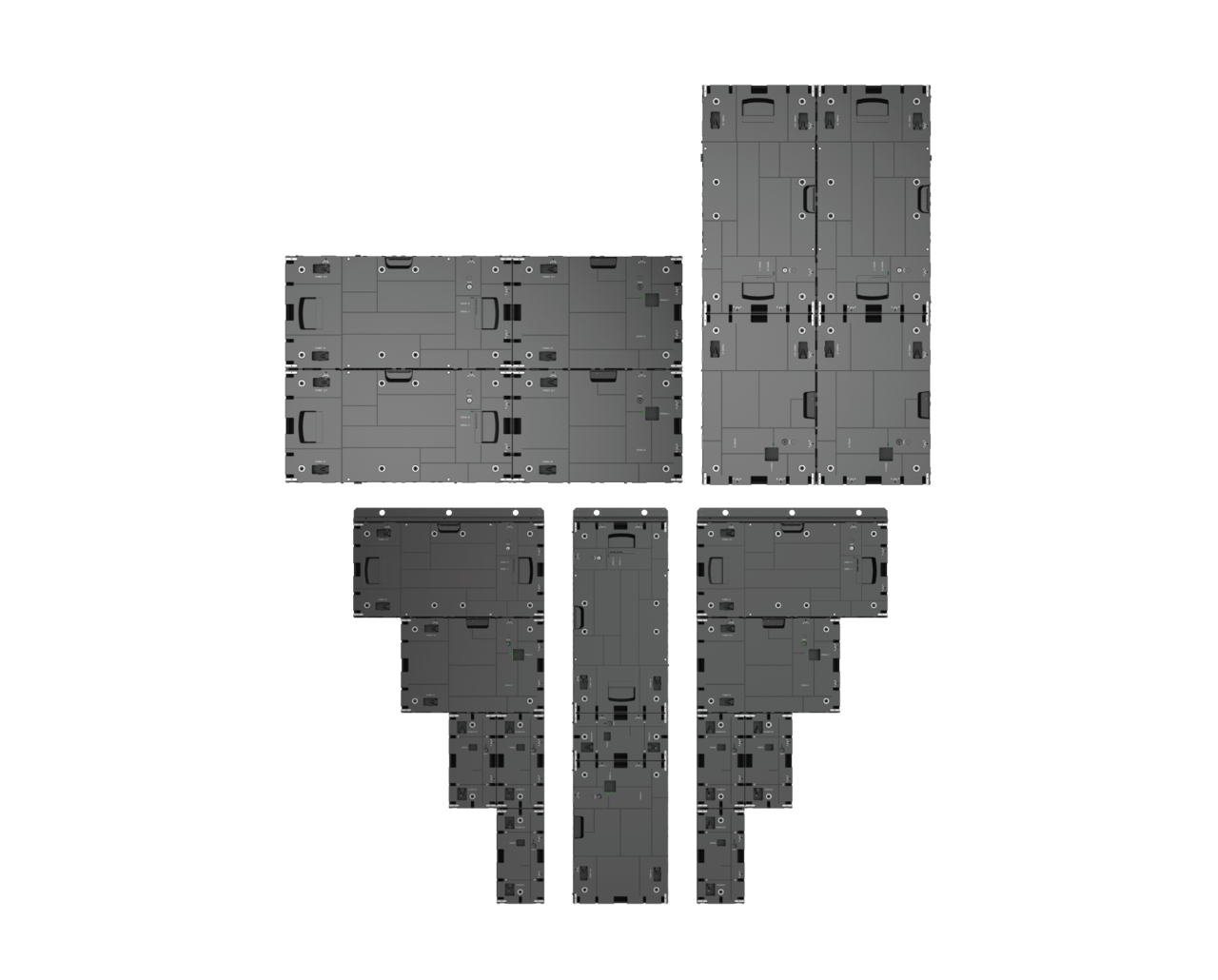

Creative Splicing, Beyond Imagination
BIM Plus-X allows 90° rotation without color cast and multiple creative seamless splicing including L shape,
cube, concave & convex, etc.

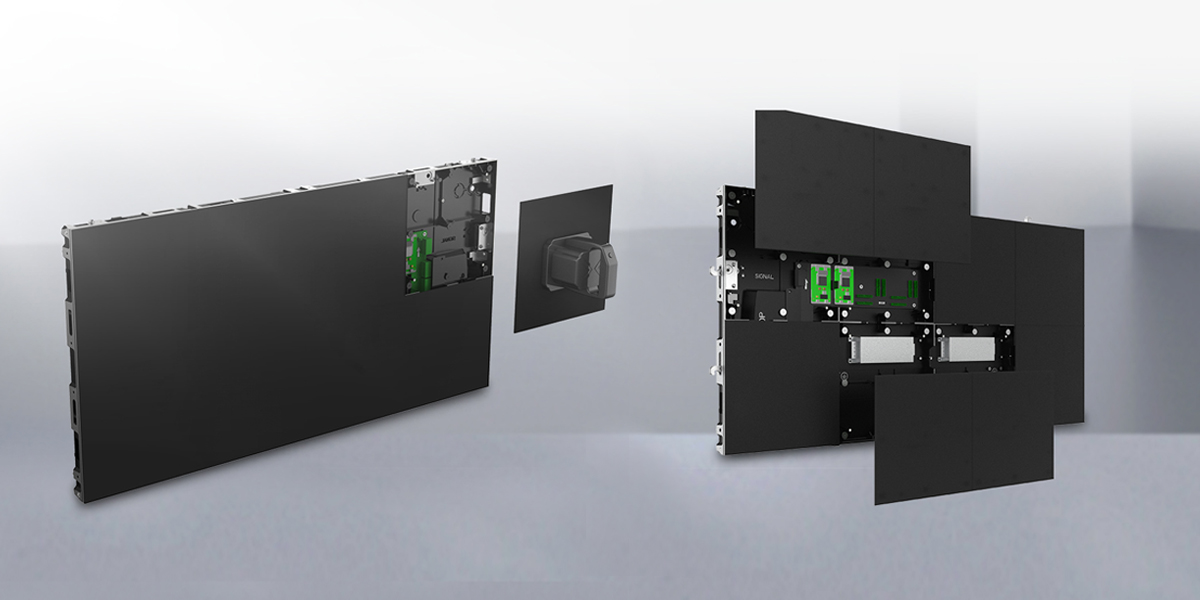

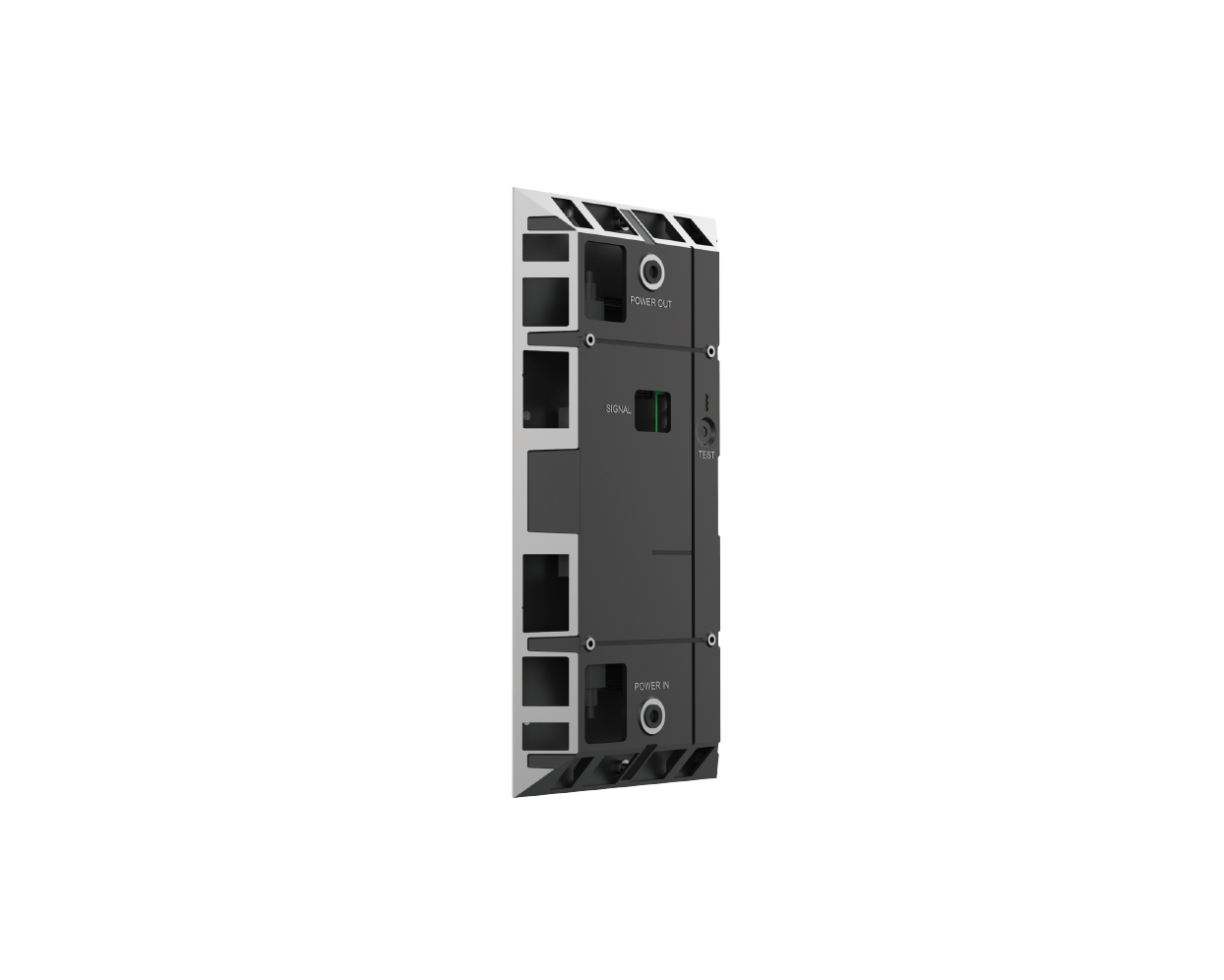

Friendly Front Maintenance
Power supply, hub card and modules can all be maintained from the front to save your space.

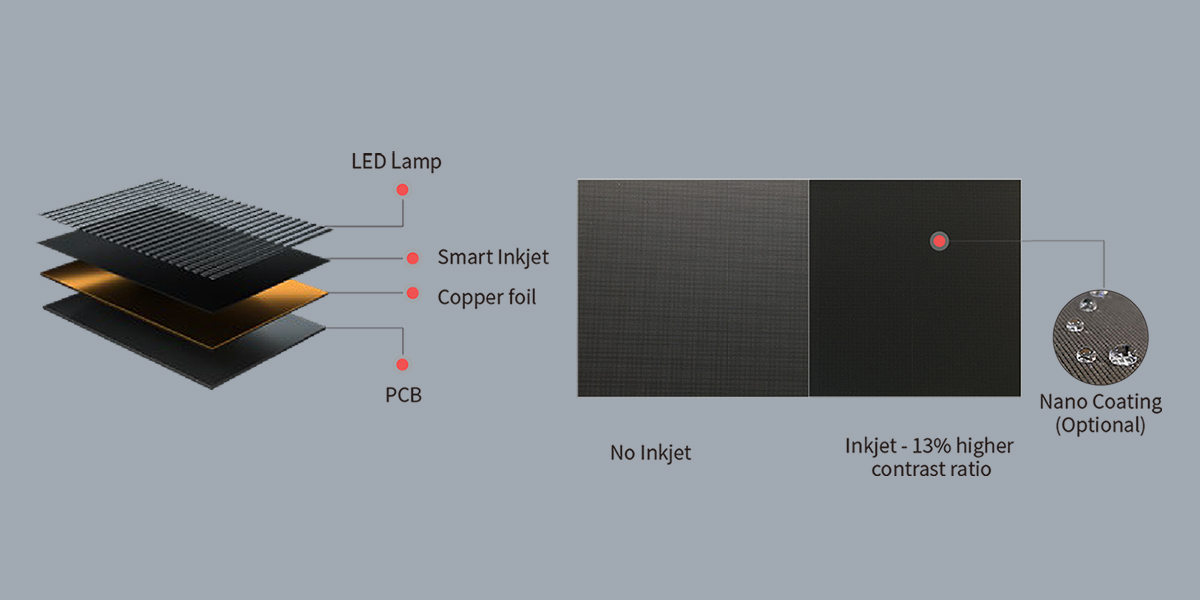

Advanced Technologies, Outstanding Performance
Patented smart inkjet craftsmanship allows vibrant and sharp presentation in higher contrast ratio; Unique
nano coating provides higher protection against blind lamps, LED caterpillars, etc.
| Model | BIM Plus-X1.9 |
BIM Plus-X2.6 |
BIM Plus-X3.1 |
BIM Plus-X3.9 |
BIM Plus-X5.2 |
| Pixel Pitch | 1.9 | 2.6 | 3.1 | 3.9 | 5.2 |
| Panel Resolution | 512*256/384*256 |
384*192/288*192 |
320*160/240*160 |
256*128/192*128 |
192*96/144*96 |
| Panel Size (mm) | 1000*500*42 / 750*500*42 | ||||
| Weight (Kg/Panel) | 20 | ||||
| Brightness (nits) | 800 | 800/3000 |
1000/3000 |
1000/3000 |
1000/3000 |
| Panel Material | Aluminum Alloy | ||||
| Serviceability | Front | ||||
Project Type: Indoor Product Series: BIM Plus P3.9 Project Address: Singapore Project Date: 2018.11 Project Area: 18 ㎡
Project type: Indoor Product: BIM Plus P2.6 Project Address: America Project Date: 2020 Project Area: 70㎡
Project type: Indoor Product: BIM Plus P3.1、DAZZLE Plus P7.8 Project Address: ShenZhen，GuangDong，China Project Date: 2018.9 Project Area: 39㎡

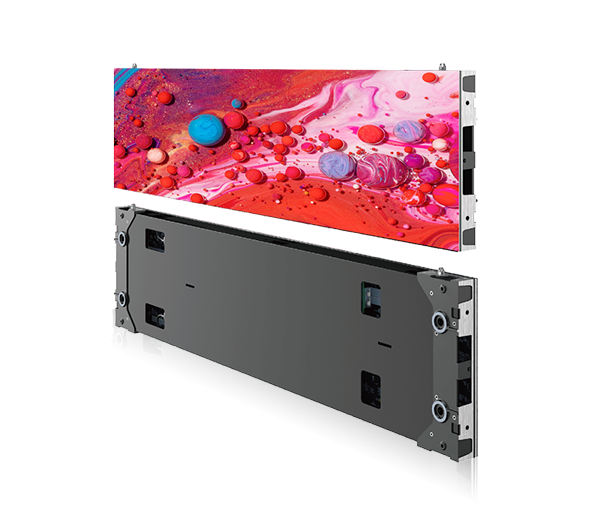

Esdlumen BIM Plus is one of the most popular products in the led display market, it supports 3840Hz high refresh rate, supports 160 horizontal viewing angle, supports 90 right angle splicing, which is the killer products for indoor installation environment. For the past year, our BIM Plus products were exported to all over the world, and applied for many Projects.
1. Golden ratio 16:9; 2. Ultra-thin and ultra-light, efficient for maintenance and installation; 3. Fully wall-mounted; 4. Front maintenance; 5. Automatically imports data when it is replaced
1. Strong Load-Bearing Capacity； 2. Size Customization； 3. All-round Protection； 4. Millisecond-Responding Interation； 5. Flexible Installation, Convenient Maintenance；
1. Thinner, Lighter, and More Pliable； 2. Smooth Splicing, Super-High Flatness； 3. Larger Viewing Angle, Greater Display Performance； 4. Creative As You Want； 5. User-Friedly Maintenance；
1. Impressive High Transparency； 2. Ultra-Thin & Light Design； 3. Customizable Sizes； 4. High Energy Efficiency； 5. User-Friedly Maintenance & Versatile Installation；
1. Extreme-High Transparency； 2. Ultimate Thin & light Design； 3. Superb Flexibility； 4. Easy to Install； 5. Extensive View； 6. Excellent Heat Dissipation；
