1. Fast Installation；
2. Convenient Maintenance；
3. High Stability;
4. Wind Resistance;
5. Curved Splicing;
6. Transportation Solution;
MOQ:
1
Easier & Faster Installation

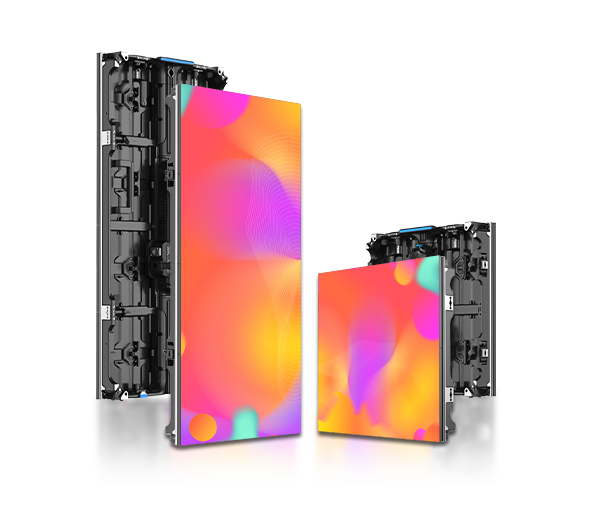

Shine Pro Series with considerate details facilitates high-speed installation & labor-saving set-ups.
Convenient Maintenance
Module: front & rear maintenance
Power supply box: rear maintenance
High Stability

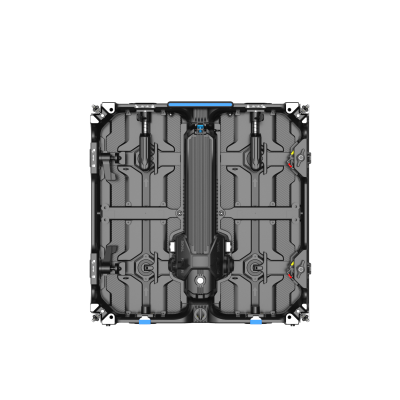

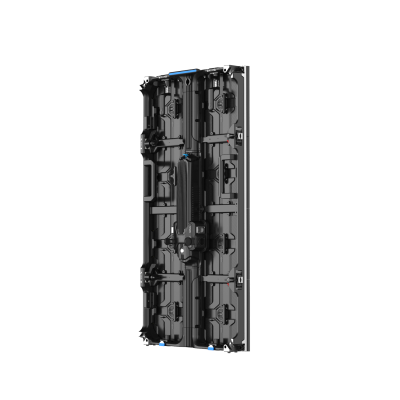

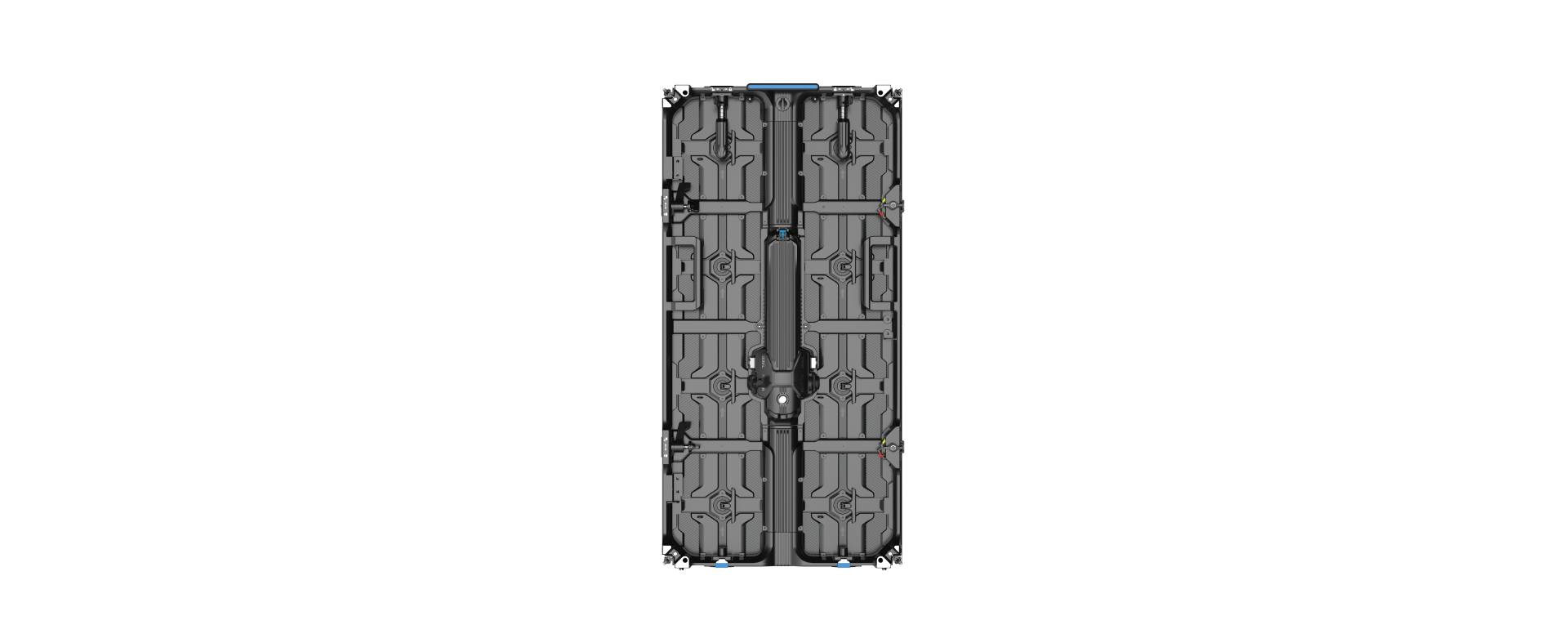

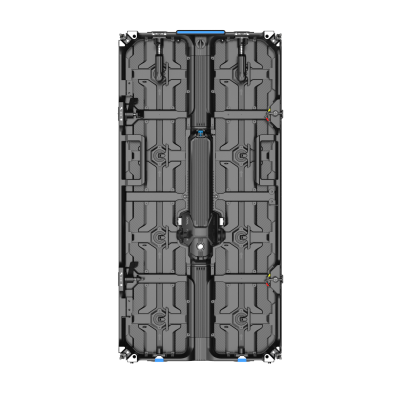

Integrated fully die-casting aluminum panels for high precision
Hanging (TUV tensile test) and stacking (compression test) with 2-in-1 bars
Maximum hanging height is 15m (only panels) and 10m (panels with wind frame)

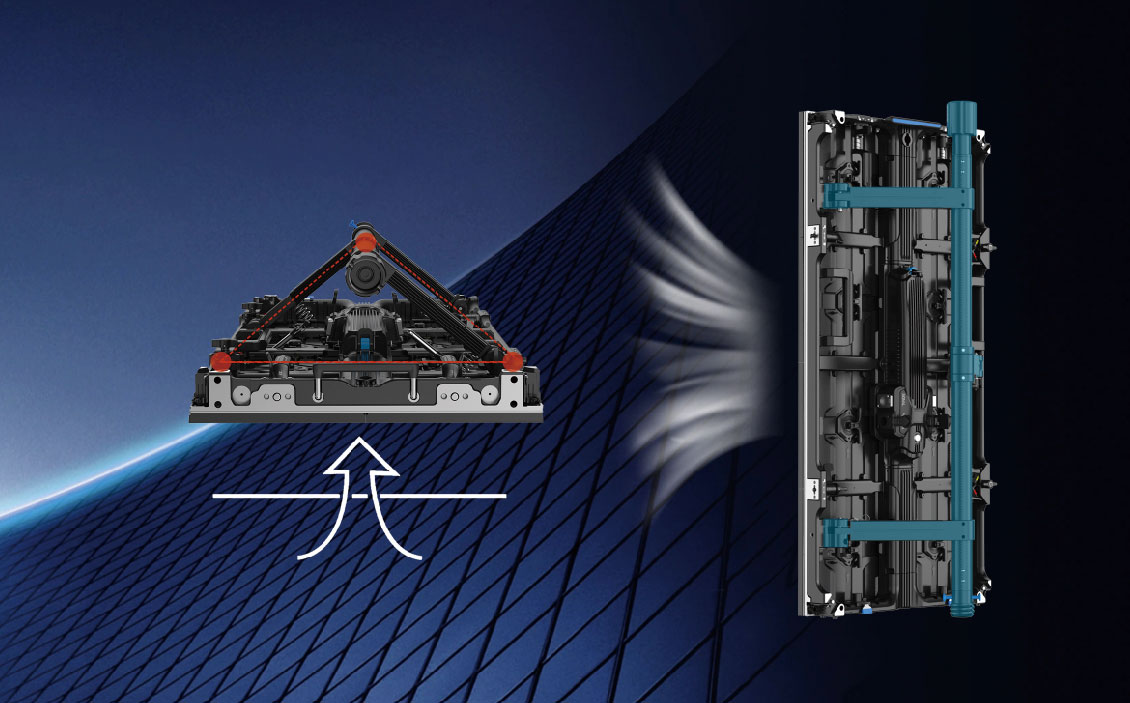

Strong Wind-resistance Frame
TUV Wind Resistance Test (Typhoon Level 8, Wind Speed 20m/s)
Avoid screen’s swinging while hanging
Climbable aluminum-alloy wind-resistant frame can also serve as stacking frame
Seamless Curved Splicing
Arc lock eliminates visible gaps for flawless visuals
Convenient Transportation & Installation Solution
Dolly solution: weight 75kg with 12 panels capacity
A 40HQ(High Cube) container holds 40 dollies, each carrying 12 panels, totaling 480 panels
per container
| Model | Shine Pro2.9 |
Shine Pro3.9 |
| Pixel Pitch (mm) | 2.9 | 3.9 |
| Panel Size W*H*D (mm) | 500*500*74/500*1000*74 |
500*500*74/500*1000*74 |
| Panel Resolution W*H (dots) | 168*168/168*336 |
128*128/128*256 |
| Panel Material |
Die-Casting Aluminum
|
Die-Casting Aluminum
|
| Panel Weight (Kg/pc) |
8.7/14 Kg (single panel); 11.1/17.5Kg (panel with wind-resistant frame) |
8.7/14 Kg (single panel); 11.1/17.5Kg (panel with wind-resistant frame) |
| Brightness (cd/㎡) | 4500 | 5000/4000 (Black LED) |
| Serviceability |
Front & rear maintenance (module); Rear maintenance (power supply)
|
Front & rear maintenance (module); Rear maintenance (power supply)
|
Project type: Indoor Product: VA P1.4、VHII P1.4、 LED Floor Tile P2.5 Project Address:Guangdong Project Date: 2019 Project Area: 190㎡
Project Type: Indoor Product Series: VF P1.5、VAII P1.5 Project Address: USA Project Date: 2021 Project Area: 25㎡、10㎡ NEWS:https://www.esdled.com/liantronics-fine-pitch-led-video-walls-renewed-nbc-washington-studios_n219
Project type: Indoor Product: VMQ P2.5 Project Address: Dongguan, Guangdong Project Date: 2021 Project Area: 105㎡
Esdlumen BIM Plus is one of the most popular products in the led display market, it supports 3840Hz high refresh rate, supports 160 horizontal viewing angle, supports 90 right angle splicing, which is the killer products for indoor installation environment. For the past year, our BIM Plus products were exported to all over the world, and applied for many Projects.
BIM Pro is specially designed for indoor fixed led display. Compared with other similar product, the BIM Pro has lightweight and ultral-thin body. With the golden display ratio of 16:9, BIM Pro can provide you a better visual enjoyment.
1. Golden ratio 16:9; 2. Ultra-thin and ultra-light, efficient for maintenance and installation; 3. Fully wall-mounted; 4. Front maintenance; 5. Automatically imports data when it is replaced
1. Curve to Impress 2. Ultra-Slim & Lightweight； 3. Visual Feast for Audience； 4. Total Front Maintenance；
