Fixed LED Display


BIM MIN -Indoor Curved Commercial LED Display

BIM MIN -Indoor Curved Commercial LED Display

1. Curve to Impress

2. Ultra-Slim & Lightweight;

3. Visual Feast for Audience;

4. Total Front Maintenance;

  • MOQ:


Flexible Modules, Smooth Splicing

Seamlessly spliced with Designed with flexible modules, the BIM MIN Series (curved cabinet) achieves more smooth splicing to perfectly adapt to your space.

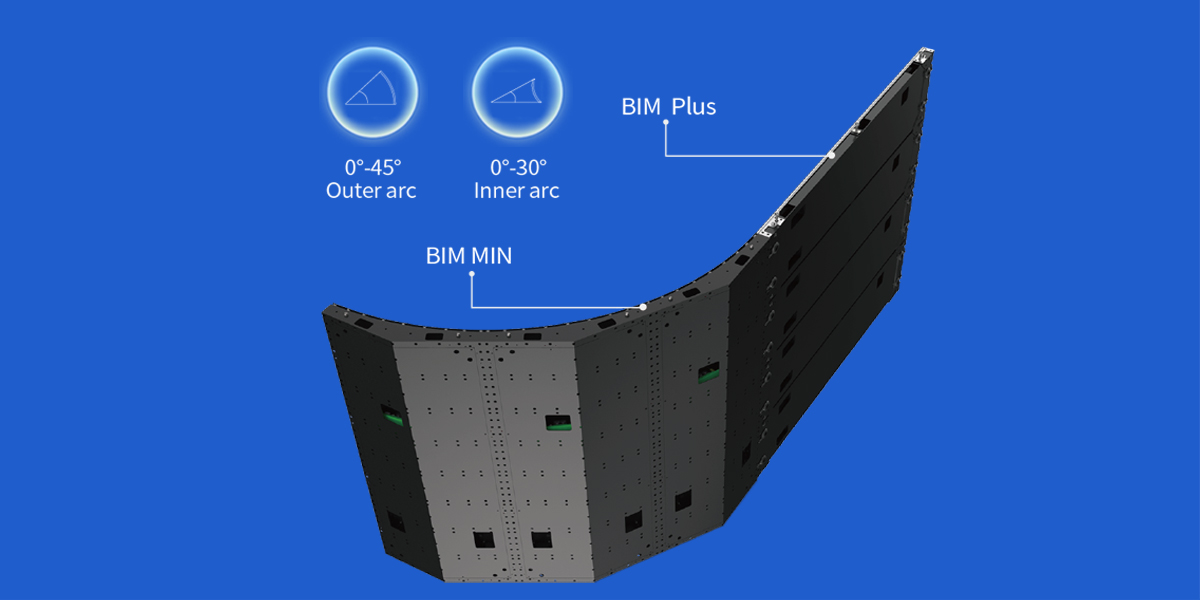

Curve to Impress

To provide more possibilities, BIM MIN Series panels are specially curved into concave, convex, and column shapes.

Mixed Splicing for Unlimited Creative Splicing

The upgraded BIM MIN Series supports seamlessly splicing with the BIM Plus Series, which helps achieve various shapes, such as indoor glasses-free 3D creativity.

Mixed Splicing for “THE WOW” 3D Display

BIM MIN allows a special “W” shape to form the “THE WOW” 3D display, featuring a “W”ave curve, a “W”ow effect, and a “W”ell engage.

Winner of AV Award 2023

LianTronics “THE WOW” 3D display won “Visual Technology of the Year” at the AV Award 2023.

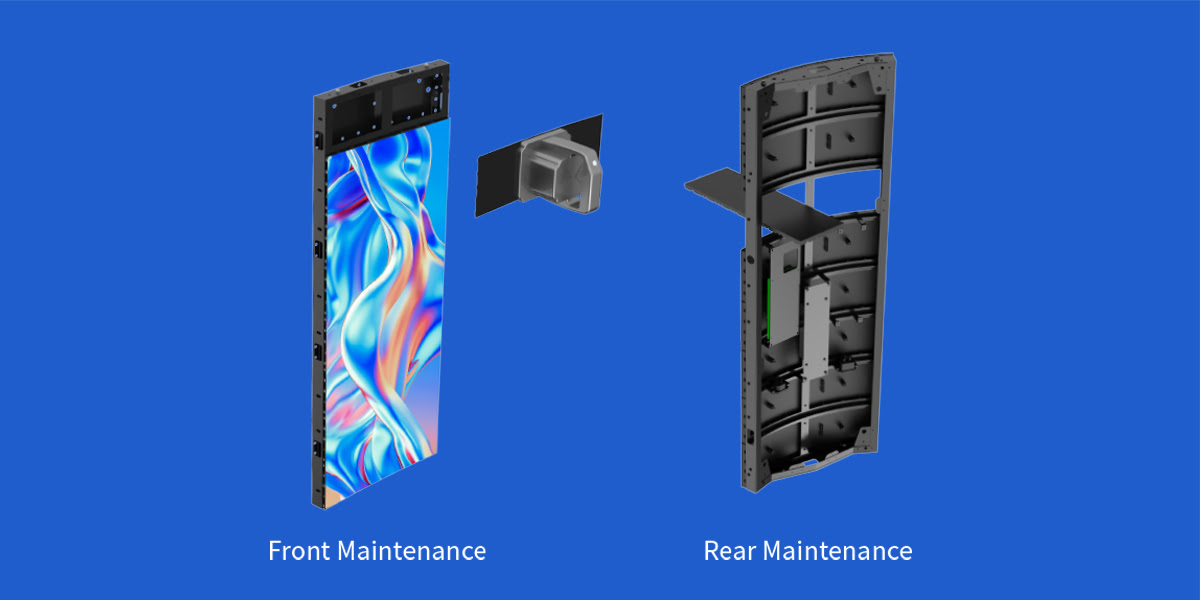

Front & Rear Maintenance

Receiving cards, power supplies, and modules can all be maintained from the front and the rear.

Model BIM MIN1.9 BIM MIN2.6 BIM MIN3.9
Pixel Pitch(mm) 1.9 2.6 3.9
Panel Size(mm) 375*1000*42 / 375*750*42 / 375*625*42 375*1000*42 / 375*750*42 / 375*625*42 375*1000*42 /375*750*42 / 375*625*42
Panel Resolution 192*512/192*384/192*320 144*384/144*288/144*240

96*256 / 96*192 / 96*160

Panel Material Steel Steel Steel
Weight(kg/pc) 9.5/7.5/6.5 9.5/7.5/6.5 9.5/7.5/6.5
Brightness(nits) 900 900/3000 900/3000
Serviceability Front Front Front

  • BIM P1.9 For  Monitoring Command Center, FuTian,ShenZhen,China
    BIM P1.9 For Monitoring Command Center, FuTian,ShenZhen,China

    Project type: Indoor Product: BIM P1.9 Project Address: FuTian,ShenZhen,China Project Date: 2019 Project Area: 30㎡

  • BIM Mini - Flexible Curved Narrow Pixel Pitch LED Display
    BIM Mini - Flexible Curved Narrow Pixel Pitch LED Display
