E-SWAN SERIES
Ultra-Flexible Outdoor Curved LED Display
Click to play
Designated for Endless Creativity

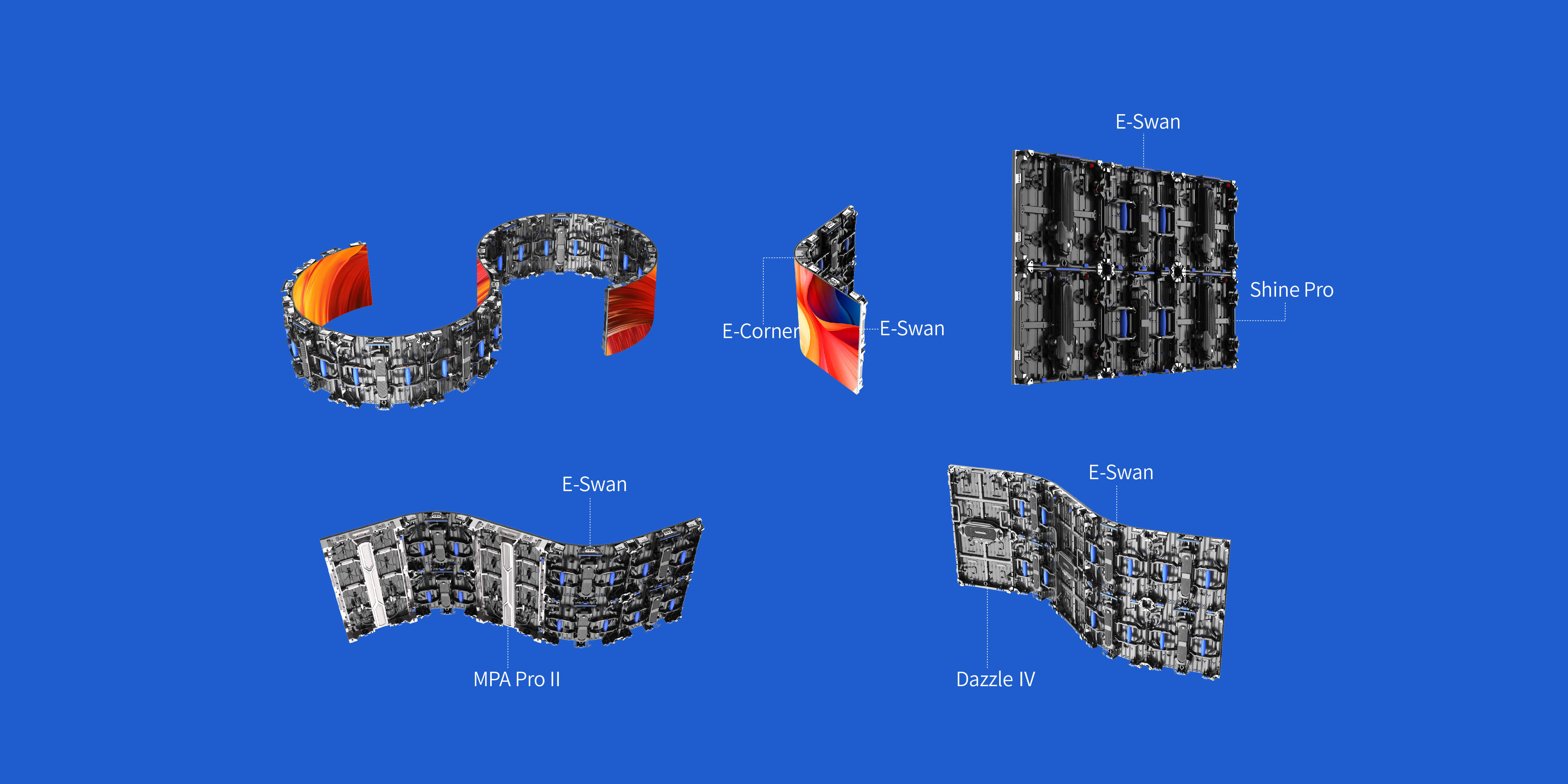

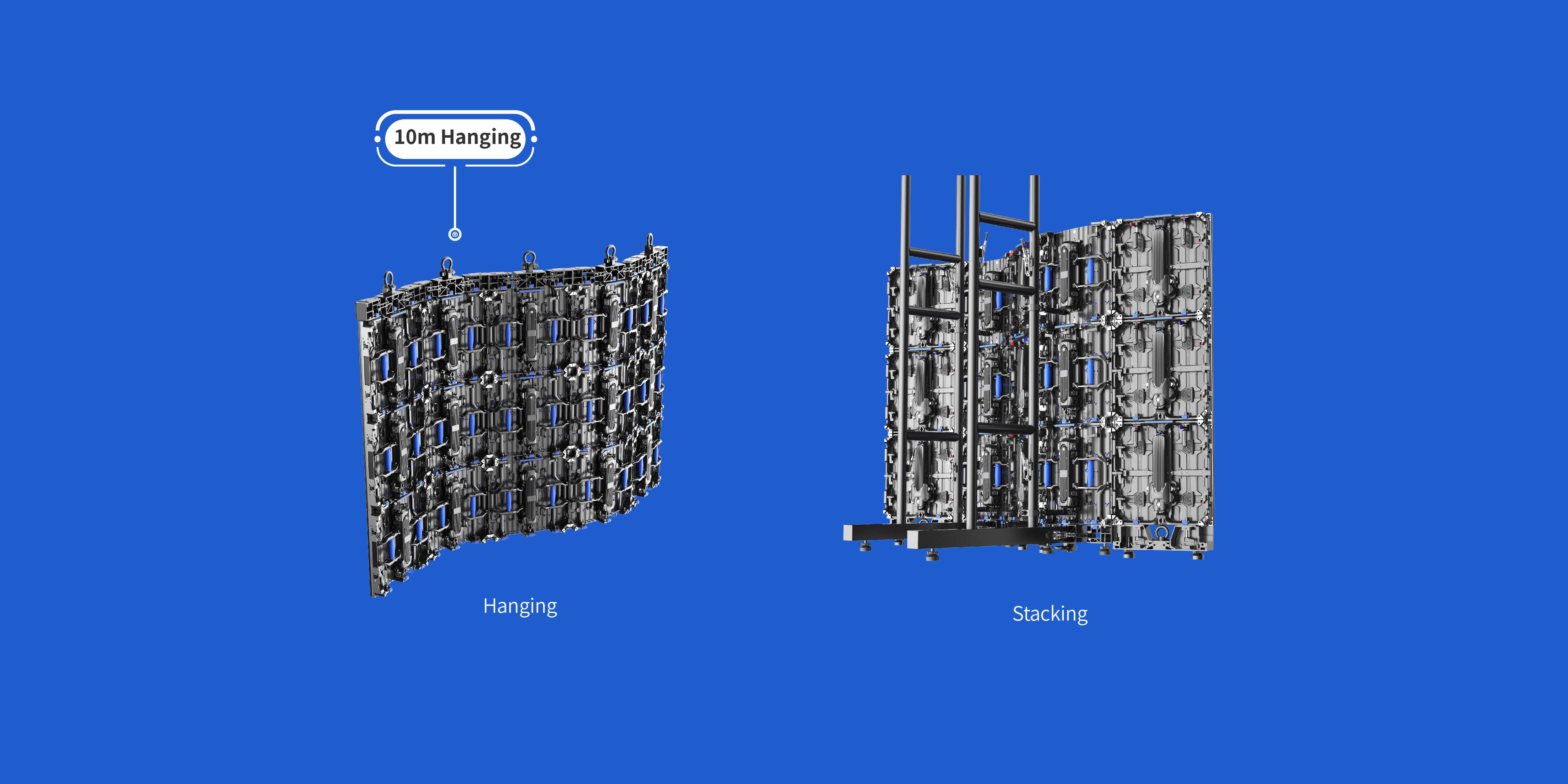

Waves, circles, corners—shape E-Swan your way, from trade shows to city landmarks.
Curved Splicing
Flat Splicing

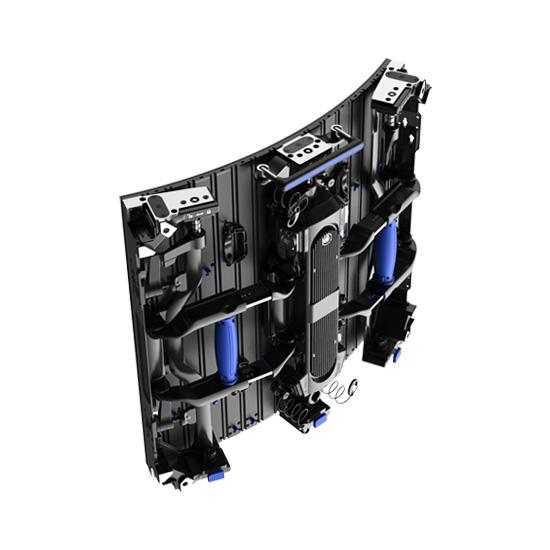

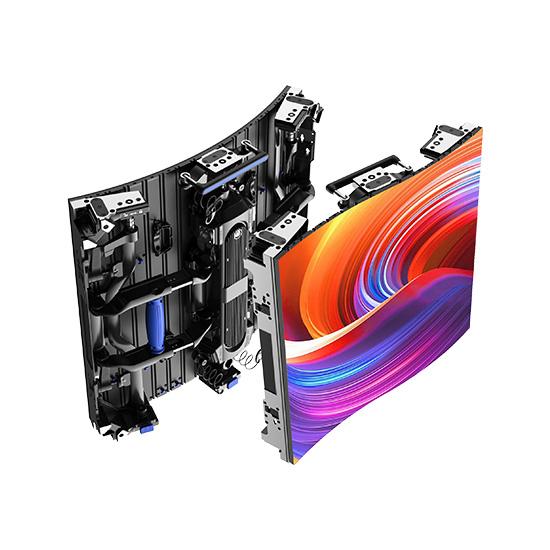

Curved Splicing
E-Swan Outdoor
Large Modules, Seamless Splicing Solution
Craftsmanship protection
HOB TECHNOLOGY
All-round protection
High light extraction efficiency
Eye-friendly

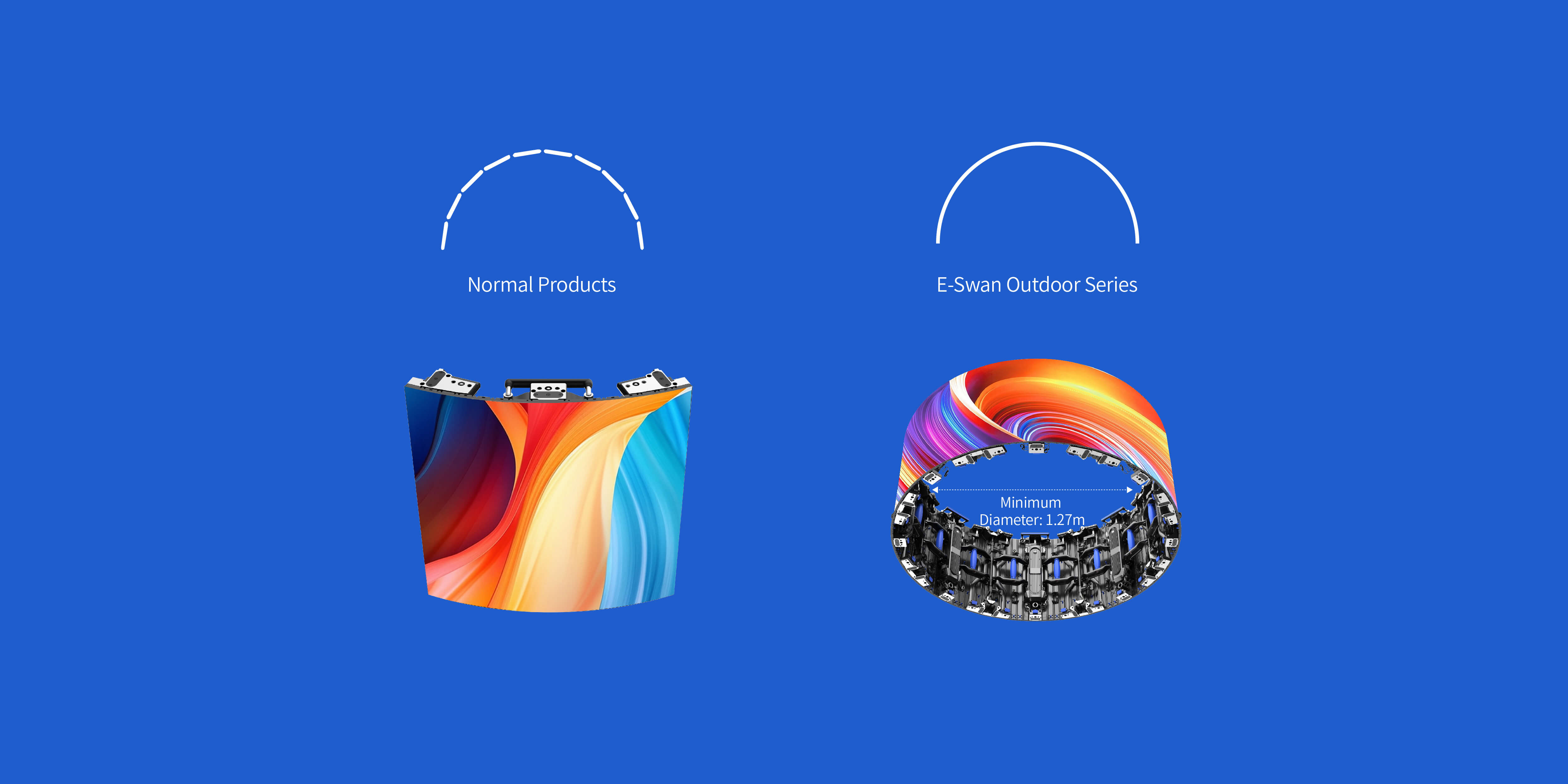

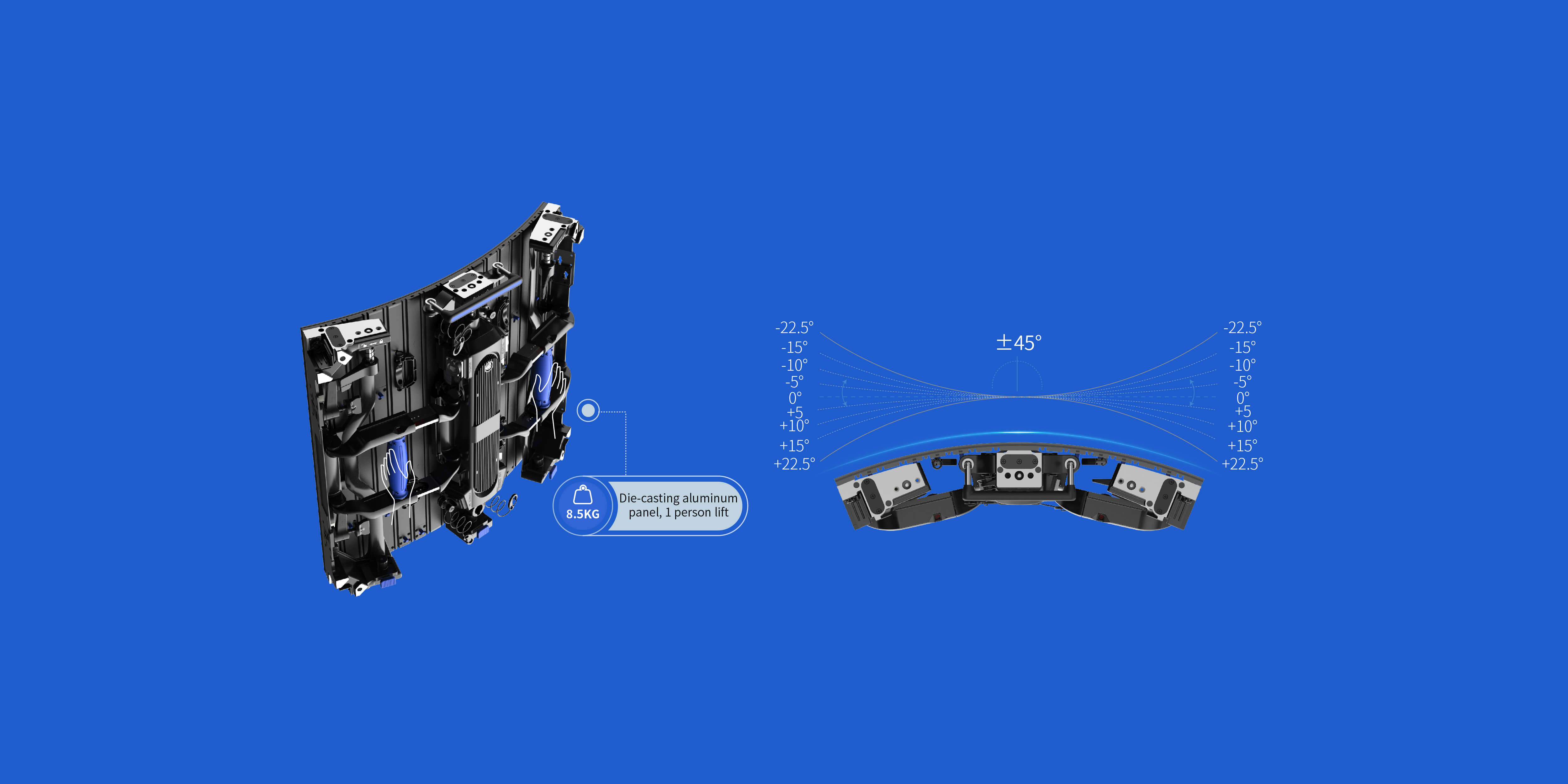

Inventive Smooth Curved Splicing Solution
Support curved shapes such as wave, right-angle corner, cylinder.
SPECIFICATION
Download parameter table
| Model | ES3.9T | |
|---|---|---|
| Pixel Pitch (mm) | 3.9 | |
| Pixel Density (pixels/m²） | 65536 | |
| LED Type | SMD | |
| Panel Size WxHxD (mm) | 500*500*74 | |
| Panel Resolution WxH | 128*128 | |
| Panel Material | Die-Casting Aluminum | |
| Weight (Kg/pc) | 8.5 | |
| Brightness (nits) | 5000 (White) / 3500 (Black) | |
| Viewing Angle (H/V) | 140° / 140° | |
| Refresh Rate (Hz) | 7680 | |
| Contrast Ratio | 6000:1 | |
| Color Temperature (K) | 2000~10000 (Adjustable) | |
| IP Rating | Front IP65 | |
* All specification values given are per panel. The specifications are for reference only, actual values may vary.
