Ultra-slim & Light
MOQ:
1

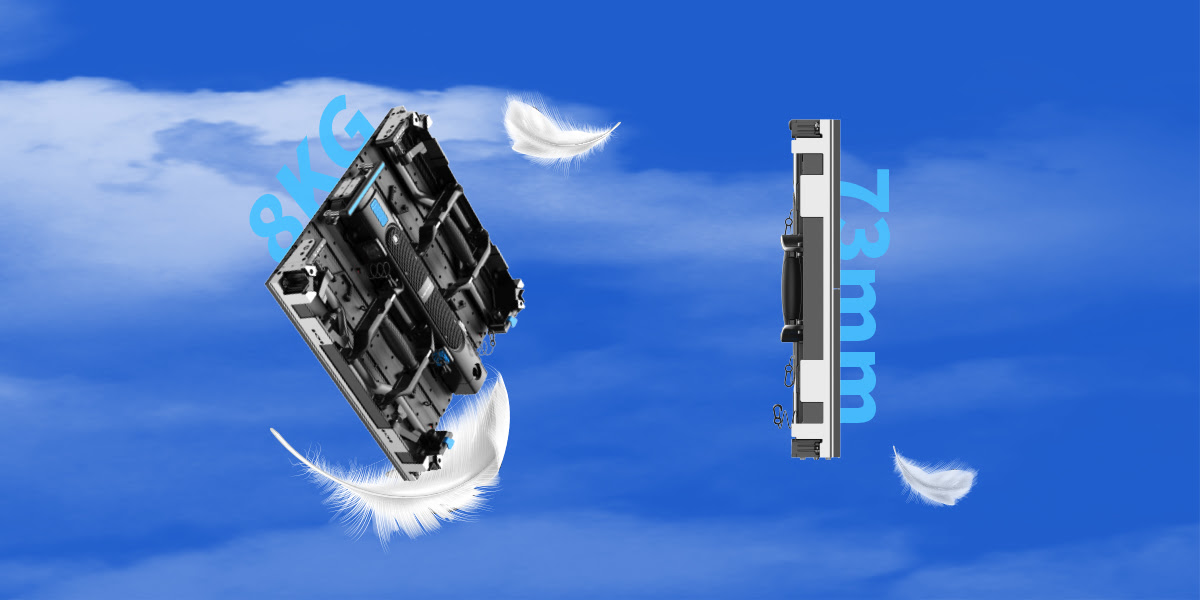

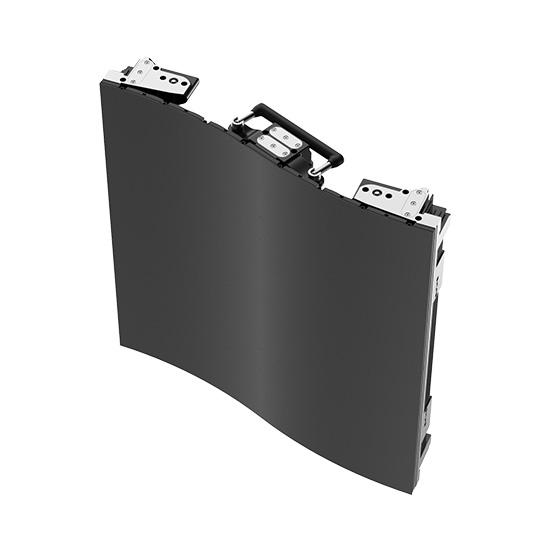

Ultra-slim & Light
E-Swan Series adopts die-casting aluminum panels weighing only 8 kg/pc, and its thickness is 73 mm.

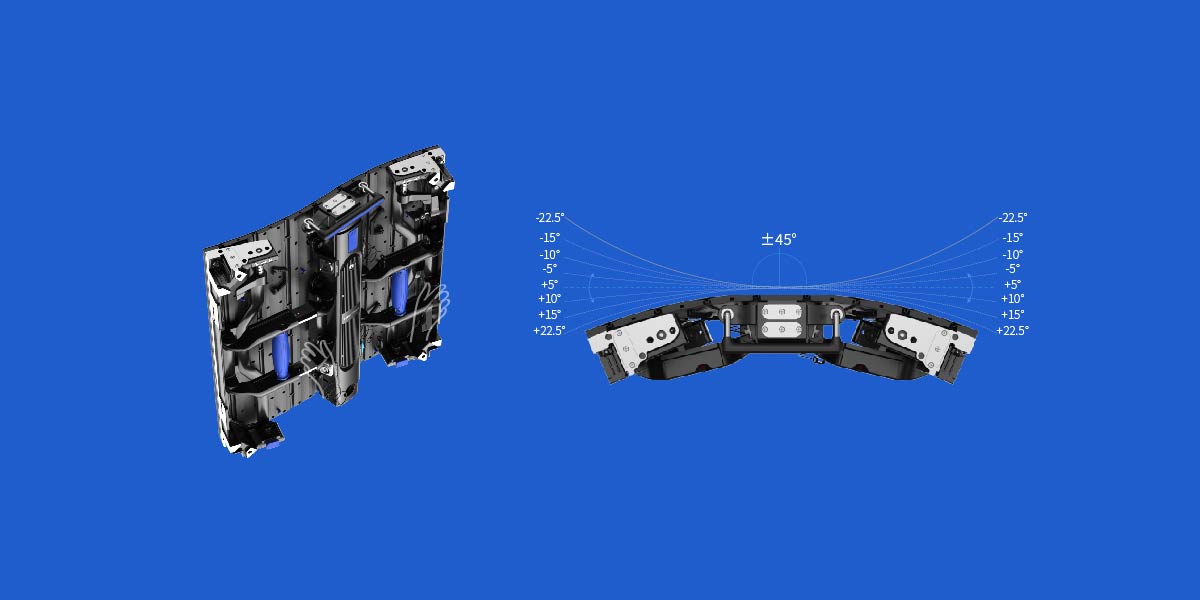

Angle adjustment, Flexible Panels
Press the handle to quickly adjust the angle adjustment for your stages
Single panel has 9 angles of adjustment to choose
Flexible panels allow internal and external arcs of 45°

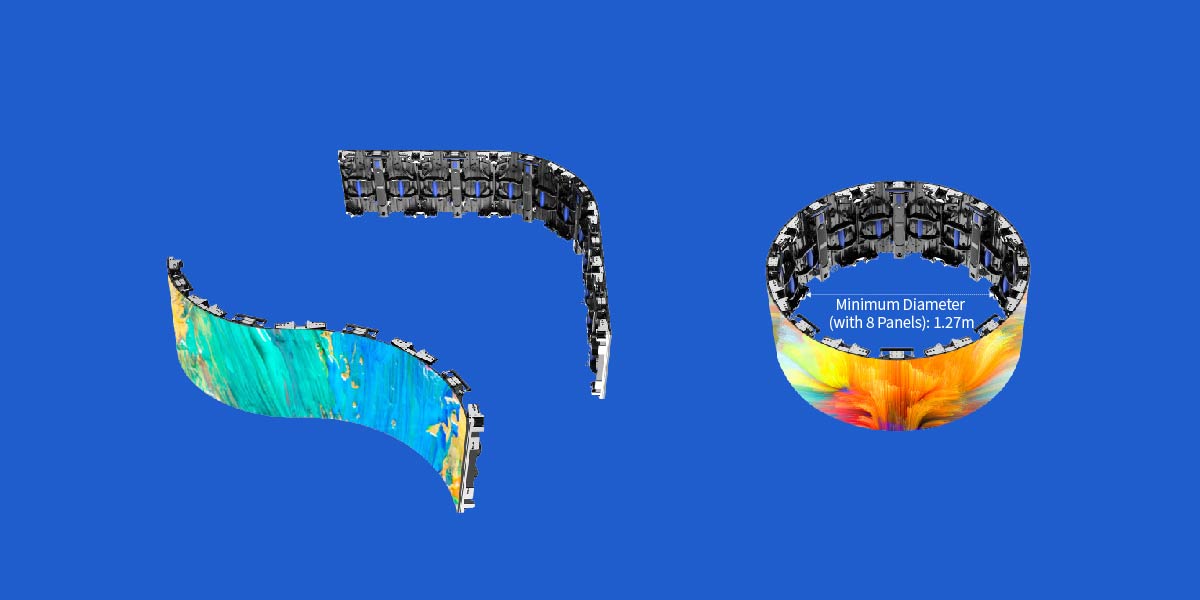

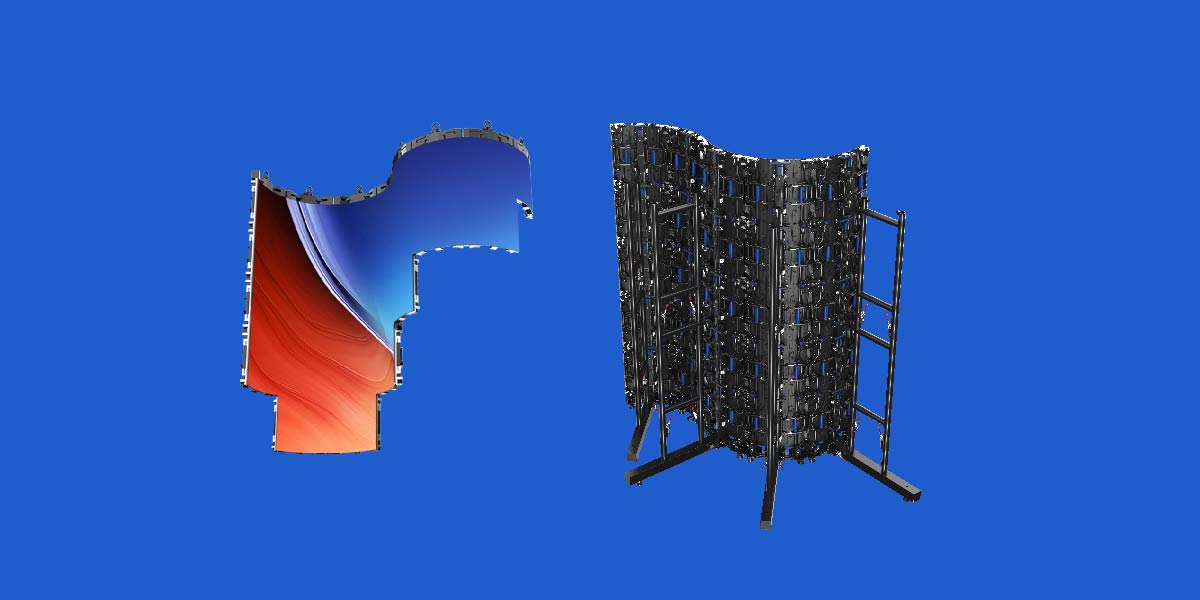

Curved Splicing, Versatile Styles
E-Swan Series supports numerous creative shapes such as waves, arcs, and flat screens. Arcs need only 8 panels with a minimum diameter of 1.2 m.

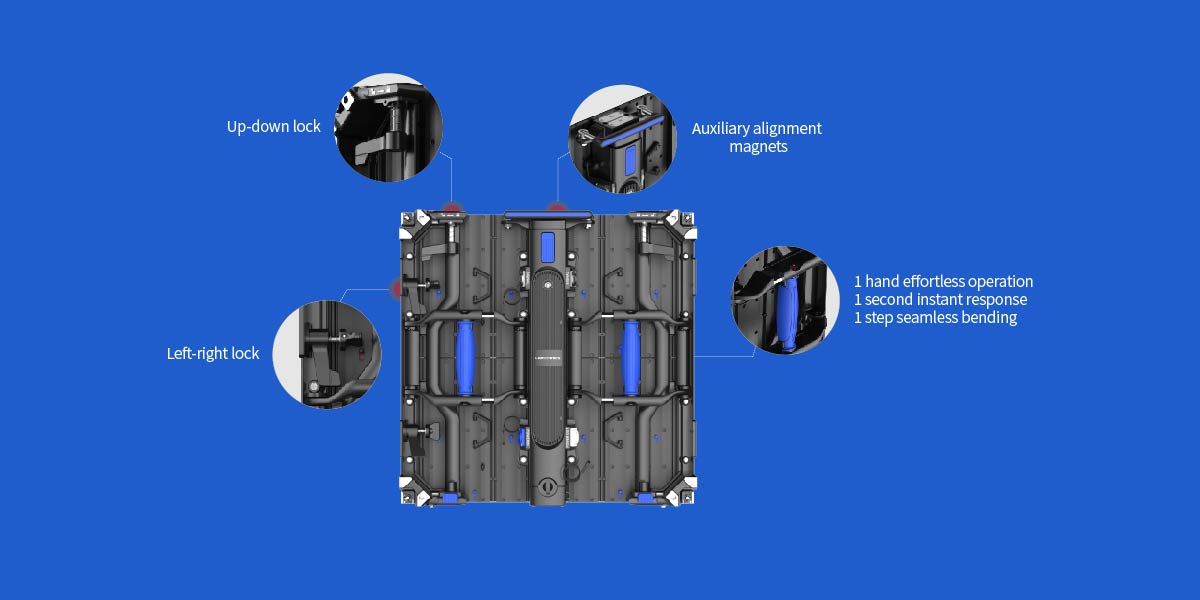

Quick Installation, Easy Maintenance
Left-right locks, handles, up-down locks, and corner protectors for simple and quick installation
Modules and power boxes support full rear maintenance
Exceptional visual effects
E-Swan series is designed with the small pixel pitch P1.9 & P2.6, which is the ideal solution
for various application and creating unlimited possibilities for your stage.

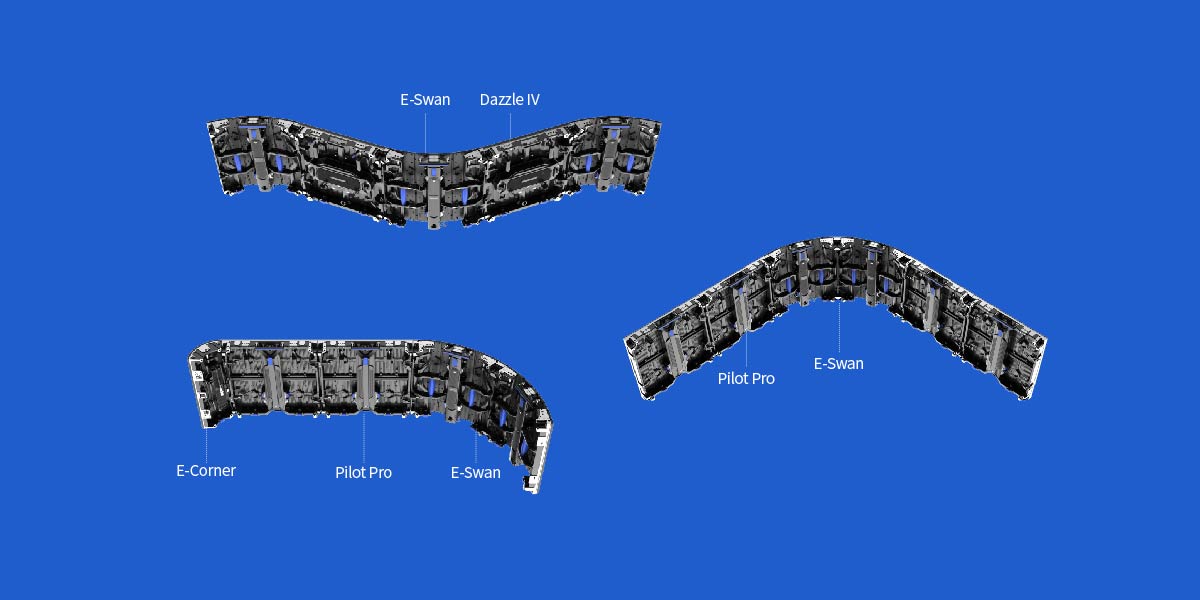

Mixed Splicing, More Possibilities
Mixed splicing with Pilot Pro Series
Mixed splicing with Dazzle Ⅳ Series
Model |
ES1.9
|
ES2.6
|
ES3.9
|
Pixel Pitch |
1.9 | 2.6 | 3.9 |
Panel Size W*H*D(mm) |
500*500*73 | ||
Panel Resolution (Pixel) |
256*256
|
192*192
|
128*128
|
Panel weight (kg/pc) |
8 | ||
Brightness (nits) |
900-1000 | 900-1500 | 900-1200 |
Serviceability |
Rear
|
||
Panel Material |
Die-casting Aluminum
|
