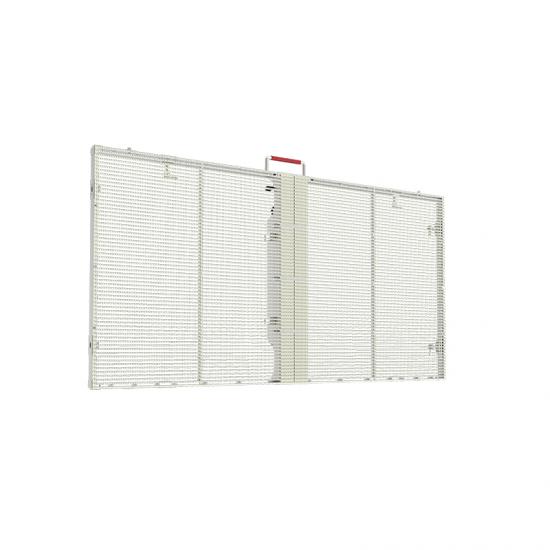

MEDUSA Transparent LED Screen is professionally designed for indoor rental transparent display. With the transparency rate of 70%, Transparent LED Display allows you to see the things behind the screen. This MEDUSA LED screen rental can be widely use in stage, museum, retail and so on.
Product Origin:
ChinaShipping Port:
ShenzhenMOQ:
1Warranty Period:
2 yearCertificates:
ETL, CEStock:
Available in ShenzhenAftersale Service:
Provide Global After-Sale Service
High Transparency
A 70% transparency rate with a 3.91mm pixel pitch. Allow the light and wind pass throught without affect the lighting and sight. High brightness and smooth picture

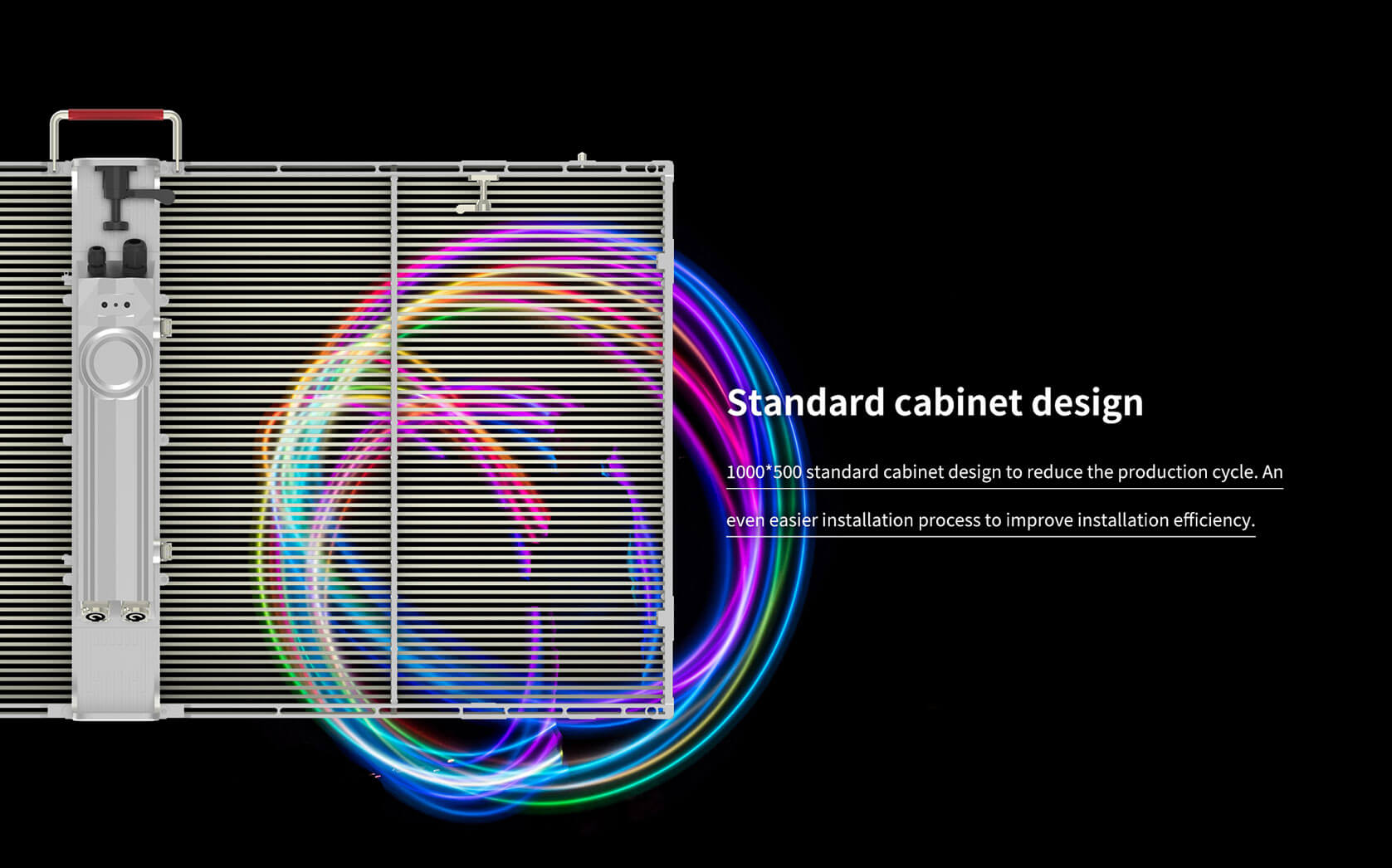

Standard Cabinet Design
1000*500 standard cabinet design to reduce the production cycle. An even easier installation process to improve installation efficiency
Professional Display Effect
High transparency, equipped with the high refresh rate IC solution and high-quality LED crystal plate. High contrast, wide viewing angle, wide color gamut, no ghost shadow, no bright or dark line
Easily Installed and Dismantled
Ｗeight: 6kg/cabinet Thickness: 65mm
Supports Module Front Maintenance
Available to change a single module, reduce the maintenance cost. Humanization design makes screen installation and maintenance more convenient
Energy Saving and Eco-friendly
The power consumption is 1/3 lower than normal screen, no air conditioner
Application
|
Model |
MEDUSA |
|||
| Pixel Pitch(mm) | 3.91 | |||
| Pixel Density(dot/m2) | 32768 | |||
| LED Type | SMD1921 | |||
| Module Size(mm*mm) | 500*125 | |||
| Cabinet Size(mm*mm*mm) |
1000*500*65 |
|||
| Cabinet Weight(±0.25kg) |
6 |
|||
| Cabinet Resolution(px*px) | 256*64 | |||
|
Brightness(nits) |
3500 |
|||
| Horizontal Viewing Angle(Deg) | 160 | |||
| Vertical Viewing Angle(Deg) | 70 | |||
| Gray Scale(bit) | 16 | |||
| Refresh Rate(Hz) | 3840 | |||
| Max Power Consumption(W/sqm) | 260 | |||
|
Average Power Consumption(W/sqm) |
87 | |||
| Ingress Protection | IP20 | |||
| Working Environment | Indoor | |||
|
Certifications |
ETC, CE |
|||
