High-end Rental LED Dispaly - Blade Series

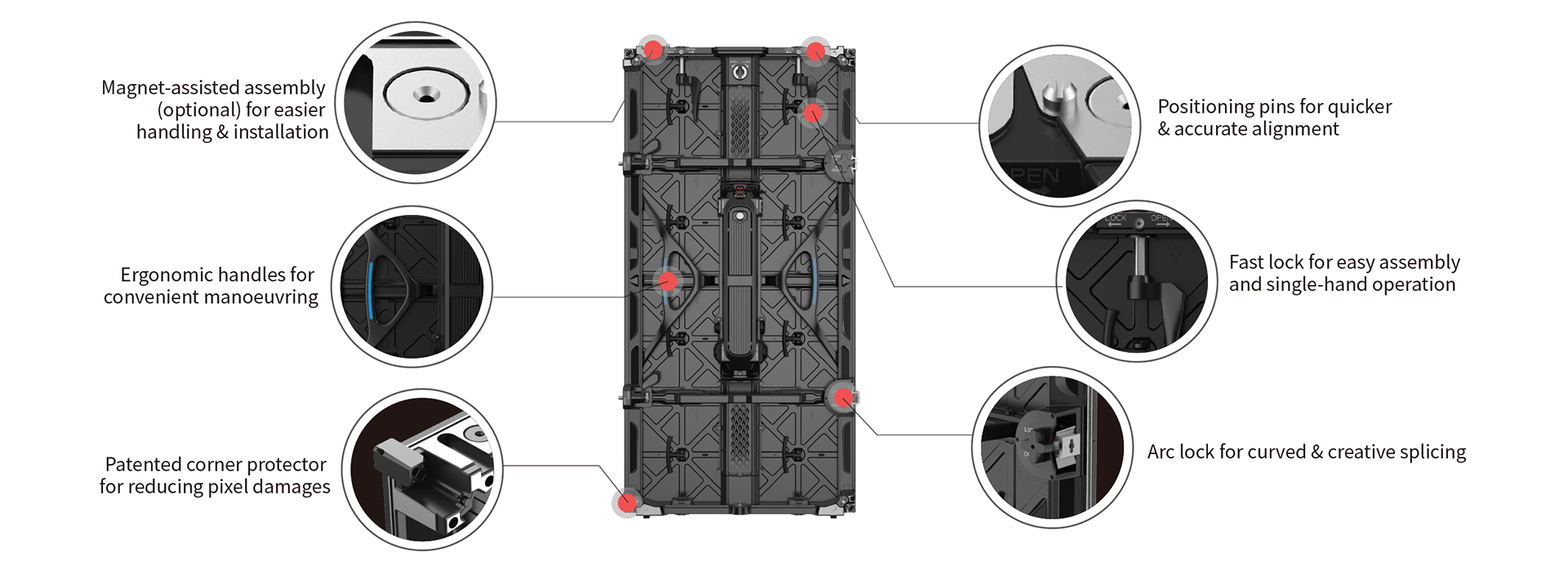

Easier & Faster Installation
Ergonomic product design with considerate details facilitates high-speed installation & labor-saving set-ups.

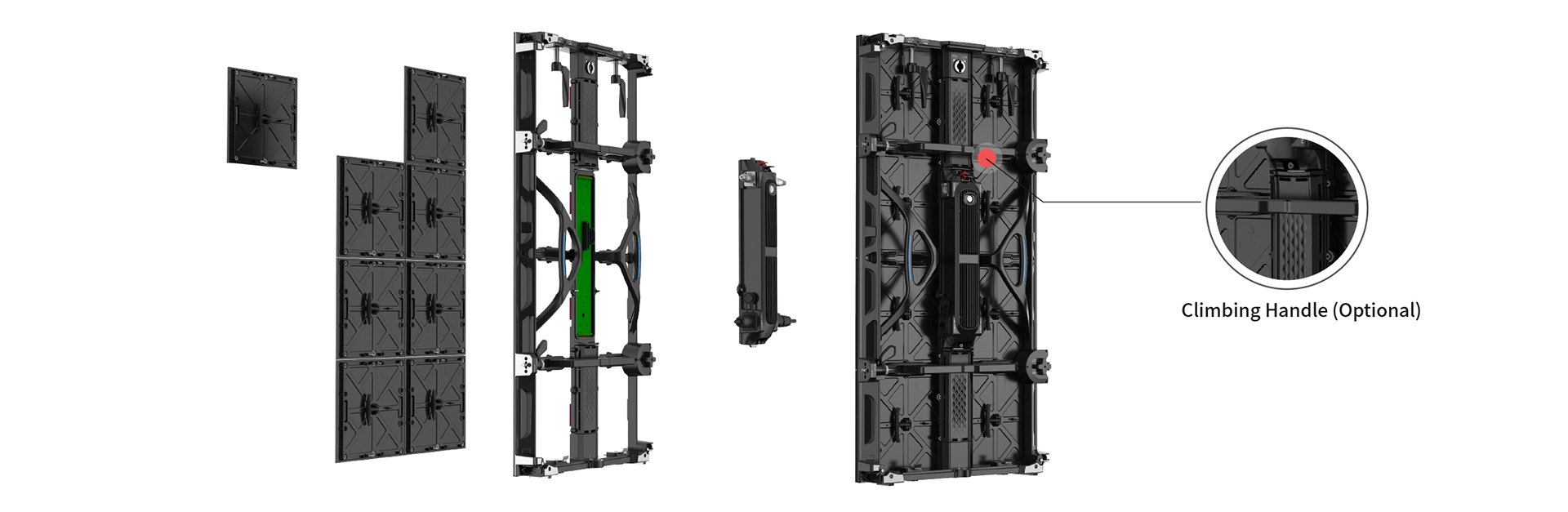

Maintenance with Ease
Universal modules can be swapped left and right and maintained from both front and rear; Power box integrates
with data unit for friendly replacement without tools; Optional climbing handles support up to 150Kg load bearing
for easy in-service maintenance.

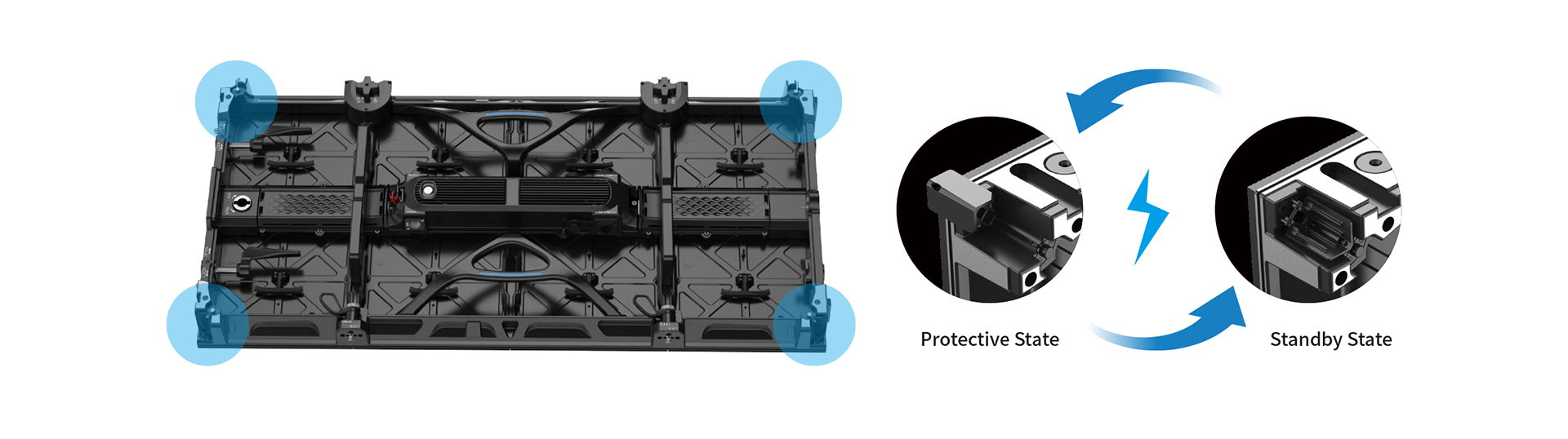

Patented Protection
Patented semi-auto corner protector providers high safeguard to avoid LED damage during frequent transportation
and installation.

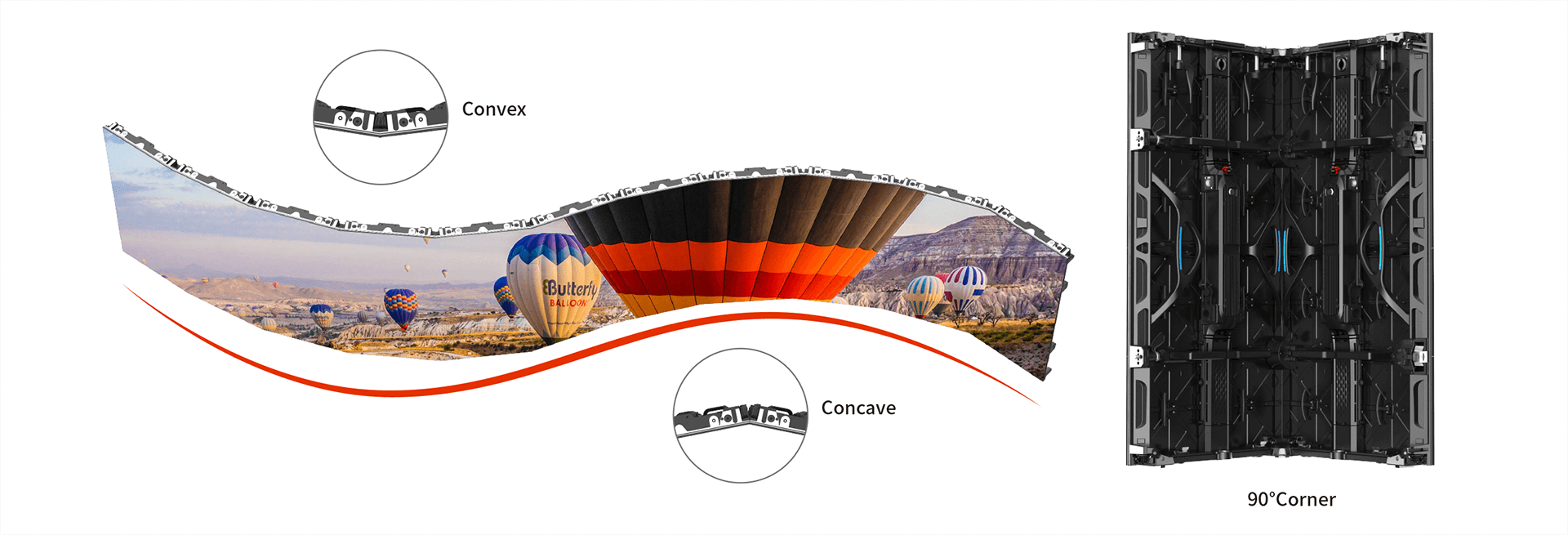

Creative Splicing
High-precision arc locks (±6°/±3°/0°) allow efficient curved capabilities in both convex and concave; Blade Series
panels support 45° bevel as well to achieve L-shape, cube and more creative splicing.

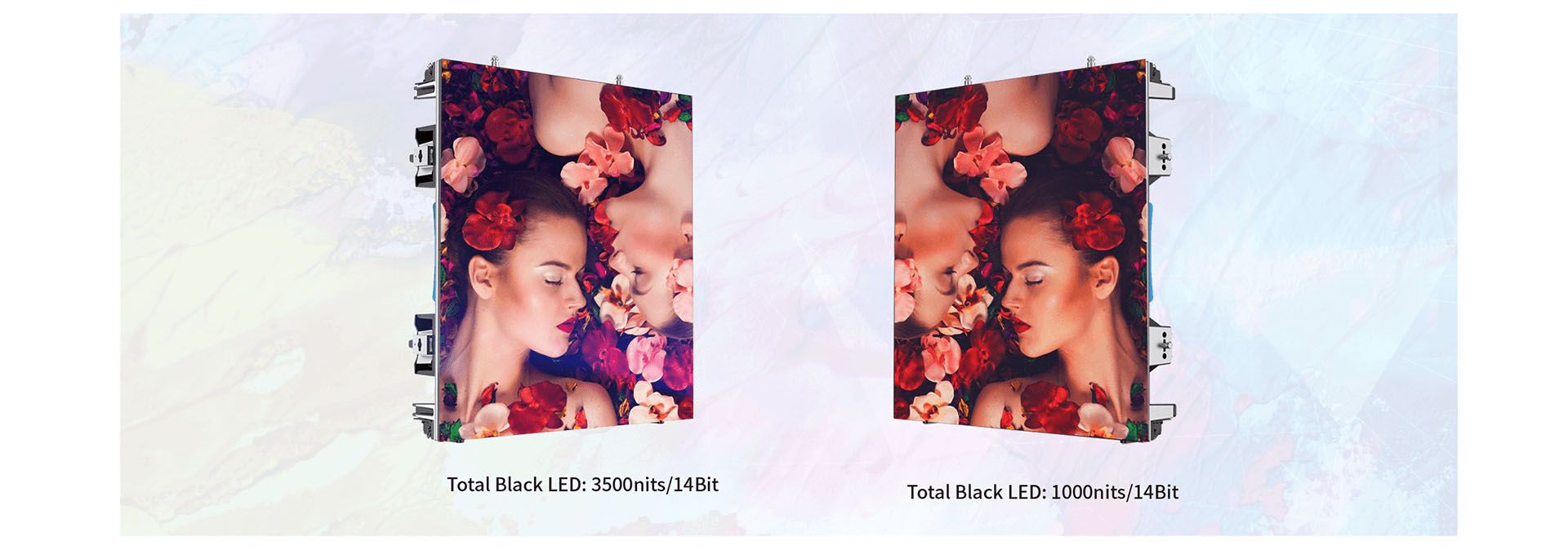

Suit for Both Outdoors & Indoors
1s switch and go. Blade Series panels are pre-set with indoor & outdoor modes to deliver superb visuals with
unrivaled gray scales under high or low brightness.

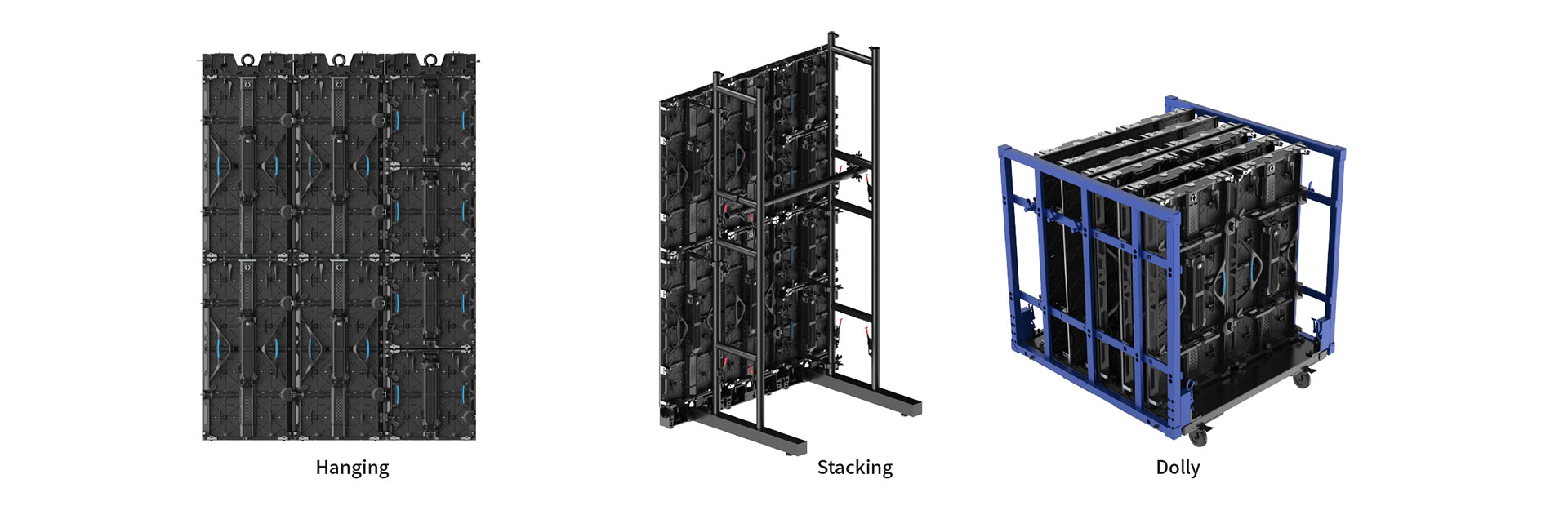

One-Stop Solution
Blade Series panels equip with various kinds of accessories for stacking & hanging in different events.
Model | Blade 3.9 |
Blade 4.8 |
Blade 7.8 |
Pixel Pitch | 3.9 | 4.8 | 7.8 |
Panel Resolution | 128 x 128 / 128 x 256 |
104x 104 / 104 x 208 |
64*64/64*128 |
Panel Size (mm) | 500(W)*500(H)/500(W)*1000(H) | 500(W)*500(H)/500(W)*1000(H) |
500(W)*500(H)/500(W)*1000(H) |
Module Resolution | 128*128/128*256 | 104*104/104*208 |
64*64/64*128 |
Module Size (mm) | 64*64 | 52*52 |
32*32 |
Weight (Kg/Panel) | 8.5/13 | 8.5/13 |
8.5/13 |
Brightness (nits) | 4500 | 4500 | 4500 |
Panel Material |
Die-casting Aluminum |
Die-casting Aluminum |
Die-casting Aluminum |
Serviceability | Rear |
Rear |
Rear |
