Retail & landmark corners
Carry high-impact content around a building edge while keeping both viewing faces visually continuous.

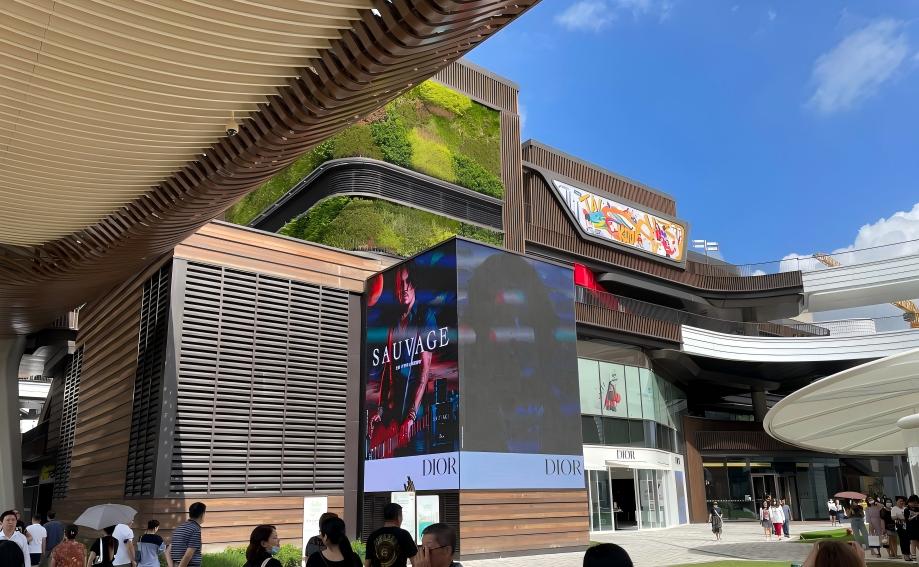

Taikoo Li Qiantan caseE-CORNER SERIES
90° Small Arc LED Display Solution
Click to play
VIBRANT CREATIVITY, SUPREME VISUALS
E-Corner

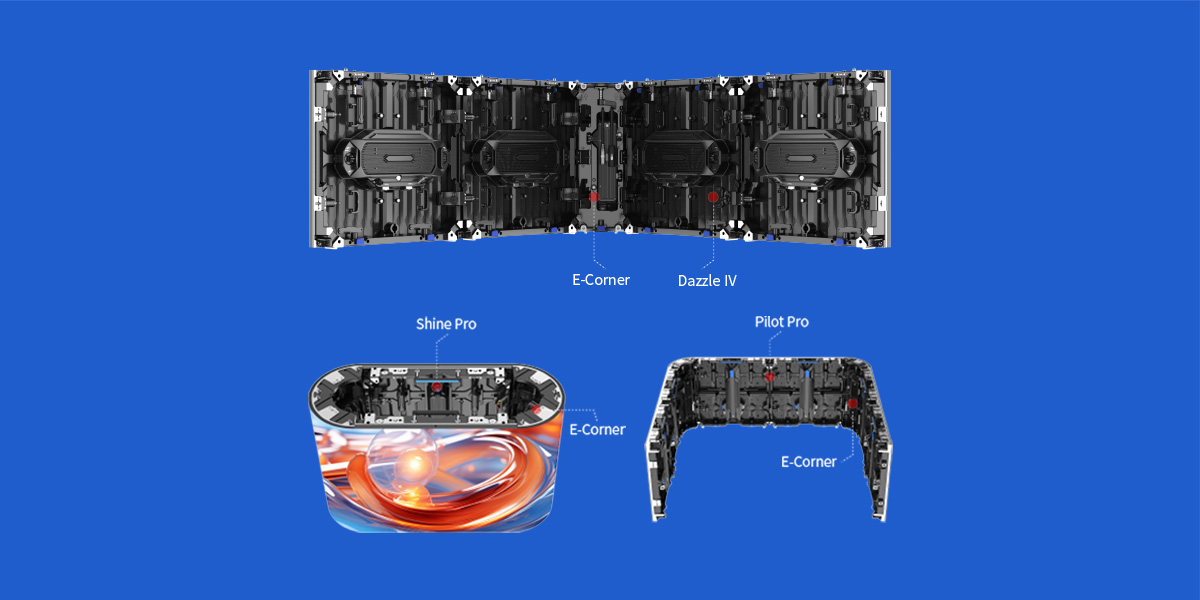

MIXED SPLICING WITH MULTIPLE PRODUCT SERIES
Craftsmanship protection
HOB TECHNOLOGY
All-round protection
High light extraction efficiency
Eye-friendly

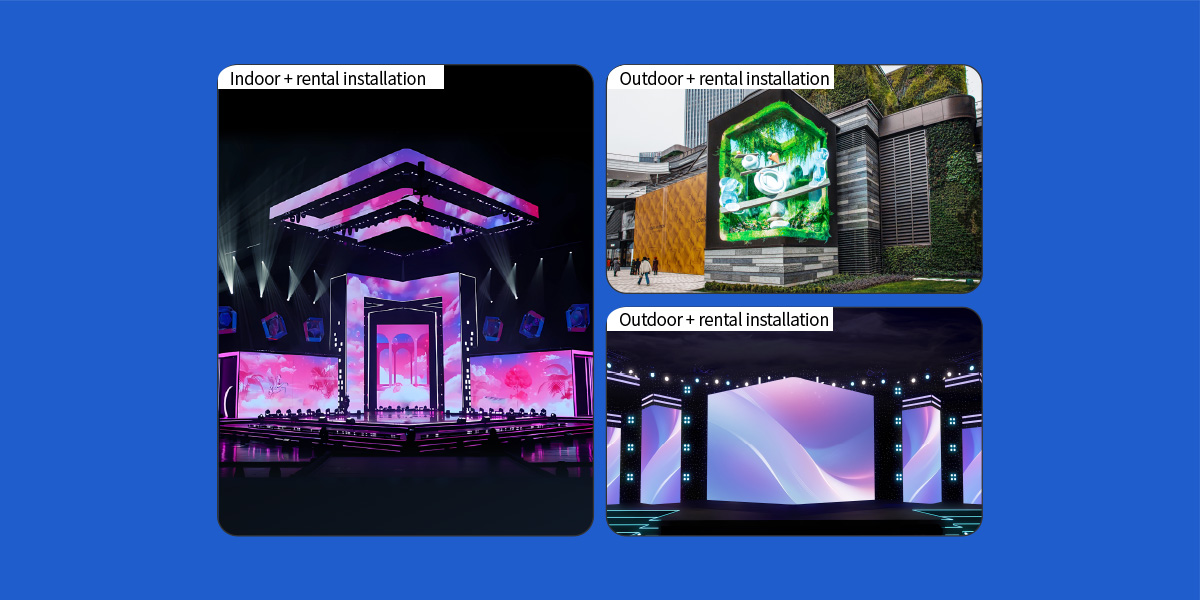

VERSATILE APPLICATION
Applicable to a variety of scenarios, including indoor and outdoor, rental and fixed installation.
PRODUCT FEATURES
90° Small Arc Corner
90° small arc panels with 250mm arc length only
Save Space
Reduce the radius of splicing screen to save space
SPECIFICATION
Download parameter table
| Model | EC1.9 | EC2.6 | EC3.9T | EC4.8T |
|---|---|---|---|---|
| Pixel Pitch (mm) | 1.9 | 2.6 | 3.9 | 4.8 |
| Pixel Density (pixels/m²） | 262144 | 147456 | 65536 | 43264 |
| LED Type | SMD | |||
| Panel Size WxHxD (mm) | 250*500*93 | |||
| Panel Resolution WxH | 128*256 | 96*192 | 64*128 | 52*104 |
| Panel Material | Die-Casting Aluminum | |||
| Weight (Kg/pc) | 4 | |||
| Brightness (nits) | 900 | 900 | 4500 | 4500 |
| Gray Scale (bit) | 14-16 | |||
| Refresh Rate (Hz) | 7680 | 3840 | ||
| Contrast Ratio | 8000:1 | 5000:1 | ||
| Color Temperature (K) | 2000~10000 (Adjustable) | |||
| IP Rating | IP30 | IP65 | ||
* All specification values given are per panel. The specifications are for reference only, actual values may vary.
Every model uses the same 250 × 500 × 93mm die-cast aluminium cabinet at 4kg. Choose the pitch from the closest viewing distance first, then choose the protection level for indoor or outdoor use.
EC1.9
Fine-detail indoor corners
For close-viewed brand, conference and premium staging environments where fine text and tight detail matter.
- Pitch
- 1.9mm
- Density
- 262,144 px/m²
- Refresh
- 7680Hz
- Brightness / IP
- 900 nits / IP30
EC2.6
General indoor rental use
A balanced choice for event stages and interior installations viewed from a moderate distance.
- Pitch
- 2.6mm
- Density
- 147,456 px/m²
- Refresh
- 3840Hz
- Brightness / IP
- 900 nits / IP30
EC3.9T
Outdoor event corners
For open-air staging and brighter environments that need weather protection and a larger viewing distance.
- Pitch
- 3.9mm
- Density
- 65,536 px/m²
- Brightness / IP
- 4500 nits / IP65
EC4.8T
Large outdoor structures
For larger corners, columns and fixed outdoor builds where brightness and efficient coverage take priority.
- Pitch
- 4.8mm
- Density
- 43,264 px/m²
- Brightness / IP
- 4500 nits / IP65
Shared across the series: SMD LEDs, 14–16 bit grayscale, 2000–10000K adjustable colour temperature, a 90-degree small arc and support for cylinder and mixed-series splicing.
E-Corner is built for projects where the screen must continue around an edge or close into a compact cylindrical form. The application decides the pitch, brightness and IP rating.

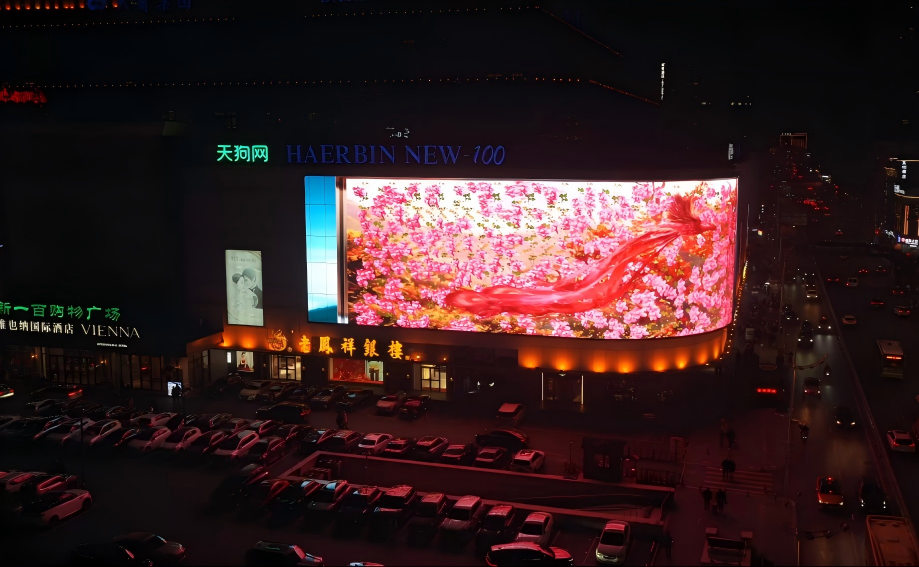

Shopping-centre façades
Turn prominent retail corners into large-format media surfaces that remain visible from multiple approaches.
Harbin NEW 100 case

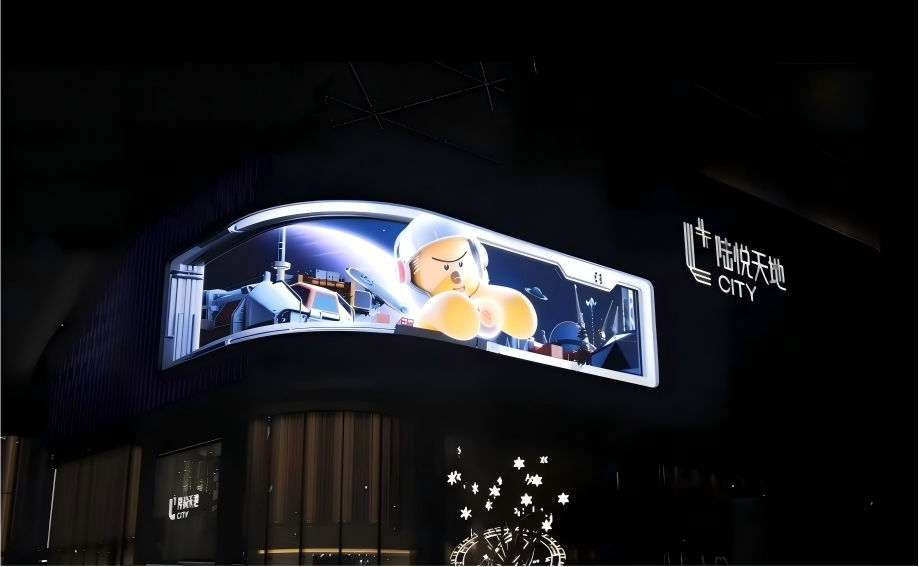

Urban commercial media
Wrap a high-visibility display around an exterior corner so campaigns read naturally from adjoining streets.
Shanghai L CITY case

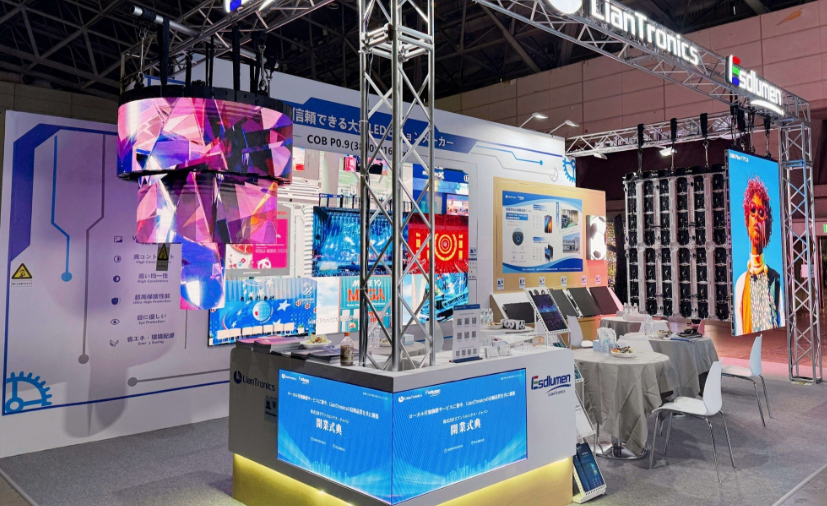

Exhibition counter corners
Continue graphics cleanly around counters and display plinths to create a more complete branded environment.
Exhibition solutions

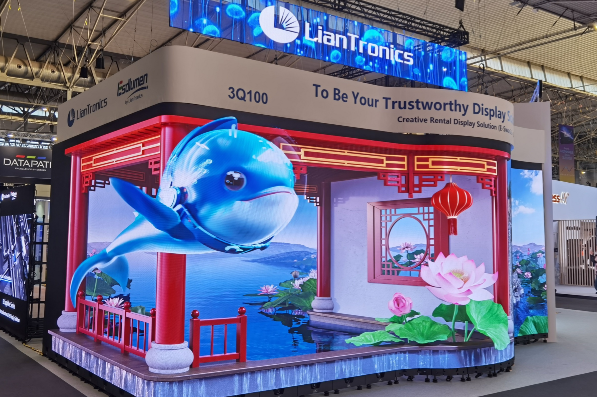

Creative multi-face exhibits
Combine straight, corner and curved display faces for immersive booth structures with fewer visual breaks.

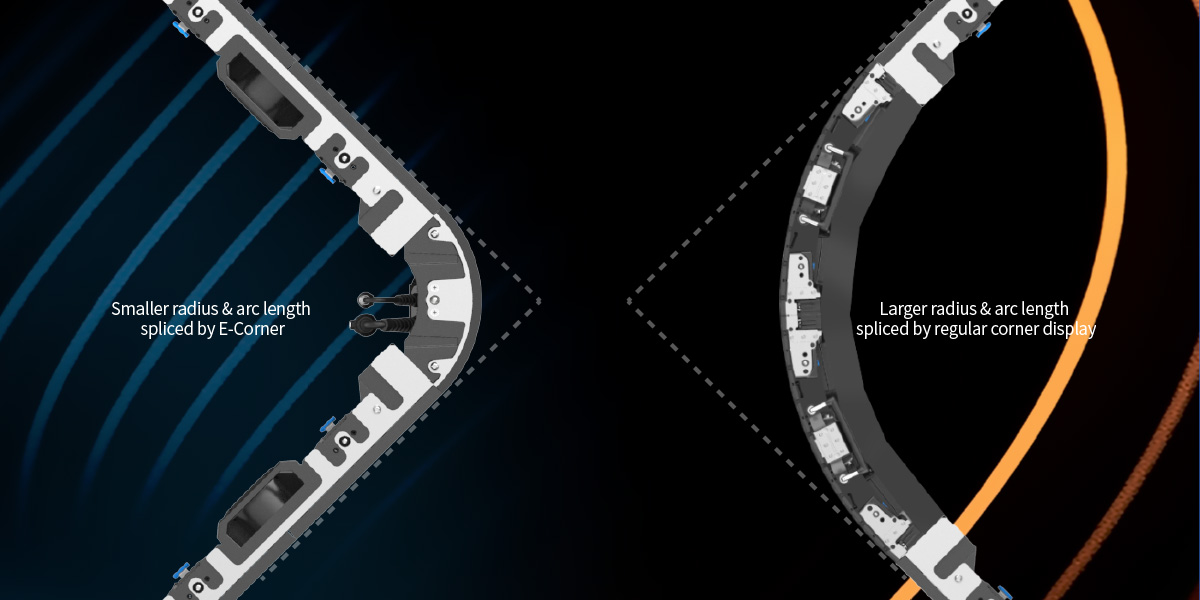

More exhibition formatsTwo standard flat panels meeting at 90 degrees create a hard seam or require a mechanical mitre. E-Corner replaces that join with a dedicated 90-degree arc panel whose arc length is only 250mm, allowing the image to flow continuously around the edge.

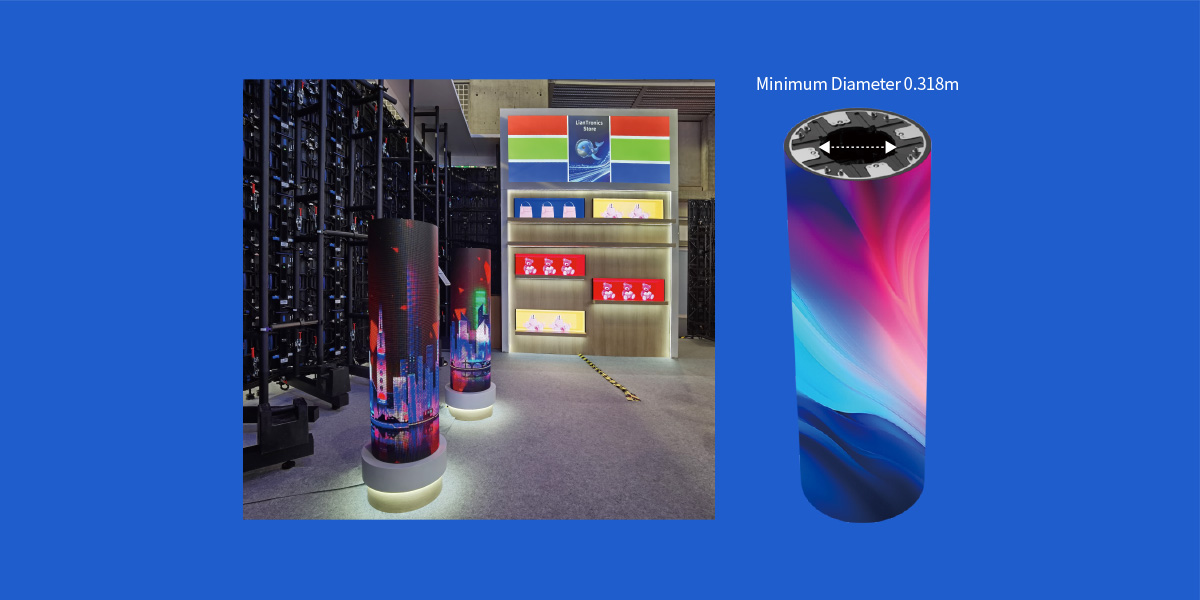

The compact arc reduces the splicing radius, so the finished wall occupies less floor and rigging space than a wide bend. The same geometry helps the series close into a cylinder instead of approximating one with visible flat facets.

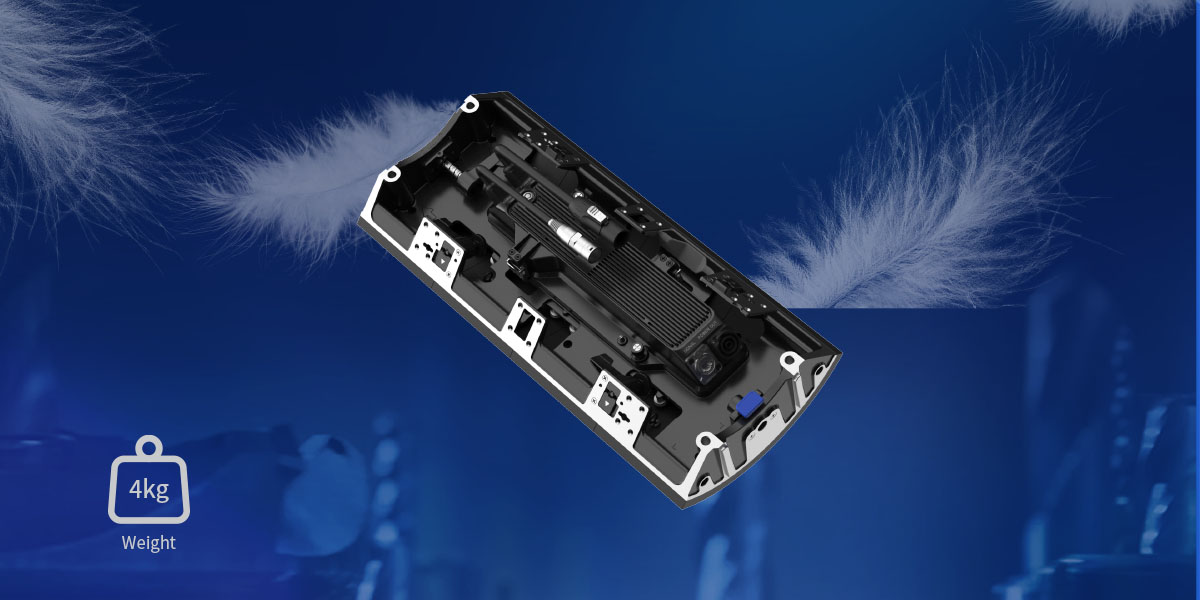

Each cabinet remains practical for repeat builds: 4kg die-cast aluminium construction in a 250 × 500 × 93mm format, with HOB lamp-surface protection for transport, setup and dismantling.
E-Corner supplies the corners while compatible flat and curved panels supply the faces. This lets a designer shape one set without relying on separate custom corner frames.
| Role on the wall | Series | What it contributes |
|---|---|---|
| Flat faces & fine detail | Pilot Pro | High-end fine-pitch flat panels for the main surface |
| Curved faces | E-Swan Indoor / E-Swan Outdoor | Curved splicing for arcs and sweeps |
| 90-degree corners & cylinders | E-Corner | 250mm small-arc transition and cylinder formation |
A dedicated corner panel solves the geometry at cabinet level, avoiding the visible seam, oversized bend or job-specific mitre frame often required when standard flat panels meet at an edge.
| Requirement | Flat panels at a corner | E-Corner panel |
|---|---|---|
| Corner geometry | Hard seam or mechanical mitre | Continuous 90-degree small-arc surface |
| Corner radius | Wide bend or gap at the join | 250mm arc for a tighter radius |
| Floor & rigging space | Larger footprint for the curve | Reduced radius saves space |
| Cylinder builds | Approximated with flat facets | Designed for seamless cylinder formation |
| Panel handling | Depends on the base product | 4kg per 250 × 500 × 93mm panel |
| Indoor / outdoor | Depends on the base product | IP30 indoor and IP65 outdoor options |
For the protection-level decision, see What Is IP65? What IP Rating Do Outdoor LED Walls Need?
E-Corner is a 90-degree small-arc LED panel for rental and fixed installation. Its 250mm arc helps two display faces meet as one continuous surface and can also form compact cylinders.
The range includes EC1.9, EC2.6, EC3.9T and EC4.8T. All four use a 250 × 500 × 93mm die-cast aluminium cabinet weighing 4kg.
Yes, with the correct model. EC3.9T and EC4.8T are rated IP65 at 4500 nits for outdoor projects. EC1.9 and EC2.6 are IP30 indoor models at 900 nits.
The panel uses a 90-degree arc with only 250mm arc length. This reduced radius supports compact right-angle structures and cylinders while saving floor and rigging space.
Yes. E-Corner is designed for mixed splicing with multiple product series, typically providing the corner element while Pilot Pro supplies flat faces and E-Swan supplies curved sections.
Each cabinet weighs 4kg. Its die-cast aluminium construction and compact 250 × 500mm face are designed for repeated rental handling and efficient installation.
Pricing depends on pixel pitch, total screen area, the number of corners or cylinders, rigging, processing, transport packaging, spares and whether the project is indoor or outdoor. Use the project requirements to request an accurate configuration and quote.
