Blade Series Series - High-end Outdoor Rental LED Display

Blade Series Series - High-end Outdoor Rental LED Display

1.Easier & Faster Installation
2.Maintenance with Ease

3.Patented Protection

4.Creative Splicin

5.Suit for Both Outdoors & Indoors

6.One-Stop Solution



  • MOQ:

    1
  • Warranty Period:

    2 years
  • Stock:

    Available in Both Shenzhen & Branch Warehouse
  • Global Branch & Office:

    Netherlands/Dubai/Japan/India
  • Aftersale Service:

    Provide Global After-Sale Service
Features

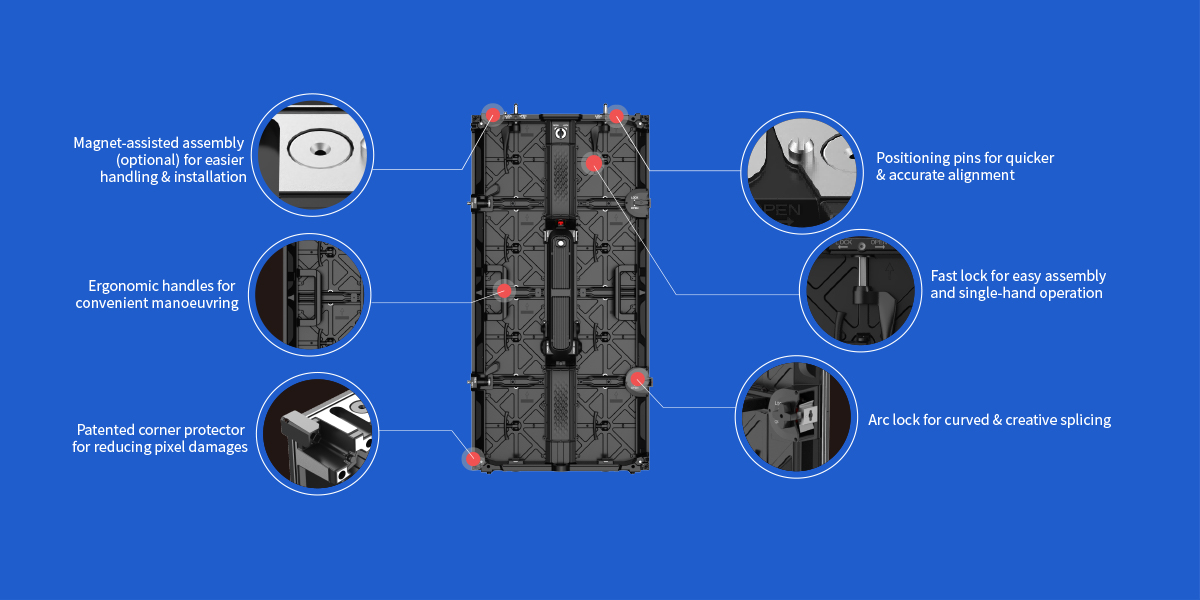

Easier & Faster Installation


Ergonomic product design with considerate details facilitates high-speed installation & labor-saving set-ups.


Handy & Easy Installation video wall rental

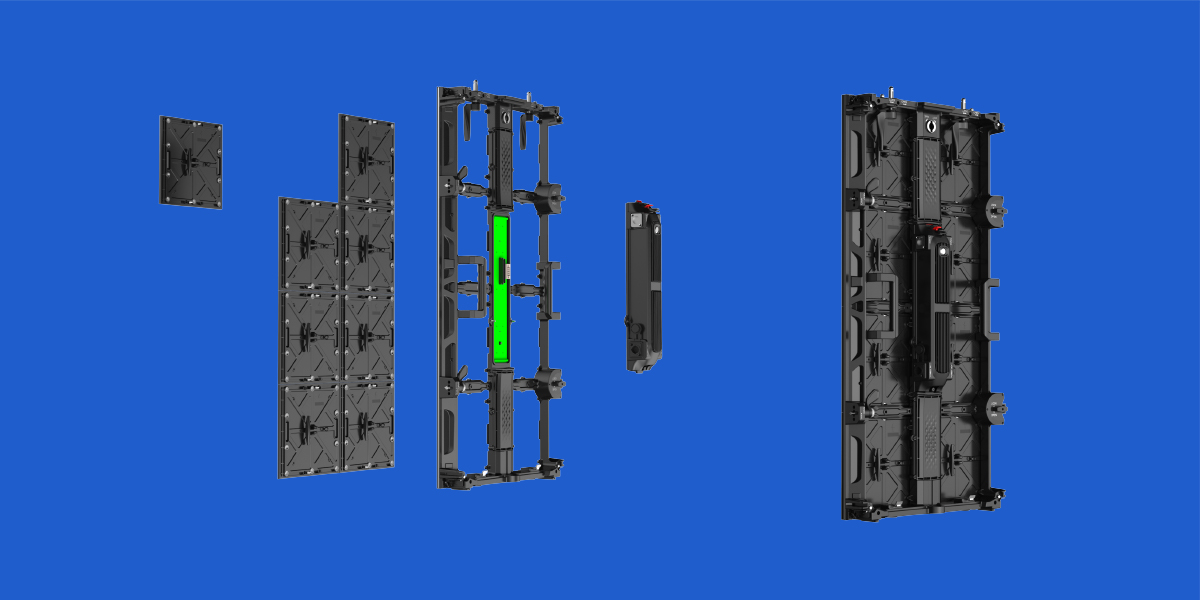

Maintenance with Ease


Universal modules can be swapped left and right and maintained from both front and rear; Power box integrates
with data unit for friendly replacement without tools.


convenient maintenance led backdrop screen

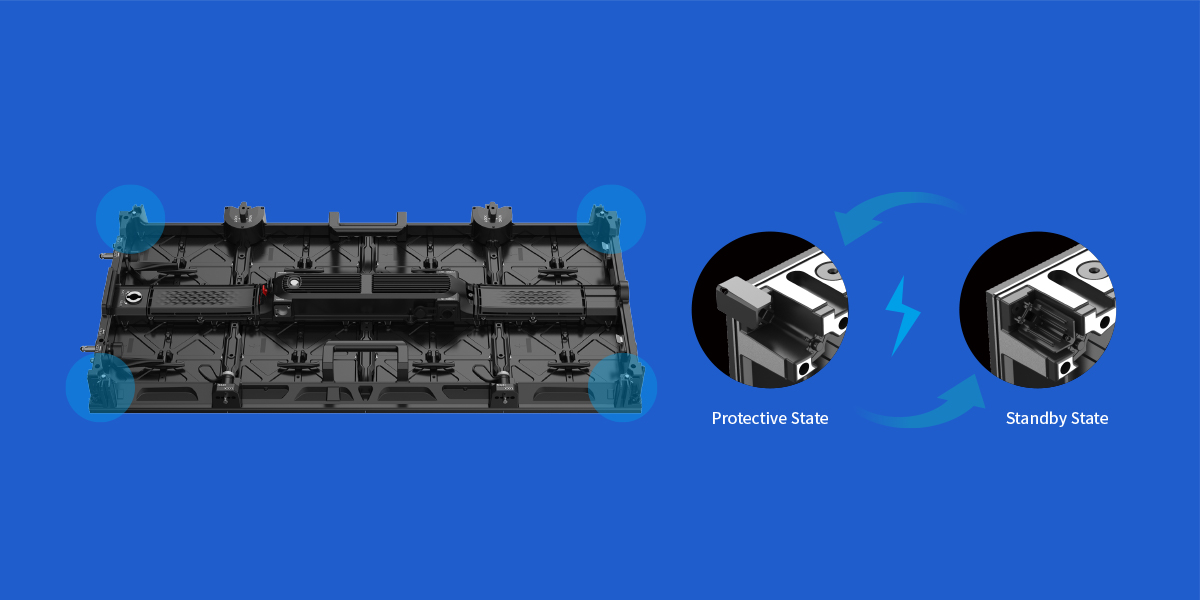

Patented Protection


Patented semi-auto corner protector providers high safeguard to avoid LED damage during frequent transportation
and installation.


Ultra-High Potection china outdoor led display

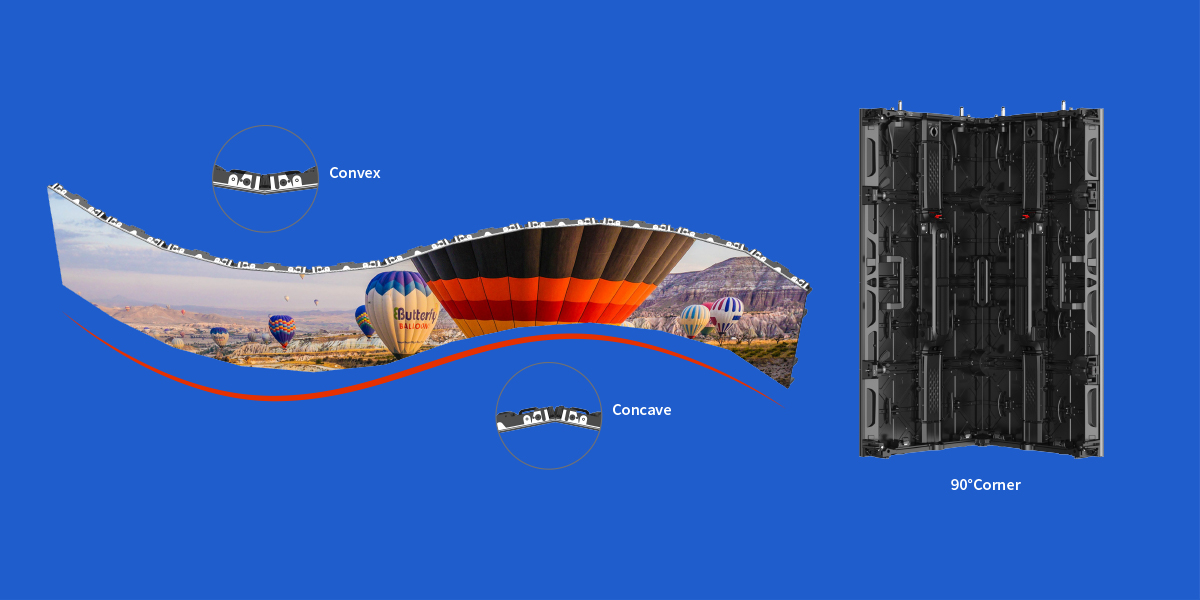

Creative Splicing


High-precision arc locks (±6°/±3°/0°) allow efficient curved capabilities in both convex and concave; Blade Series
panels support 45° bevel as well to achieve L-shape, cube and more creative splicing.


creative shapes led backdrop screen


Suit for Both Outdoors & Indoors


1s switch and go. Blade Series panels are pre-set with indoor & outdoor modes to deliver superb visuals with
unrivaled gray scales under high or low brightness.


high protection led video wall | wnterproof led scren wall

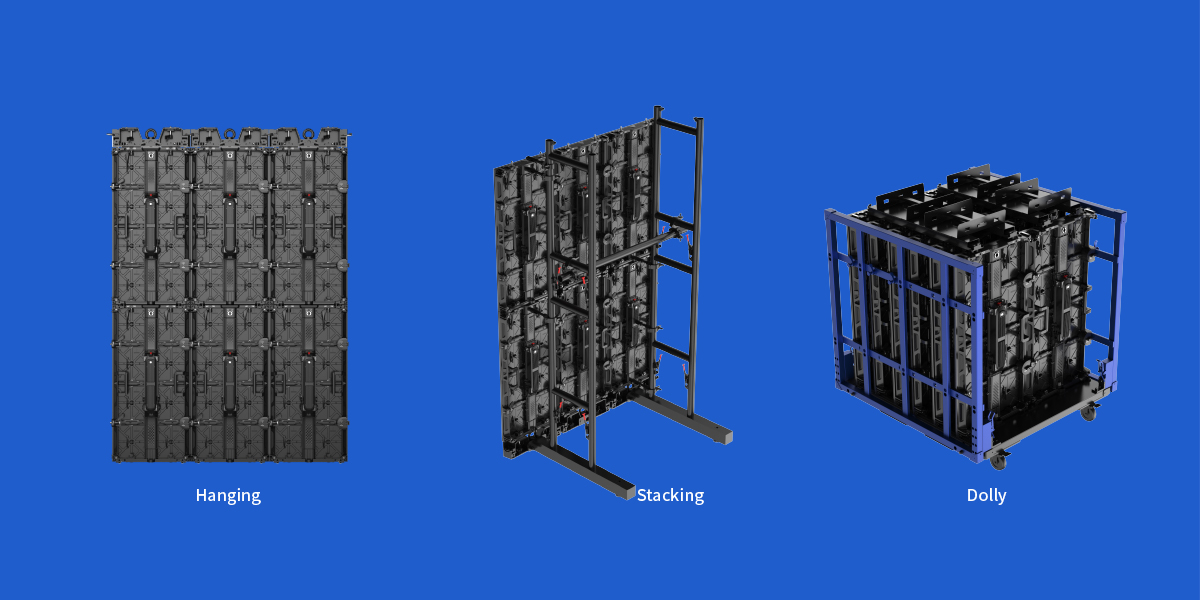

One-Stop Solution


Blade Series panels equip with various kinds of accessories for stacking & hanging in different events.


Double Backup video wall rental



Parameters
Model Blade 3.9 Blade 4.8
Pixel Pitch 3.9 4.8
Panel Resolution 128 x 128 / 128 x 256 104 x 104 / 104 x 208
Panel Size (mm) 500(W)x500(H)/500(W)x1000(H) 500(W)x500(H)/500(W)x1000(H)
Module Size (mm)
250 × 250
250 × 250
Weight (Kg/Panel) 8.5/14 8.5/14
Brightness (nits) 4500 4500
Panel Material Die-casting Aluminum
Die-casting Aluminum
Serviceability Rear Rear


Projects
  • VMQ P2.5 for Genpla Hotel Shenzhen Guangdong
    VMQ P2.5 for Genpla Hotel Shenzhen Guangdong

    Project type: Indoor Product: VMQ P2.5 Project Address: Shenzhen Guangdong Project Date: 2021 Project Area: 28㎡

  • VMQ1.8 , Ideal Property Sales Gallery in Malaysia
    VMQ1.8 , Ideal Property Sales Gallery in Malaysia

    Project Type: Indoor Product Series: VMQ P1.8 Project Address: Penang Project Date: 2021 Project Area: 15m²

  • VMQ3 for shopping mal, Hong Kong
    VMQ3 for shopping mal, Hong Kong

    Project Type: Indoor Product Series: VMQ3 Project Address: Hong Kong Project Date: 2022 Project Area: 52m²
