Small Pixel Pitch LED Display

BIM Plus-Narrow Pixel Pitch LED Display

BIM Plus-Narrow Pixel Pitch LED Display

Eastar BIM Plus is specially designed for fixed LED display applications. With the features of high refresh rate, ultra narrow pixel pitch and high brightness, it can effectively provide you a better visual enjoyment. In addition, the slim cabinet makes it a fashion design. Some other functions, such as special shape splicing and automatic correction, can also give you a better using experience. This BIM Plus LED Screen can be widely used in shopping mall, subway, cinema, meeting room, airport etc.

  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • MOQ:

    1
  • Warranty Period:

    2 years
  • Certificates:

    TUV-CE(EMC+LVD)/TUV-CB/ETL
  • Stock:

    Available in Both Shenzhen & Branch Warehouse
  • Global Branch & Office:

    Netherlands/Dubai/Japan/India
  • Aftersale Service:

    Provide Global After-Sale Service
Features


Esdlumen Indoor Fixed

BIM Plus Series

P1.9/P2.6/P3.1/P3.9




Ultra narrow pixel pitch

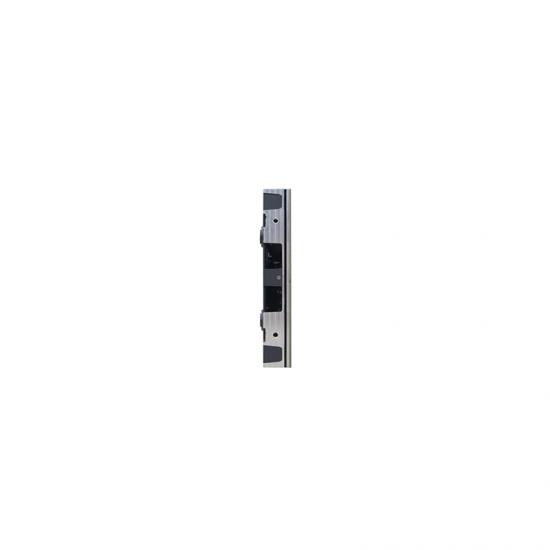

Light weight 6kg, ultra thin, 42mm thickness




 Multiple size for cabinet, same module can be used between different cabinet.

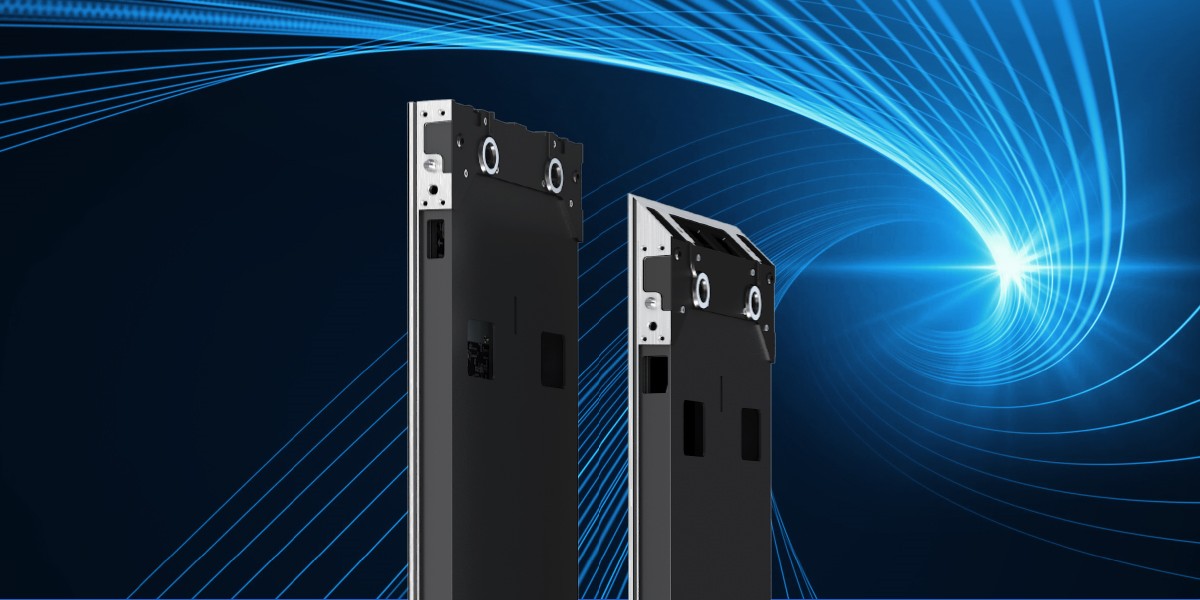

Supporting the right angle

corner angle & curved screen

to make different shapes.




Smooth and clear picture quality

High refresh rate, 16 levels of gray scale

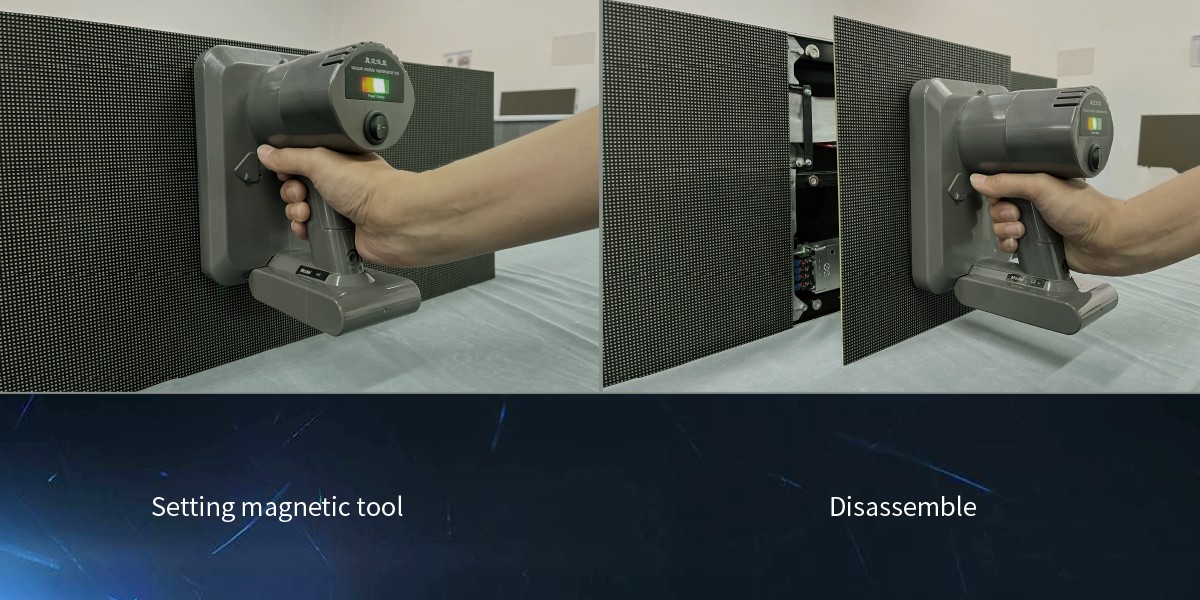

Total front maintenance with the magnetic tools.

Completely installed against the wall, Save maintenance cost.



BIM Plus Applications




Parameters

Model BIM Plus P1.9 BIM Plus P2.6
BIM Plus P3.1
BIM Plus P3.9
Pixel Pitch(mm) 1.953 2.604 3.125 3.906
Pixel Density(dot/m2) 262144 147456 102400 65536
LED Type Mini LED/SMD1515 SMD2121
SMD2121
SMD2121
Module Size(mm) 250*250 250*250
250*250
250*250
Cabinet Size(mm*mm*mm) 750*250*42 1000*250*42
1000*250*42
1000*250*42
Cabinet Weight(kg) 4.8 6 6 6
Cabinet Resolution(px*px) 384*128 384*96 320*80 256*64
Horizontal Viewing Angle(Deg) 160 160 160 160
Vertical Viewing Angle(Deg) 140 140 140 140
Brightness 700 1000 1200 1200
Gray Scale(bit) 16 16
16
16
Refresh Rate(Hz) 3840 3840
3840
3840
Max Power Consumption(W/㎡) 536 536 536 536
Average Power Consumption(W/㎡)
210 210 210 210
Input Voltage(AC) AC 100-240V AC 100-240V
AC 100-240V
AC 100-240V
Ingress Protection IP20 IP20
IP20
IP20
Working Environment Indoor

Projects
  • BIM PLUS P3.9 for shopping center, Japan
    BIM PLUS P3.9 for shopping center, Japan

    Project type: Indoor Product: BIM PLUS P3.9 Project Address: Hiroshima, Japan Project date: completion date December 20 Project area: 115 square meters

  • BIM Plus P1.9 for street advertisement, Australia
    BIM Plus P1.9 for street advertisement, Australia

    Project type: Indoor Product Type: BIM Plus P1.9 Project Address: Australia Project Date: 2018.8 Project Area: 20 ㎡

  • BIM Plus P1.9 for teletorium, Italy
    BIM Plus P1.9 for teletorium, Italy

    Project type: Indoor Product: BIM Plus P1.9 Project Address: Rome, Italy Project Date: July 2018 Project Area: 20㎡
