VWA Series - Fine-Pitch LED Display

VWA Series - Fine-Pitch LED Display

1. Minimalistic Yet Elaborate

2. Display the True Color

3. Streamlined Installation, High Efficiency

4. Highly Integrated for Neatly Wiring

5. Different Sizes, Flexible Splicing

6. Considerate Details for High Reliability

  • MOQ:

    1
Features


Minimalistic Yet Elaborate

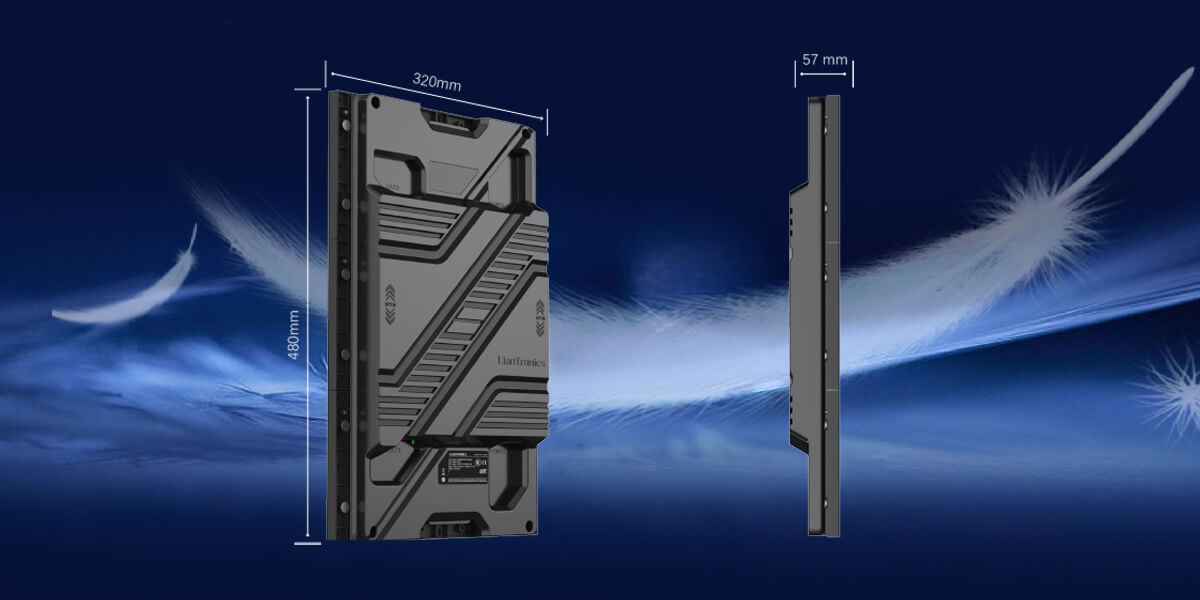

Designed in size of 320mm*480mm and lightweight of 2.6 Kg/pc only, VWA Series can be carried by just one person, requiring less labor for both transportation and installation. High-strength plastic back shell is impact- and break-resistant.





Display the True Color


3840Hz high refresh rate and high grayscale help reproduce the natural colors in full details.



Streamlined Installation, High Efficiency


Minimalize the installation to maximize the working efficiency. With magnetic-assist installation, VWA Series eliminates the necessity of locking the connecting plates and allows the cabinets to be secured to a steel structure, substantially reducing the installation time. What’s more, optional safety ropes can provide higher guarantees.



Highly Integrated for Neatly Wiring


Power supply, receiving card, and hub board integrate into one to reduce internal wiring; Each cabinet reserves 2 group of power and signal interfaces to simplify the external wiring; The high-integration design cuts down the on-site wiring to improve installation efficiency.



Different Sizes, Flexible Splicing


VWA Series can be cut horizontally into 320mm*320mm, allowing mixed splicing with standard size of 320mm*480mm to adopt more inventive display scenarios.

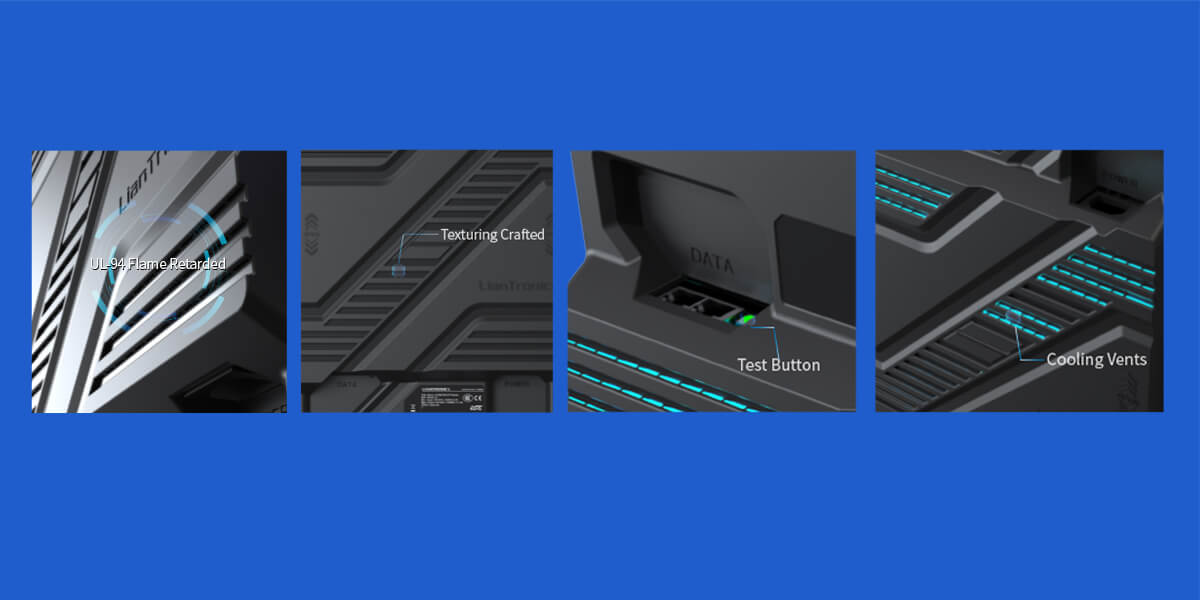

Considerate Details for High Reliability


Up to UL-94 rating grants effective fire prevention and flame retardant; Texturing processing on the back shell highlights elegant and stylish aesthetics; Implicit cooling vents are designed for excellent heat dissipation; The external test button makes debugging easily.


Parameters
Model VWA1.8 VWA2.0 VWA2.5
Pixel Pitch(mm) 1.8 2.0 2.5
Panel Size(mm) 320*480*56 320*480*56 320*480*56
Panel Resolution 172*258 160*240

128*192

Panel Material Plastic Plastic Plastic
Weight (kg/pc) 2.6 2.6 2.6
Brightness (nits) 500 600 500
Serviceability Front Front Front


Projects
  • VMQ P2.5 for Dongchang Hotel, Dongguan, Guangdong
    VMQ P2.5 for Dongchang Hotel, Dongguan, Guangdong

    Project type: Indoor Product: VMQ P2.5 Project Address: Dongguan, Guangdong Project Date: 2021 Project Area: 105㎡

  • VF P1.5、VAII P1.5 for NBC Washington, USA
    VF P1.5、VAII P1.5 for NBC Washington, USA

    Project Type: Indoor Product Series: VF P1.5、VAII P1.5 Project Address:  USA Project Date: 2021 Project Area: 25㎡、10㎡ NEWS:https://www.esdled.com/liantronics-fine-pitch-led-video-walls-renewed-nbc-washington-studios_n219

  • VA P1.4、VHII P1.4、 LED Floor Tile P2.5 for Water Resources Department of Guangdong Province
    VA P1.4、VHII P1.4、 LED Floor Tile P2.5 for Water Resources Department of Guangdong Province

    Project type: Indoor Product: VA P1.4、VHII P1.4、 LED Floor Tile P2.5 Project Address:Guangdong Project Date: 2019 Project Area: 190㎡
