1. Light as cicada's wing, 6kg per cabinet (includes angle lock)
2. Extreme display effect
3. Module front and rear maintenance. Power box support quick installation
4. Single operator fast installation. Innovative handles save effort
5. Shaped splicing, can be spliced into curved surface / straight screen / circle screen
6. Integrated HUB card, data signal interference free, more stable
MOQ:
1Warranty Period:
2 YearsStock:
Available In ShenzhenGlobal Branch & Office:
ChinaAftersale Service:
Provide Global After-Sale Service
1. Light as cicada's wing, 6.4kg per cabinet (includes angle lock)
2. Extreme display effect
3. Module front and rear maintenance. Power box support quick installation and disassembly, more convenient
4. Single operator fast installation. Innovative handles save effort
5. Shaped splicing, can be spliced into curved surface/straight screen/circle screen
6. Integrated HUB card, data signal interference free, more stable
Extreme Display Effect

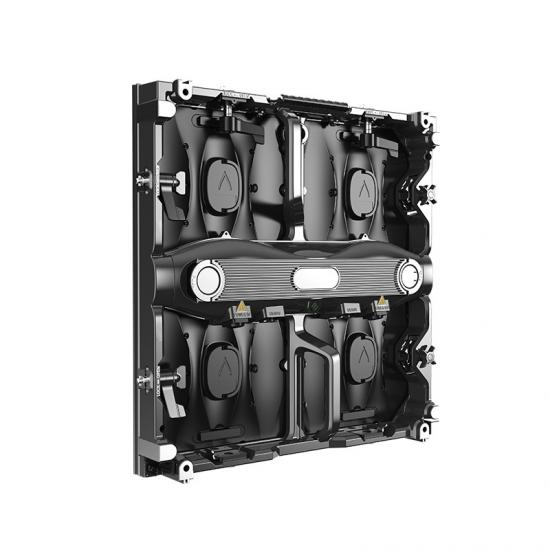

Module Front and Rear Maintenance. Power Box Supports quick installation
Tools free for fast maintenance, apply to more complex operating environment
Single Operator Fast Installation. Innovative Handles Save Effort
Fast lock, simply rotate the angle lock to quick switch the splicing angle, installation speed increased by 40%
Shaped Splicing
High precision angle lock ±6°，±3°，0°， can be spliced into curved surface / straight screen / circle screen
Integrated HUB Card, Data Signal Interference Free
Wireless design, simple and high reliability
| Model | CW 2.6 |
CW 2.9 |
CW 3.9 |
| Pixel Pitch | 2.6 | 2.9 |
3.9 |
| Pixel Density(dot/m2) | 147456 | 112896 |
65536 |
| LED Type | SMD1515 |
SMD2121 |
SMD2121 |
| Module Size(mm*mm) | 250*250 |
250*250 |
250*250 |
| Cabinet Size(mm*mm*mm) | 500*500*69.6 |
500*500*69.6 |
500*500*69.6 |
| Cabinet Weight(±0.25kg) |
6.4kg |
6.4kg |
6.4kg |
| Cabinet Resolution(px*px) |
192*192 |
168*168 |
128*128 |
| Module Resolution(px*px) |
96*96 |
84*84 |
64*64 |
| Horizontal Viewing Angle(Deg) |
160 |
160 |
160 |
| Vertical Viewing Angle(Deg) |
120 |
120 |
120 |
| Brightness(cd/m2) |
800 |
800 |
800 |
| Gray Scale(bit) |
14-16 |
14-16 |
14-16 |
| Refresh Rate(Hz) |
1920-3840 |
1920-3840 |
1920-3840 |
| Max Power Consumption(W/sqm) |
608 |
608 |
608 |
|
Average Power Consumption(W/sqm) |
240 |
240 |
240 |
| Input Voltage(V) |
100-240V |
100-240V |
100-240V |
| Ingress Protection |
IP20 |
IP20 |
IP20 |
| Working Environment |
Indoor |
Indoor |
Indoor |
Project Type: Indoor Product Series: Pilot P2.6、LWD3.9x3.9 Project Address: Indonesia Project Date: 2022.07 Project Area: 85、60 ㎡
Project Type: Indoor Product Series: Pilot P2.6 Project Address: USA Project Date: 2020.03 Project Area: 20 ㎡
Prev :
LF Series Ultra-Thin & Light Outdoor Small-Pitch LED DisplayNext :
Mini Pro - Top Anti-collision Small-pitch LED Screen
Esdlumen wing series indoor led rental panel sells well in China, middle east, Latin America and India, P3.9 used widely in the meeting room, exhibition center, car show, church, etc. If you have a short time rental events, you can try our indoor rental wing panels.
1. Easy & Fast to Install 2. Hassle-Free Maintenance 3. Perfect Visuals 4. Extra Protection 5. Versatile Splicing 6.Universal Accessory
1. Mini 4 in 1 LED; 2. Semi-automatic Corner Protector; 3. Angle Lock, Arc Splicing; 4. Single Operator Fast Installation; 5. HCC Technology Black LED & High Brightness; 6. All in One Power Supply Box;
