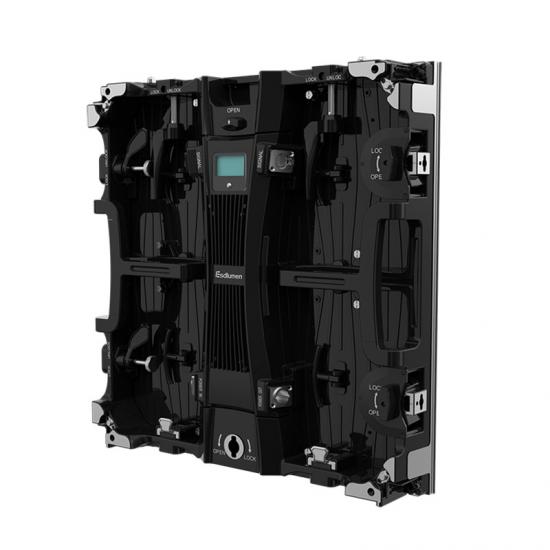

Mini Pro - Top Anti-collision Small-pitch LED Screen

1. Mini 4 in 1 LED;

2. Semi-automatic Corner Protector;

3. Angle Lock, Arc Splicing;

4. Single Operator Fast Installation;

5. HCC Technology Black LED & High Brightness;

6. All in One Power Supply Box;

Features Parameters Projects

Features

anti collision rental led screen

Mini 4 in 1 LED

IMD integration encapsulation, strong bonding pad attached, low maintenance cost

mini led

Semi-automatic Corner Protector

One button operation, protecting corner lamps

high protection led display

Angle Lock, Arc Splicing

Support straight screen, convex & concave ±6°/±3°/ 0°

curved led screen

Single Operator Fast Installation

Ergonomic design, suitable for your hand type, easy to grip

fast installation led display

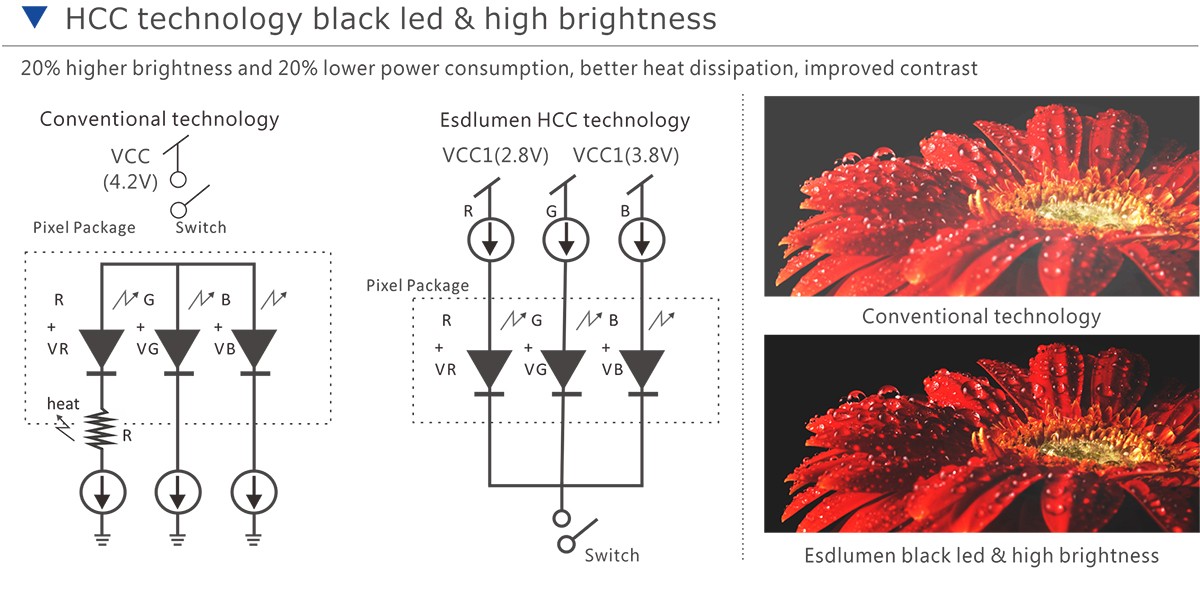

HCC Technology Black LED & High Brightness

20% higher brightness and 20% lower power consumption, better heat dissipation, improved contrast

high brightness led screen

All in One Power Supply Box

power box integrated design, support front & rear service. Real-time monitoring the temperature and operating time

small pitch led screen

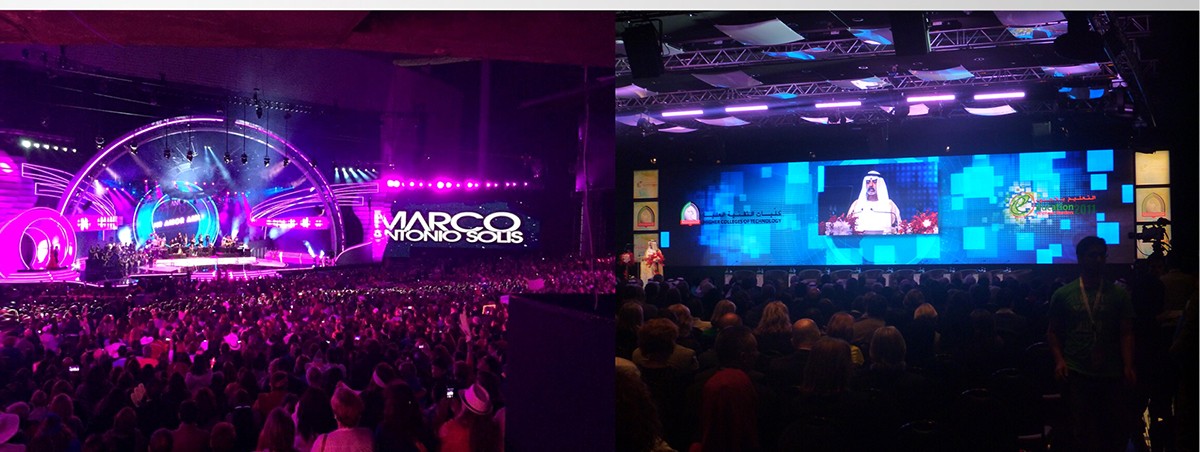

Application

fine pitch led display

Parameters

Model	Mini Pro 1.5	Mini Pro 1.9	Mini Pro 2.6
Pixel Pitch(mm)	P1.5	P1.9	P2.6
LED Type	Mini LED	Mini LED	SMD1515
Module Size(mm)	250*250	250*250	250*250
Module Resolution(px*px)	160*160	128*128	96*96
Cabinet Size(mmmmmm)	50050080	50050080	50050080
Cabinet Weight(kg)	8.5	8.5	8.5
Cabinet Resolution(px*px)	320*320	256*256	192*192
Horizontal Viewing Angle(Deg)	140	140	140
Vertical Viewing Angle(Deg)	140	140	140
Brightness	800	800	800
Gray Scale(bit)	14-16	14-16	14-16
Refresh Rate(Hz)	1920-3840	1920-3840	1920-3840
Max Power Consumption(W/㎡)	160 W/Cabinet	160 W/Cabinet	160 W/Cabinet
Average Power Consumption(W/㎡)	48 W/Cabinet	48 W/Cabinet	48 W/Cabinet
Certifications	CE / ETL / FCC / EMC	CE / ETL / FCC / EMC	CE / ETL / FCC / EMC
Working Environment	Indoor
