Mini Pro - Top Anti-collision Rental Products

Mini Pro - Top Anti-collision Rental Products

1. Mini 4 in 1 LED;

2. Semi-automatic Corner Protector;

3. Angle Lock, Arc Splicing;

4. Single Operator Fast Installation;

5. HCC Technology Black LED & High Brightness;

6. All in One Power Supply Box;

  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • MOQ:

    1
  • Warranty Period:

    2 years
  • Certificates:

    TUV-CE(EMC+LVD)/TUV-CB/ETL
  • Stock:

    Available in Both Shenzhen & Branch Warehouse
  • Global Branch & Office:

    Netherlands/Dubai/Japan/India
  • Aftersale Service:

    Provide Global After-Sale Service
Features

indoor rental led screen

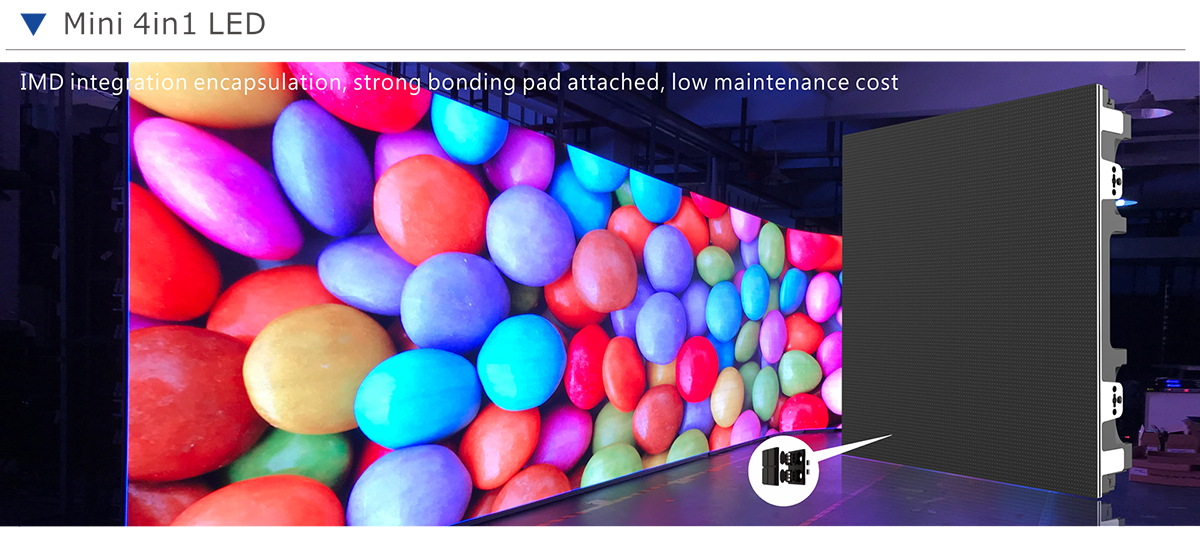

Mini 4 in 1 LED


IMD integration encapsulation, strong bonding pad attached, low maintenance cost


mini led


Semi-automatic Corner Protector


One button operation, protecting corner lamps


high protection led screen


Angle Lock, Arc Splicing


Support straight screen, convex & concave ±6°/±3°/ 0°


shaped splicing led screen


Single Operator Fast Installation


Ergonomic design, suitable for your hand type, easy to grip


easy installation led display


HCC Technology Black LED & High Brightness


20% higher brightness and 20% lower power consumption, better heat dissipation, improved contrast


enegy saving led display


All in One Power Supply Box


power box integrated design, support front & rear service. Real-time monitoring the temperature and operating time


indoor led display


Application


indoor small pitch led screen

Parameters

Model Mini Pro 1.5 Mini Pro 1.9
Mini Pro 2.6
Pixel Pitch(mm) P1.5
P1.9
P2.6
LED Type Mini LED
Mini LED
SMD1515
Module Size(mm) 250*250
250*250
250*250
      Module Resolution(px*px)
160*160
128*128
96*96
Cabinet Size(mm*mm*mm) 500*500*80
500*500*80
500*500*80
Cabinet Weight(kg) 8.5
8.5
8.5
Cabinet Resolution(px*px) 320*320
256*256
192*192
Horizontal Viewing Angle(Deg) 140
140
140
Vertical Viewing Angle(Deg) 140
140
140
Brightness 800
800
800
Gray Scale(bit) 14-16
14-16
14-16
Refresh Rate(Hz) 1920-3840
1920-3840
1920-3840
Max Power Consumption(W/㎡)

160 W/Cabinet

160 W/Cabinet
160 W/Cabinet
Average Power Consumption(W/㎡)
48 W/Cabinet
48 W/Cabinet
48 W/Cabinet
Certifications CE / ETL / FCC / EMC
CE / ETL / FCC / EMC
CE / ETL / FCC / EMC
Working Environment Indoor
