1. 16:9 Cabinet;
2. High brightness & high refresh rate;
3. Ultra-light & Ultra -thin;
4. Front & rear maintenance;
5. IP65 rating of protection;
6. Energy saving.
MOQ:
1Warranty Period:
2 yearsStock:
Available in Both Shenzhen & Branch WarehouseGlobal Branch & Office:
Netherlands/Dubai/Japan/IndiaAftersale Service:
Provide Global After-Sale Service
16:9 Cabinet
Unique screen ratio of outdoor LED screen in the industry, point-to-point displays 2K/4K image

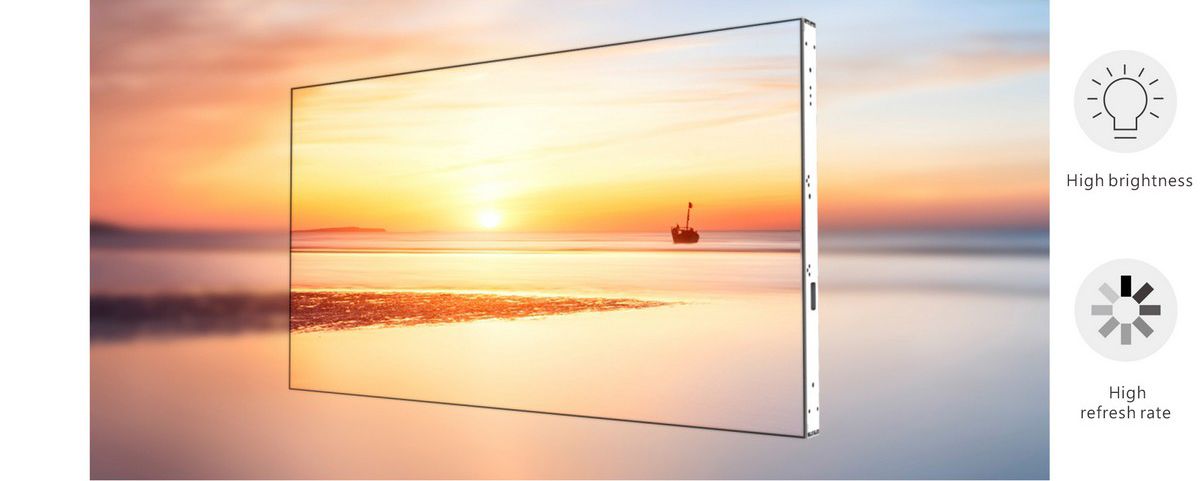

High Brightness & High Refresh Rate
With a brightness of 9000nits and a refresh rate o 3840Hz, readable under the sunshine

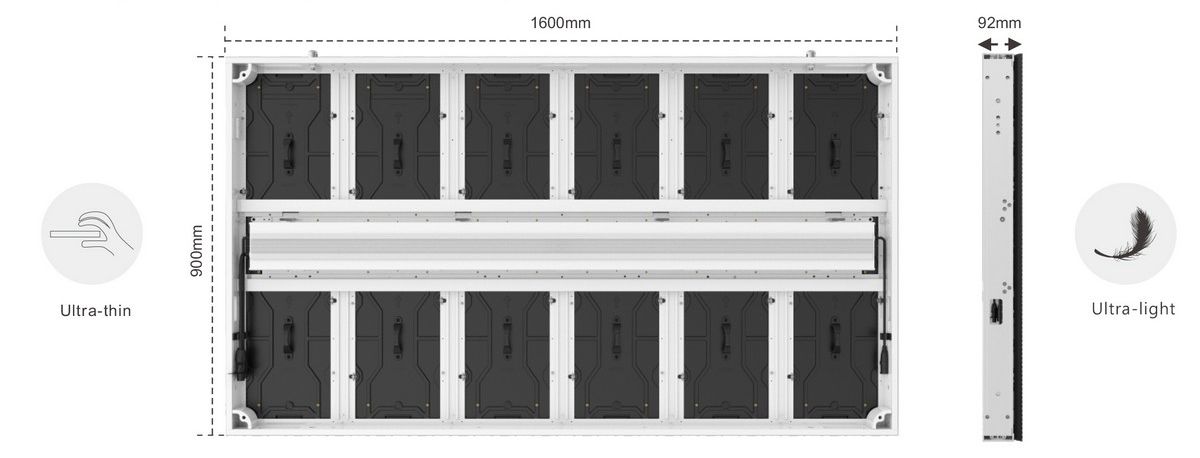

Ultra-light & Ultra-thin
Aluminum cabinet. With a weight of 27kg/㎡, the installation speed improves by 20%, lower transportation costs

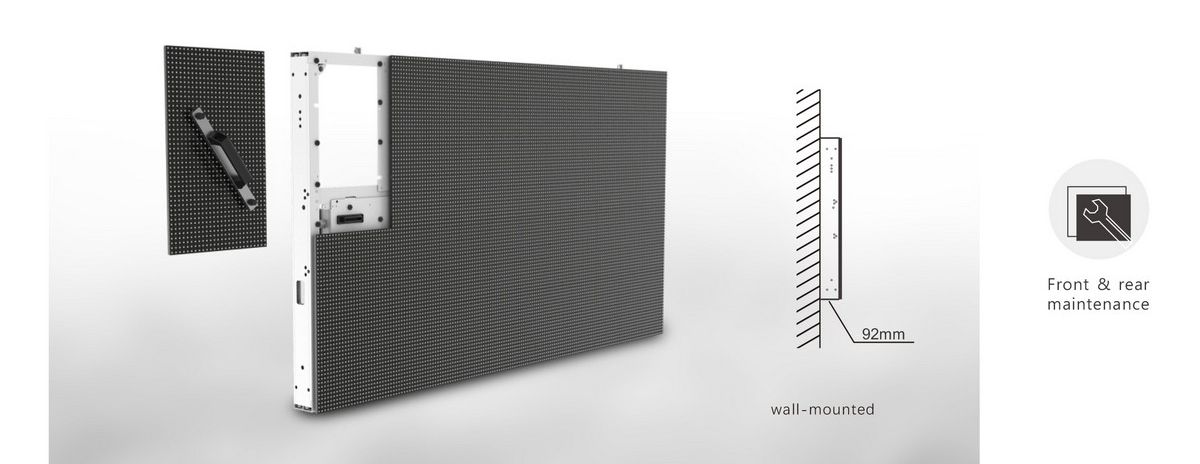

Front & Rear Maintenance
Supports fully wall-mounted, no steel structure required, easy maintenance

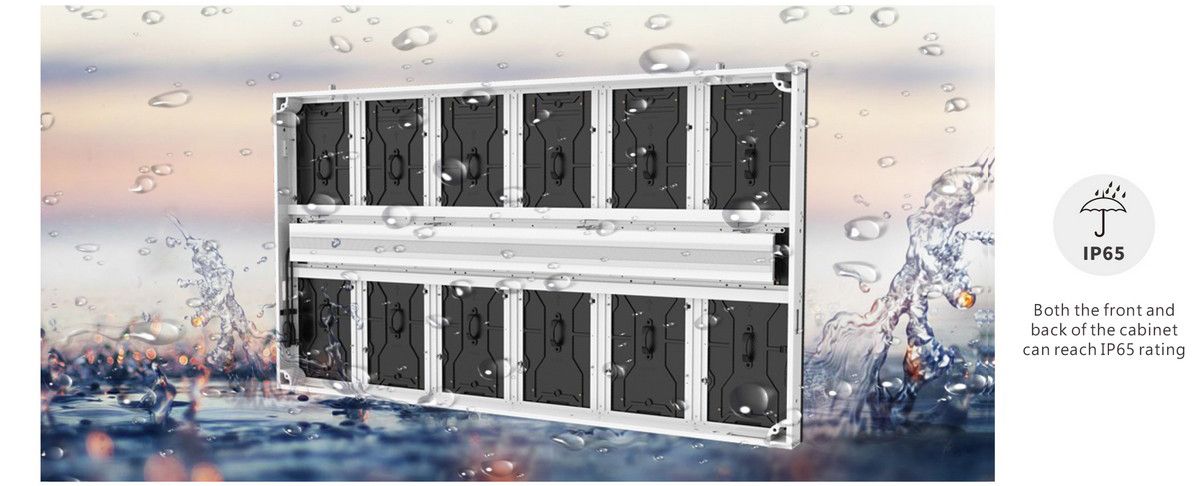

IP65 Rating of Protection
Separate waterproof modules, suitable for various outdoor environments, safer use

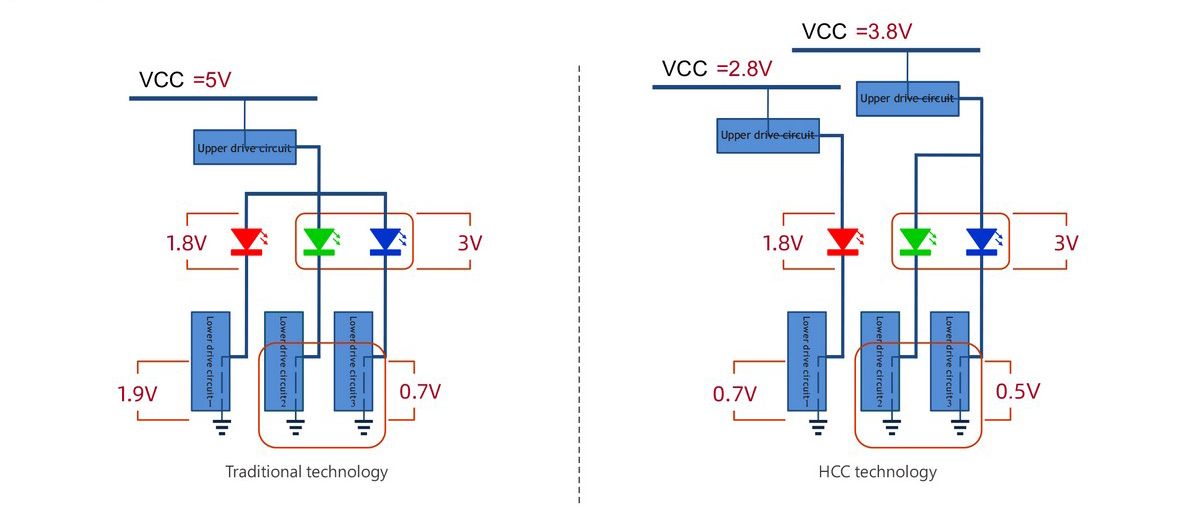

Energy Saving
Compared with traditional technology, the HCC technology can save 30% of energy
Model | P8 |
P10 |
P16 |
Pixel Pitch |
8.33 |
10.2 |
16.66 |
Pixel Density(dot/m2) |
14400 |
9604 |
3600 |
LED Type |
SMD |
SMD |
SMD |
Module Size(mm*mm) |
266.67*450 |
266.67*450 |
266.67*450 |
Cabinet Size(mm*mm*mm) |
1600*900*92 |
1600*900*92 |
1600*900*92 |
Cabinet Weight(±0.25kg) |
37 |
37 |
37 |
Cabinet Resolution(px*px) |
192*108 |
156*88 |
96*54 |
Module Resolution(px*px) |
32*54 |
26*44 |
16*27 |
Horizontal Viewing Angle(Deg) |
140 |
140 |
140 |
Vertical Viewing Angle(Deg) |
110 |
110 |
110 |
Brightness(cd/m2) |
8000-9000 |
8000-9000 |
7000-8000 |
Gray Scale(bit) |
14 |
14 |
14 |
Refresh Rate(Hz) |
1920-3840 |
1920-3840 |
1920-3840 |
Max Power Consumption(W) |
921 |
921 |
921 |
Average Power Consumption(W) |
368 |
368 |
368 |
Ingress Protection |
IP65 |
IP65 |
IP65 |
Working Environment |
Outdoor |
Outdoor |
Outdoor |
