MPA Pro - Outdoor Fixed LED Display

MPA Pro - Outdoor Fixed LED Display

1. Different Cabinet Size;

2. Total Front & Rear Maintenance;

3. High Refresh Rate & Mixed Splicing;

4. Ultra-light and Ultra-thin;

5. Multiple Installation Methods;

6. Stable and High Protection.




  • MOQ:

    1
  • Warranty Period:

    2 years
  • Certificates:

    FCC/EMC
  • Stock:

    Available in Both Shenzhen & Branch Warehouse
  • Global Branch & Office:

    Netherlands/Dubai/Japan/India
  • Aftersale Service:

    Provide Global After-Sale Service
Features

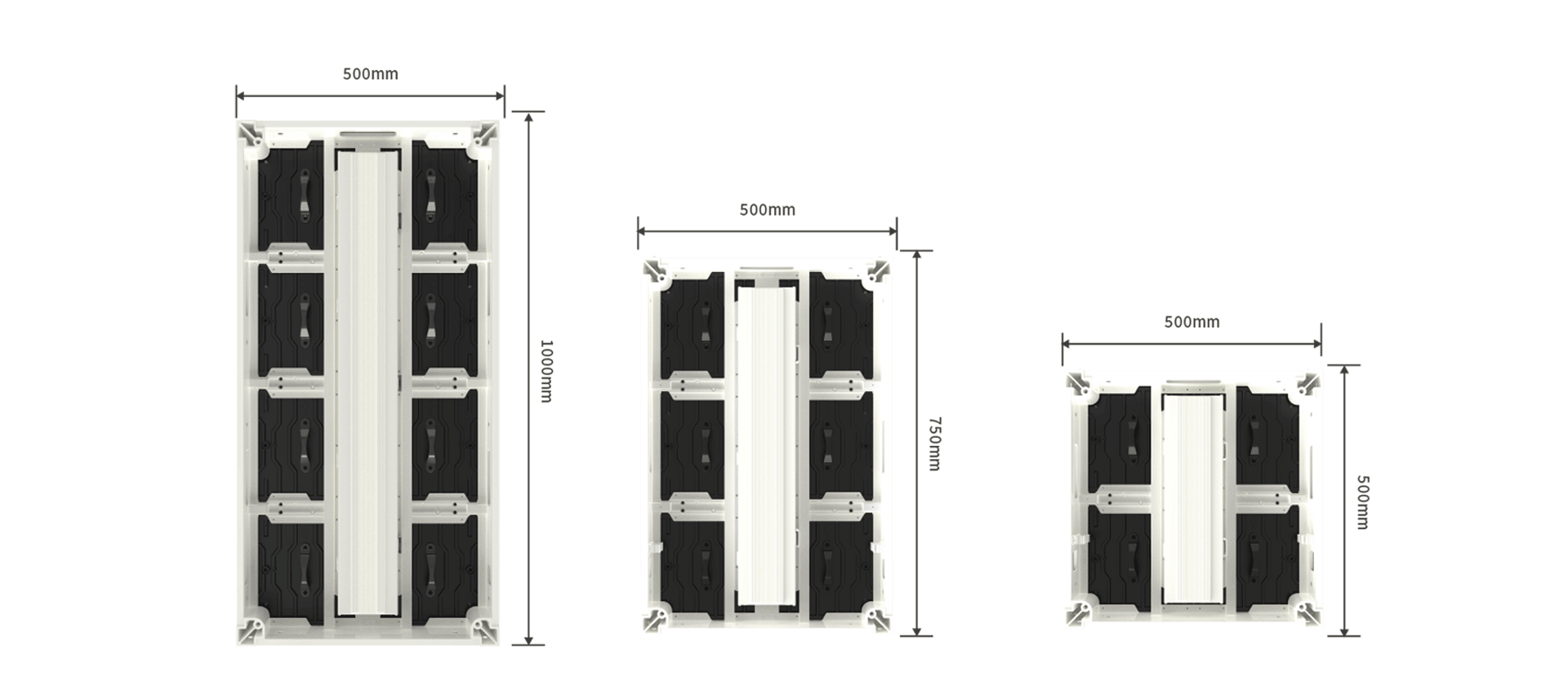

Different Cabinet Size


Convenient to have more screen size choices


different cabinet size led screen


Total Front & Rear Maintenance


outdoor led screen


High Refresh Rate & Mixed Splicing


Smooth and clear picture quality; 500*500mm splice with 500*1000mm easily


high refresh rate led screen


Ultra-light and Ultra-thin


Save the cost of steel structure and installation


ultra light and ultra thin led screen


Multiple Installation Methods


Supports wall-mounted, hanging


wall mounted screen, hanging screen


Stable and High Protection


It can work outdoor for all-weather


high protection outdoor led screen

Parameters
Model MPA Pro 2.6 MPA Pro 3.91
MPA Pro 4.81
MPA Pro 5.95
Pixel Pitch P2.6
P3.91
P4.81
P5.95
Pixel Density(dot/m2) 147456
65536
43264
28227
LED Type SMD1515
SMD1921
SMD1921
SMD1921
Module Size(mm*mm) 250*250
250*250
250*250
250*250
Cabinet Size(mm*mm*mm) 500*500/500*750
/500*1000
500*500/500*750
/500*1000
500*500/500*750
/500*1000
500*500/500*750
/500*1000
Cabinet Weight(±0.25kg) 9/12.2/16
9/12.2/16
9/12.2/16
9/12.2/16
Cabinet Resolution(px*px) 192*192/192*288
/192*384
128*128/128*192
/128*256
104*104/104*156
/104*208
84*84/84* 126
/84*168
Horizontal Viewing Angle(Deg) 160
160
160
160
Vertical Viewing Angle(Deg) 120
120
120
120
Brightness(cd/m2) 4000
4500
5000
5000
Refresh Rate(Hz) 1920-3840
1920-3840
1920-3840
1920-3840
Max Power Consumption(W) 608W/m²
608W/m²
640W/m²
608W/m²
Average Power Consumption(W)
240W/m²
240W/m²
250W/m²
240W/m²
Ingress Protection IP65
IP65
IP65
IP65
Working Environment Outdoor
Outdoor
Outdoor
Outdoor
Projects
  • Hercules P8 for Bingjiang Building, China
    Hercules P8 for Bingjiang Building, China

    Project Type: Outdoor Product Series: Hercules P8 Project Address: China Project Date: 2020.04 Project Area: 78 ㎡
