MPA Mini - High Protection & Definition Outdoor Small-Pitch LED Display

MPA Mini - High Protection & Definition Outdoor Small-Pitch LED Display

1. Patented DHR Mask, Professional Design;

2. Higher Precision, Greater Flatness;

3. Stunning HD Display;

4. IP69K Full Protection;

5. Easy Installation & Maintenance;

6. Reliable Stability;

  • MOQ:

    1
Features


Patented DHR Mask, Professional Design


The patented DHR (Deformation and High-temperature Resistance) Mask is specially designed for outdoor small-pitch products to solve the problems of warped and bulged masks resulted from high temperature, lamp failure caused by extrusion of deformed masks, and black spots in the side view.





Higher Precision, Greater Flatness


One-piece molded die-casting aluminum cabinets ensure high precision for high flatness, good for P1.X outdoor small-pitch LED display splicing; Sturdy die-casting aluminum shells resist distortion well in the high temperature.




Stunning HD Display


Super-high contrast ratio, 4500nits high brightness, and 3840Hz high refresh rate guarantee colorful & gorgeous HD/4K/8K display. Meanwhile MPA Mini supports HDR display to create exquisite & sharp picture quality for a close viewing.




IP69K Full Protection


Specific IP69K extreme high protection can withstand the flushing of high pressure and hightemperature water to suit all cruel conditions, enhancing the screen’s lifespan.

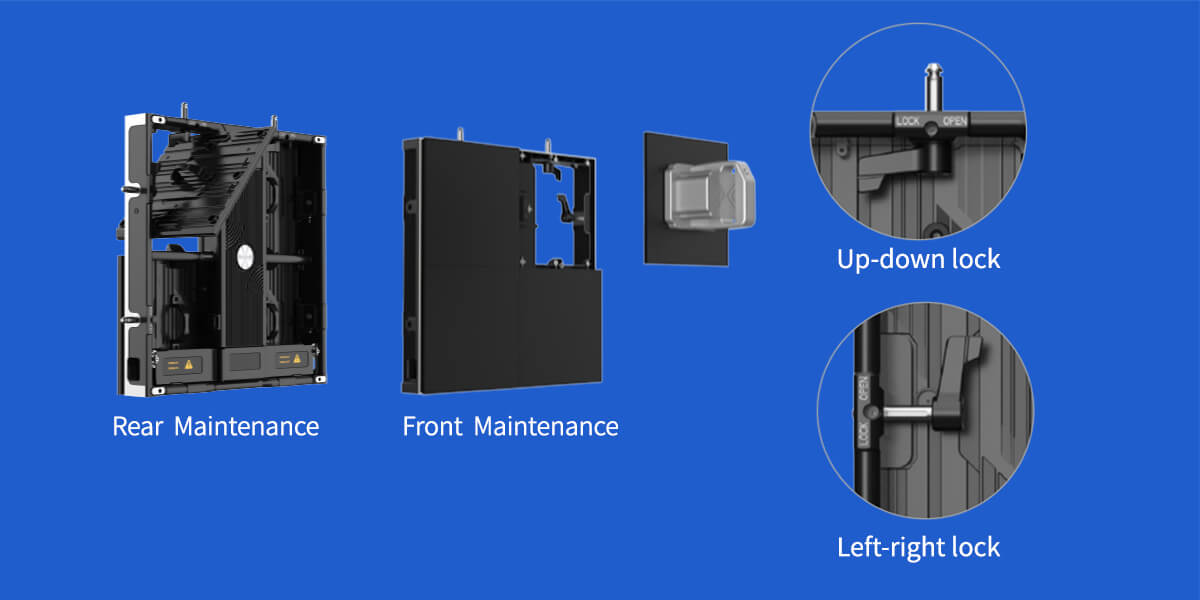

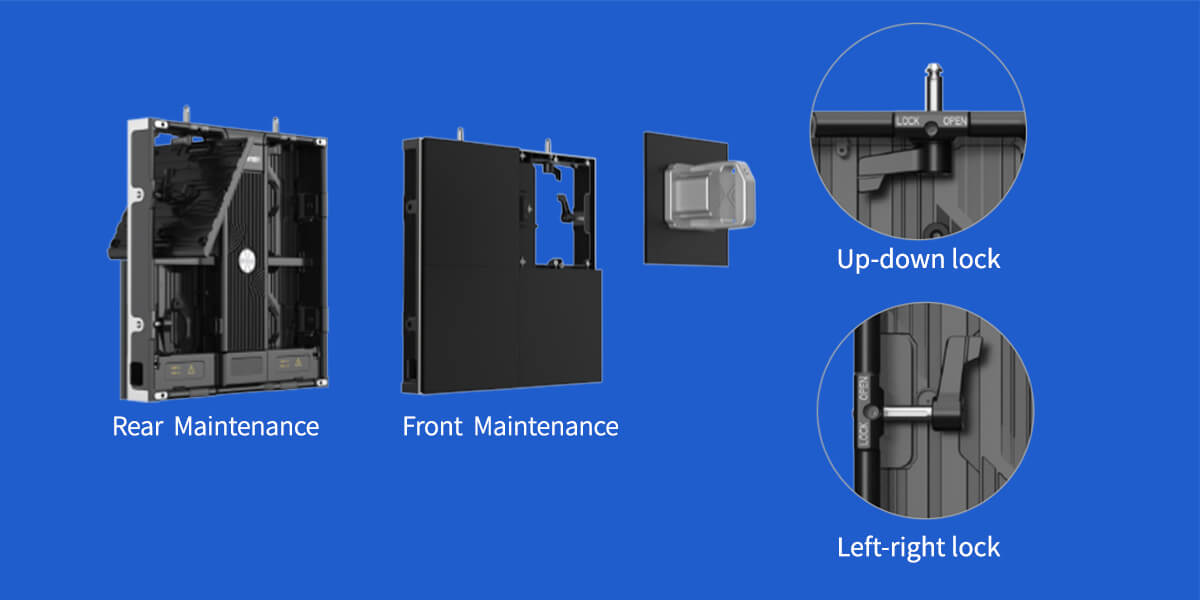

Easy Installation & Maintenance


Fast lock enables the hassle-free installation to increase efficiency; Front & rear maintenance are available to fit in various outdoor application scenarios.

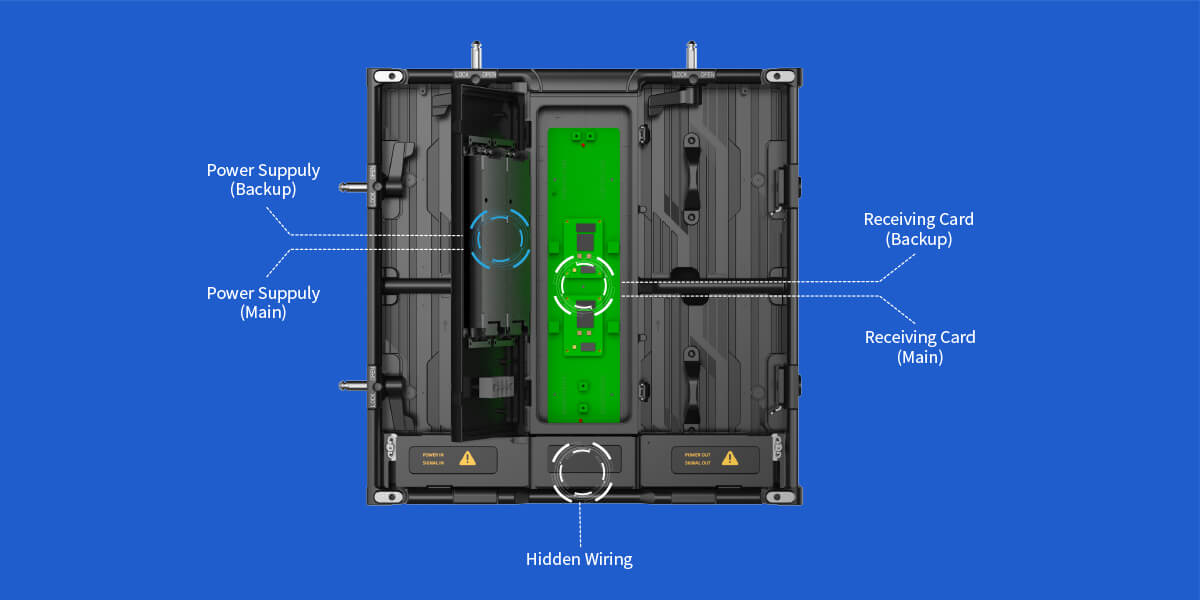

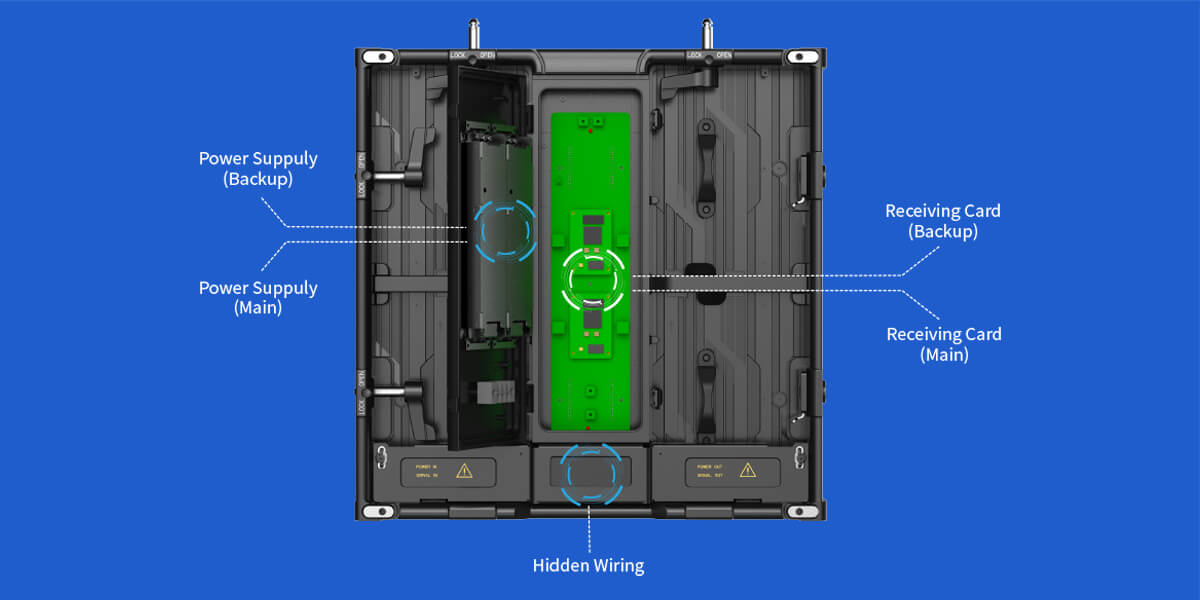

Reliable Stability


Optional dual backup for power supply and receiving card solves the LED wall blackout problem; Excellent heat dissipation and hidden wiring also ensure daily safe and stable operation.



Parameters
Model MPA Mini2.6 MPA Mini2.9
Pixel Pitch(mm) 2.6 2.9
Panel Size W×H×D (mm) 500*500*80 500*500*80
Panel Resolution W×H 192*192 168*168
Panel Material Die-Casting Aluminum Die-Casting Aluminum
Weight (Kg/pc) 10 10
Brightness (nits) 4500 4500
Serviceability Front / Rear Front / Rear


Projects
  • VA P1.4、VHII P1.4、 LED Floor Tile P2.5 for Water Resources Department of Guangdong Province
    VA P1.4、VHII P1.4、 LED Floor Tile P2.5 for Water Resources Department of Guangdong Province

    Project type: Indoor Product: VA P1.4、VHII P1.4、 LED Floor Tile P2.5 Project Address:Guangdong Project Date: 2019 Project Area: 190㎡

  • VF P1.5、VAII P1.5 for NBC Washington, USA
    VF P1.5、VAII P1.5 for NBC Washington, USA

    Project Type: Indoor Product Series: VF P1.5、VAII P1.5 Project Address:  USA Project Date: 2021 Project Area: 25㎡、10㎡ NEWS:https://www.esdled.com/liantronics-fine-pitch-led-video-walls-renewed-nbc-washington-studios_n219

  • VMQ P2.5 for Dongchang Hotel, Dongguan, Guangdong
    VMQ P2.5 for Dongchang Hotel, Dongguan, Guangdong

    Project type: Indoor Product: VMQ P2.5 Project Address: Dongguan, Guangdong Project Date: 2021 Project Area: 105㎡
