MPA ProⅡ Series - Outdoor Small-pitch Fixed LED Display

MPA ProⅡ Series - Outdoor Small-pitch Fixed LED Display

1. Die-casting Aluminum Panel

2. Eye-catching Visuals

3. Dual Backups with High Brightness as Ever

4. IP65 High Protection

5. Creative Splicing

6. Easy Installation & Maintenance

  • MOQ:

    1
  • Warranty Period:

    2 years
  • Certificates:

    FCC/EMC
  • Stock:

    Available in Both Shenzhen & Branch Warehouse
  • Global Branch & Office:

    Netherlands/Dubai/Japan/India
  • Aftersale Service:

    Provide Global After-Sale Service
Features

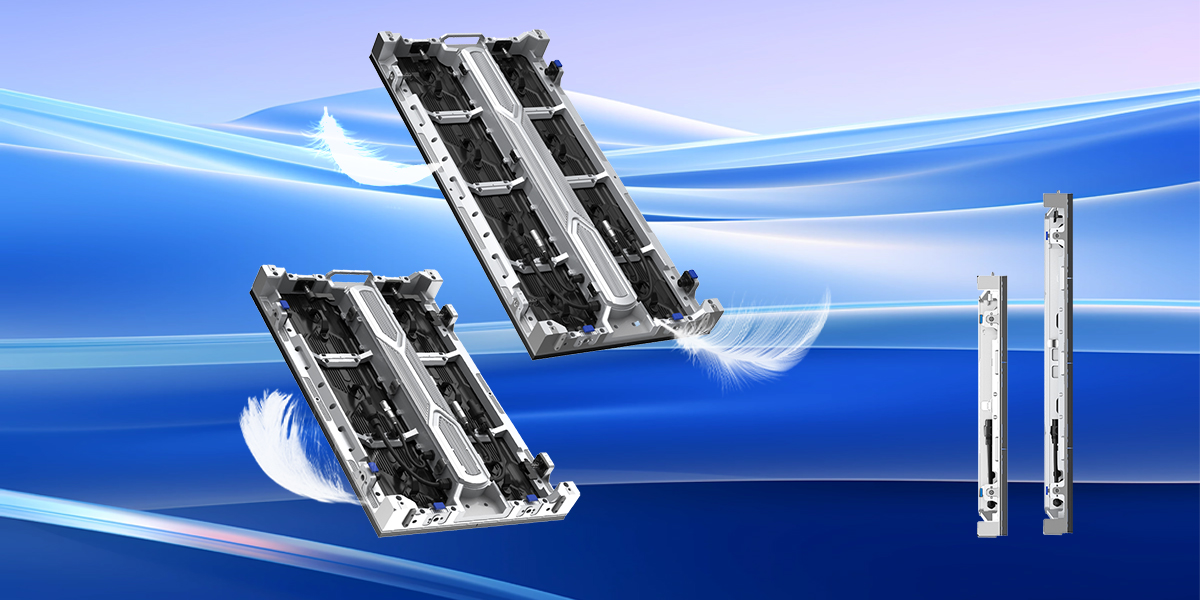

Die-casting Aluminum Panel


High-precision cutting for high flatness
29kg/㎡ lightweight panel design for effortless single-person handling

and save transportation and labor costs





Eye-catching Visuals


Excellent heat dissipation for ultra-high color consistency

Support black LEDs for ultra-high contrast ratio

DHR (Deformation and High-temperature Resistance) masks (for P2.6 & P2.9 models)
eliminate warped and bulged masks and side-view black spots


outdoor led screen



Dual Backups with High Brightness as Ever


Support backups of power supply and receiving cards to ensure high stability,

and yet without compromising brightness



high refresh rate led screen



IP65 High Protection


IP65 rated from both front and rear

Support IP66 higher protection

Magnetic module design with safety ropes





Creative Splicing


Mixed splicing between different-sized panels

45° bevel-cut modules & panels for L-shaped seamless splicing

Mixed splicing with E-Corner Series for round corner shapes



wall mounted screen, hanging screen



Easy Installation & Maintenance


Support direct wall mounting with finished screen as thin as 90mm

Optional fast locks for quick installation

All panel parts support both front & rear maintenance

Left-right universal modules reduce spare costs

Support smart module function for pixel inspection and auto data retrieval after module replacement



high protection outdoor led screen


Parameters
Model
MPA ProⅡ 1.9
MPA ProⅡ 2.6
MPA ProⅡ 2.9
MPA ProⅡ 3.9
MPA ProⅡ 4.8
Pixel Pitch(mm) 1.9
2.6 2.9
3.9
4.8
Panel Size(mm)
500*1000*90 / 500*750*90
500*1000*90 / 500*750*90
500*1000*90 / 500*750*90
500*1000*90 / 500*750*90
500*1000*90 / 500*750*90
Panel Resolution
256*512 / 256*384
192*384 / 192*288
168*336 / 168*252
128*256 / 128*192
104*208 / 104*156
Weight (Kg/pc)
14.5 / 11.5
14.5 / 11.5
14.5 / 11.5
14.5 / 11.5
14.5 / 11.5
Brightness (nits)
3500
4500-5000
4500-5000
5000-6000
5000-6000
Panel Material
Die - Casting Aluminum
Maintenance
Front / Rear
