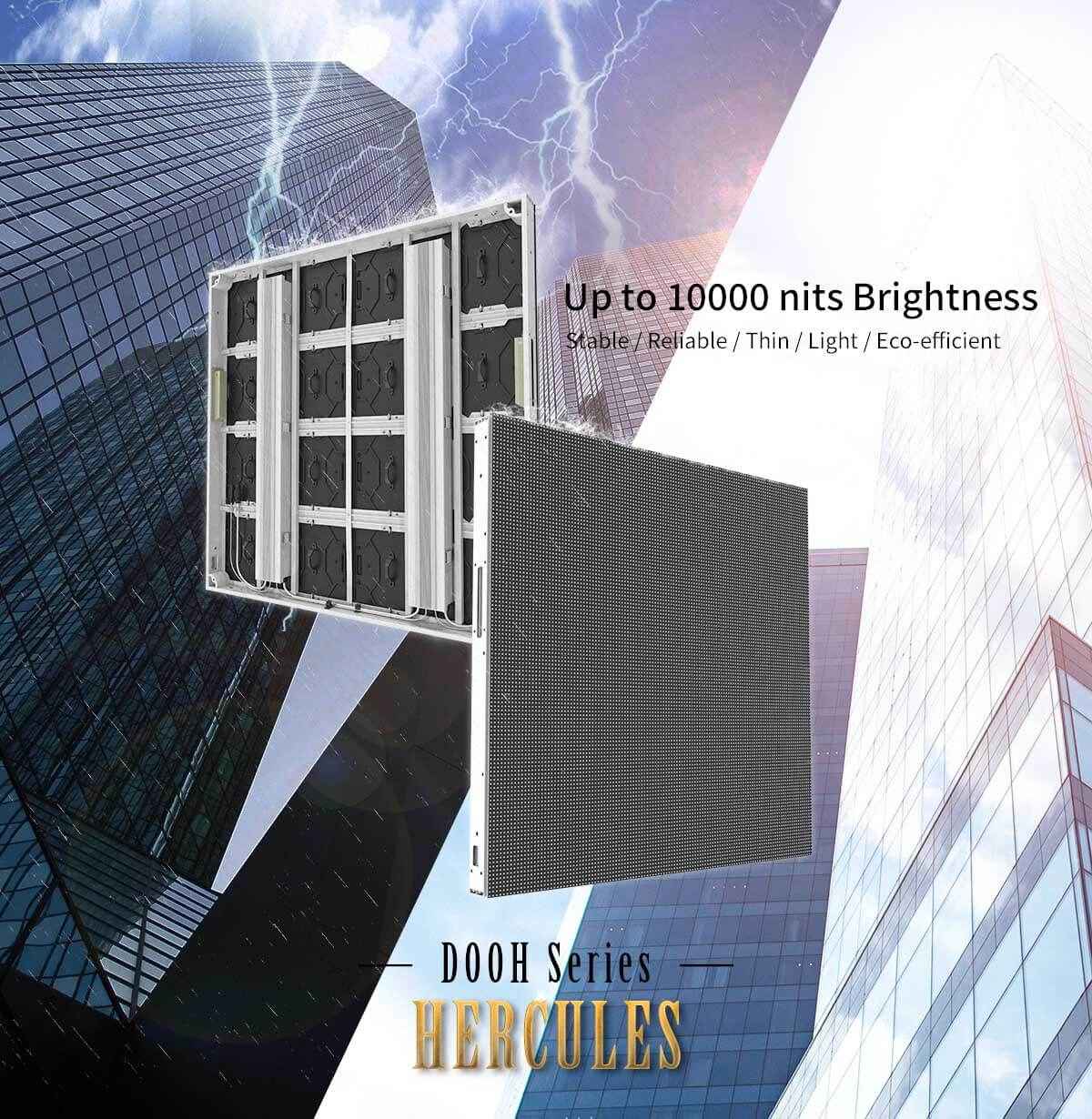

Outdoor LED display has always occupied the dominant position of fixed LED display. Eastar traditional OA products have some shortcomings in brightness, heat dissipation, maintenance and power consumption. In order to improve these deficiencies, Hercules came into being. Hercules video wall screen has high brightness, low power consumption, good heat dissipation, good waterproof effect, simple appearance, light and thin cabinet, diversified size, etc.
MOQ:
1Warranty Period:
2 YearsStock:
Available in Both Shenzhen & Branch WarehouseGlobal Branch & Office:
Netherlands/Dubai/Japan/IndiaAftersale Service:
Provide Global After-Sale Service
10000 Nits Brightness
The screen is still visible in direct sunlight

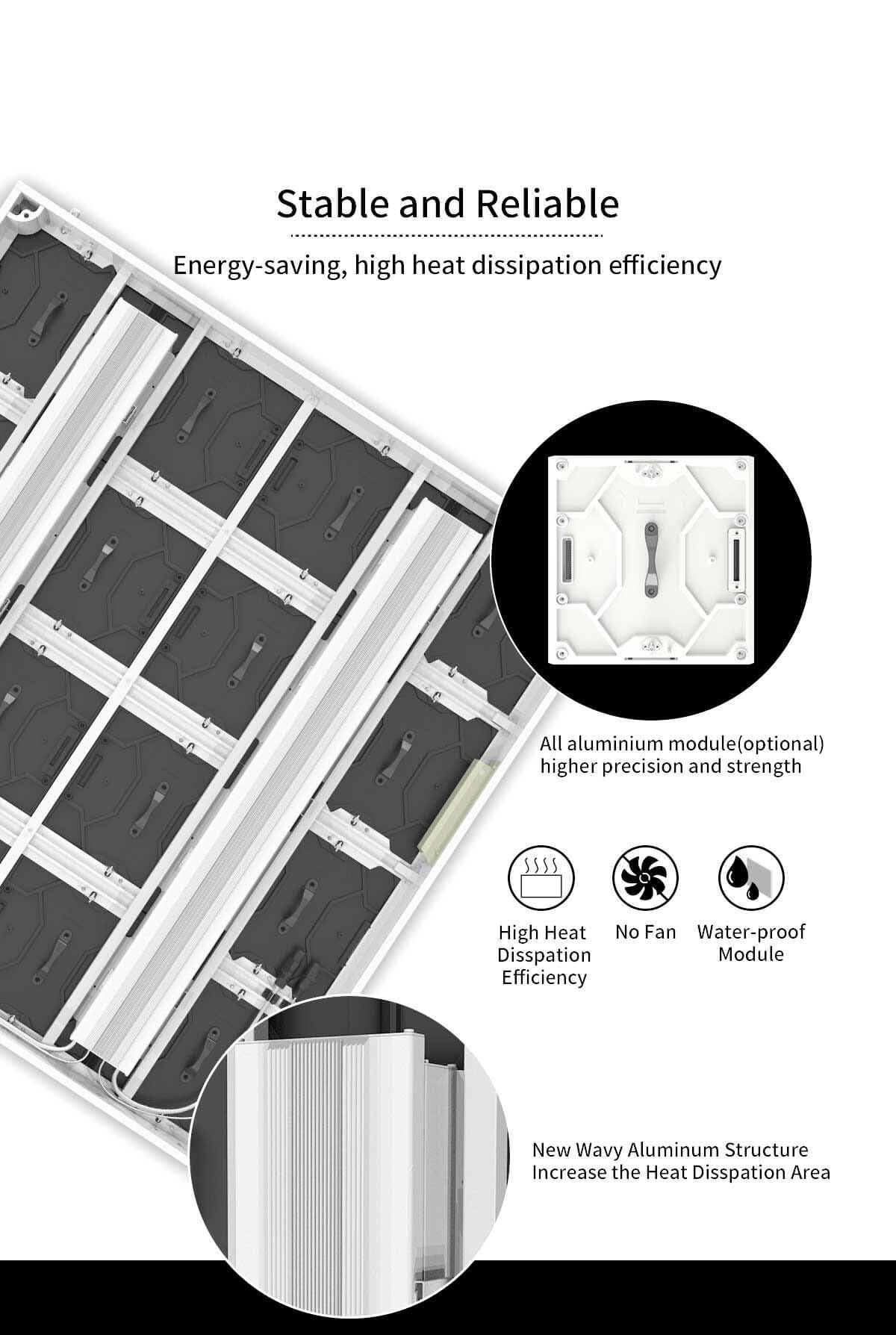

Stable and Reliable
Energy-saving, high heat dissipation efficiency

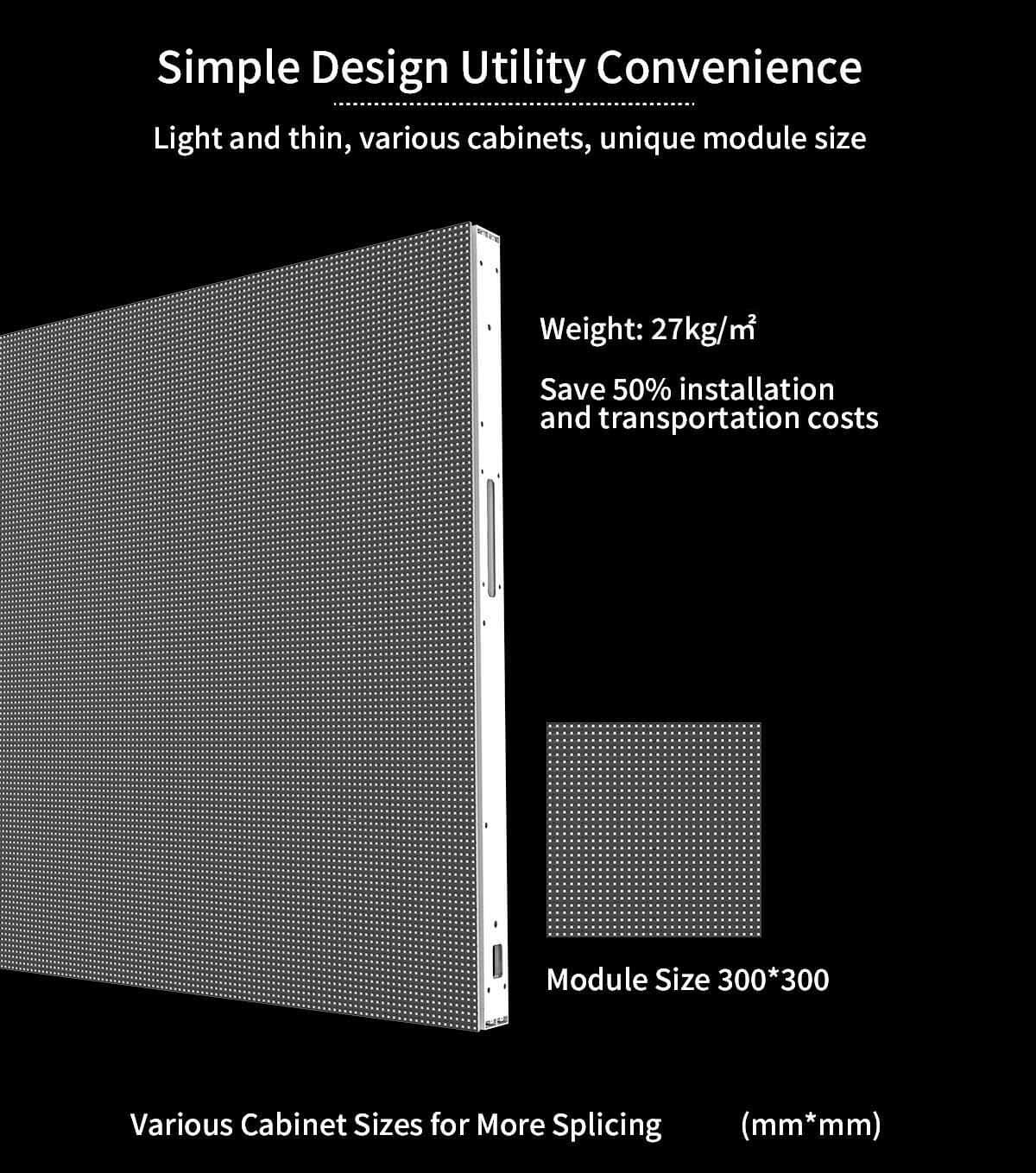

Simple Design Utility Convenience
Light and thin, various cabinets, unique module size

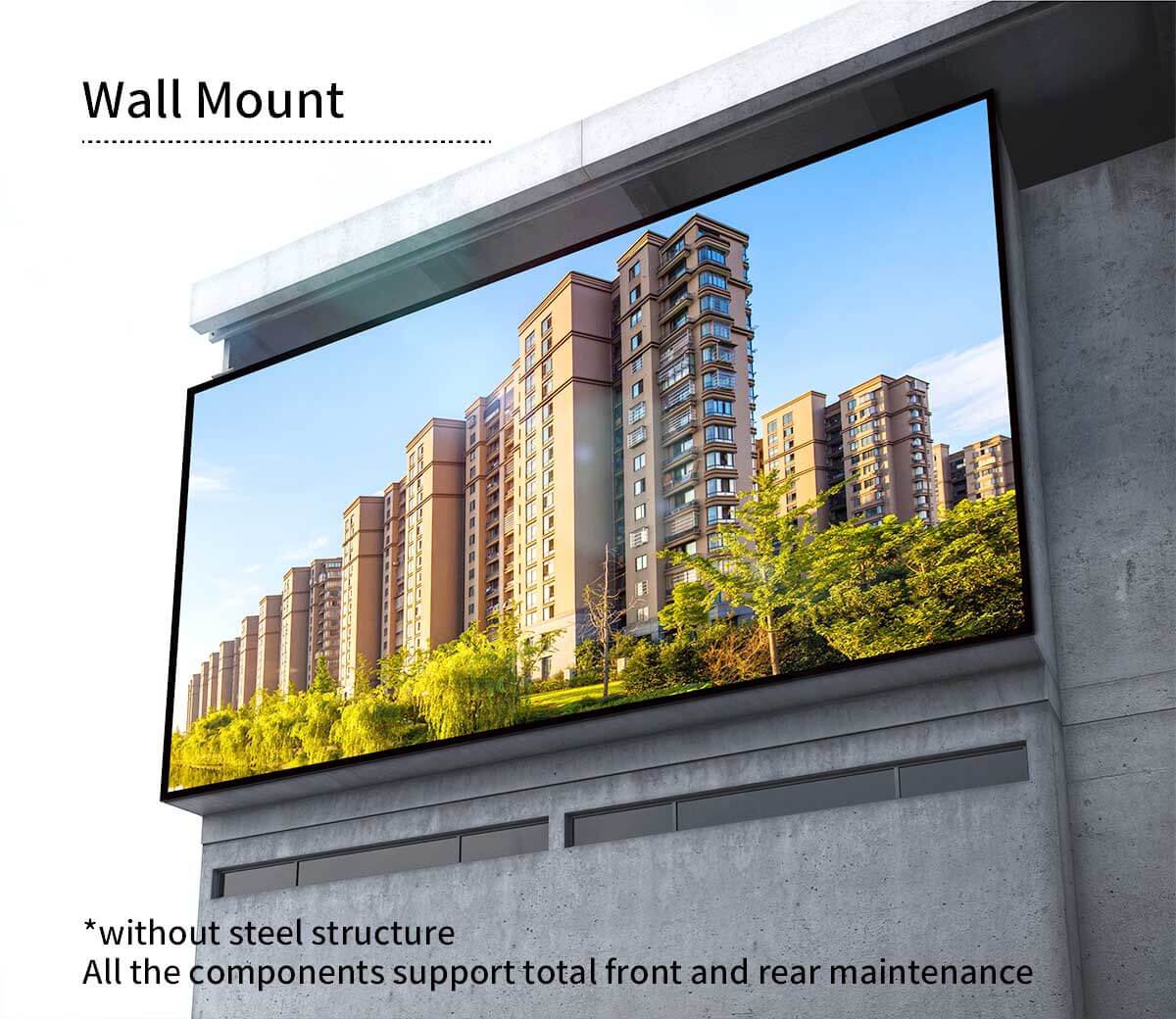

Wall-mounted

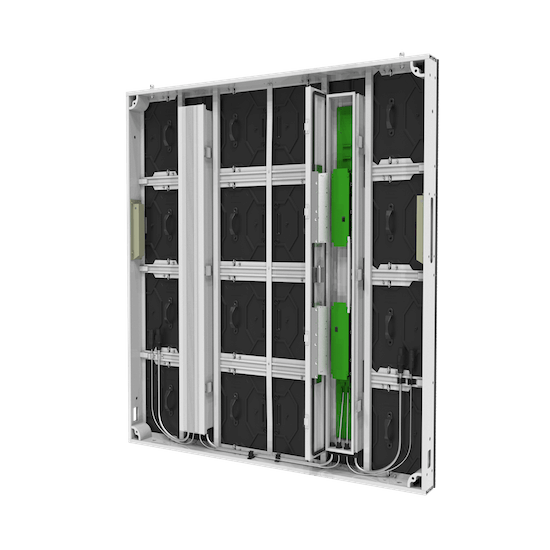

Without steel structure. All the components support total front and rear maintenance

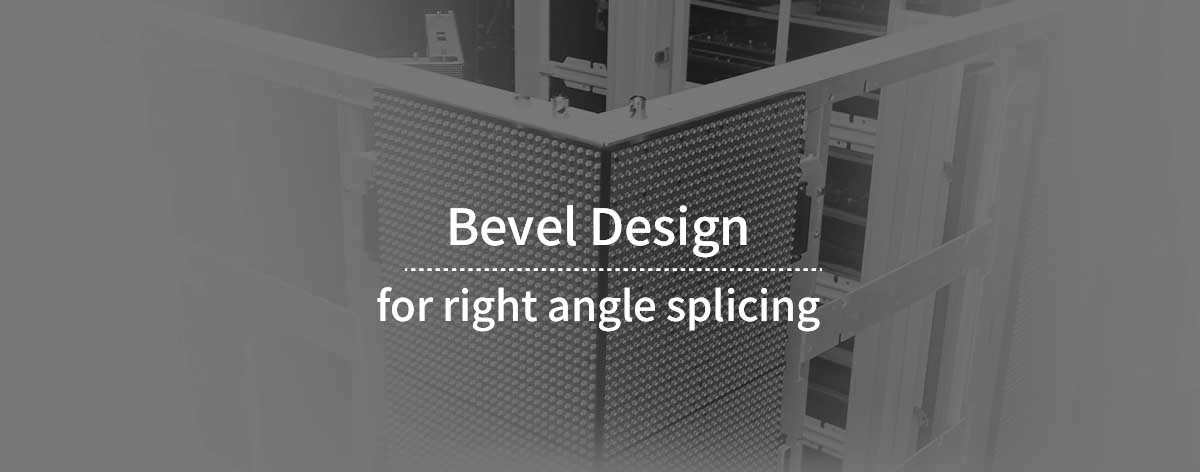

Bevel Design
For right angle splicing
| Model | Hercules6.8 | Hercules8.3 | Hercules10 | Hercules16.7 |
| Pixel Pitch(mm) | 6.8 | 8.3 | 10 | 16.7 |

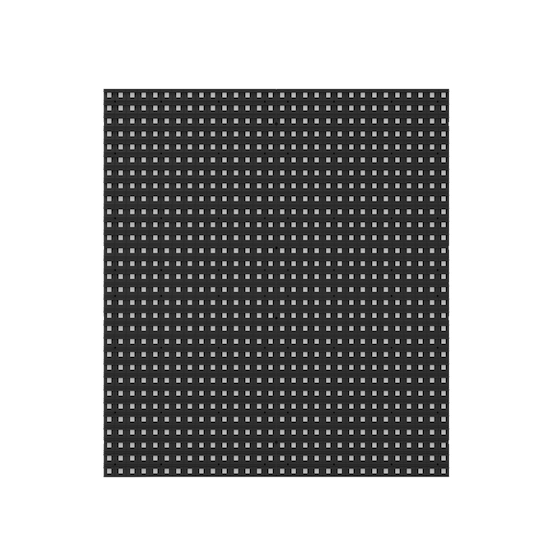

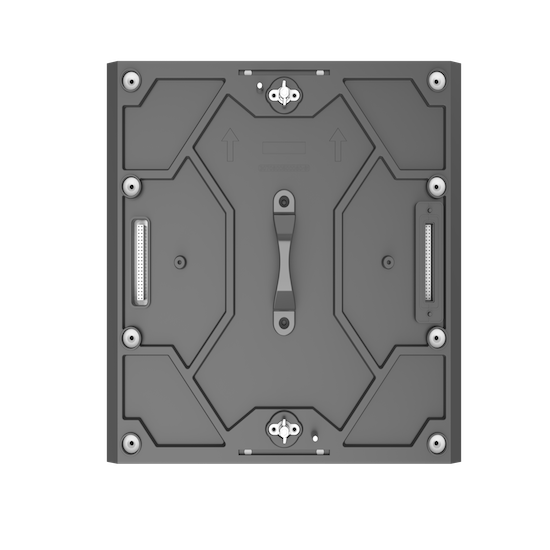

| Module Size W×H×D (mm) | 300*300 |
300*300 |
300*300 |
300*300 |
| Module Resolution W×H | 44*44 |
36*36
|
30*30 |
18*18 |
| Panel Size(mm) |
1200*1200/1200*900/900*900 |
|||
| Panel Resolution | 176*176/176*132/132*132 | 144*144/144*108/108*108 | 120*120/120*90/90*90 | 72*72/72*54/54*54 |
| Weight(kg/㎡) | 27 | 27 | 27 | 27 |
|
Brightness(nits) |
7000 |
10000 |
10000 |
8000 |
| Panel Material |
Aluminum |
|||
| Serviceability |
Front and Rear |
|||
Project Type: Outdoor Product Series: Hercules10 Project Address: Bahrain Project Date: 2022 Project Area: 700 ㎡
Project Type: Outdoor Product Series: Hercules P8 Project Address: China Project Date: 2020.04 Project Area: 78 ㎡
UF outdoor fixed led display support both front and rear maintenance, it has P6.6, P8.3, P10 and P16.6 Led video wall, outside led screen has 800*800 led cabinet and 1200*1200mm cabinet, outdoor led screen display support both SMD and DIP LEDs, with 16 bit gray scale & 1920hz refresh rate, 800*800 cabinet weights only 24kg, 50% lighter than traditional outdoor fixed led panel.
1. Perimeter led screen adapts to any environments. quick Installation; 2. High Refresh Rate & Wide Viewing Angle; 3. Fast Installation; 4. Emergency Access Design; 5. Player Protective Design; 6. Full Redundancy Design for Power and Signal.
1. 16:9 Cabinet; 2. High brightness & high refresh rate; 3. Ultra-light & Ultra -thin; 4. Front & rear maintenance; 5. IP65 rating of protection; 6. Energy saving.
1. Different Cabinet Size; 2. Total Front & Rear Maintenance; 3. High Refresh Rate & Mixed Splicing; 4. Ultra-light and Ultra-thin; 5. Multiple Installation Methods; 6. Stable and High Protection.
1. Born for Outdoors; 2. Ultra-Thin & Light Design; 3. Excellent Heat Dissipation; 4. Flexible Sizes; 5. Complete Front Maintenance.
1. Excellent Display Effect, True-to-Life Presentation； 2. Multiple Protections, Super High Stability； 3. Dual Cooling Channels, Longer Working Hours； 4. Wider Viewing Angle, More Eyeballs Covered； 5. Convenient Serviceability, Greater Flexibility； 6. Patented Technology, Revolutionary Creativity；
1. Ultra-Thin & Light Design； 2. Superior Heat Dissipation； 3. Bright & Sharp All the Time； 4. High Reliability； 5. Multi-Scenario Installation & Convenient Maintenance；
