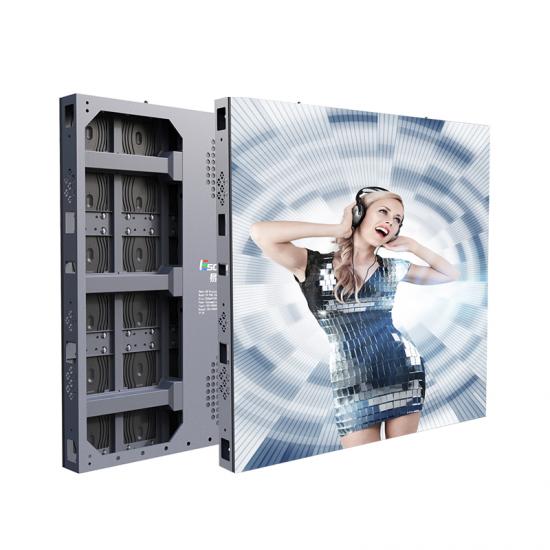

UF Series-Outdoor Fixed LED Display

UF Series-Outdoor Fixed LED Display

UF outdoor fixed led display support both front and rear maintenance, it has P6.6, P8.3, P10 and P16.6 led signs, it has 800*800 led cabinet and 1200*1200mm cabinet, it support both SMD and DIP LEDs, with 16 bit gray scale & 1920hz refresh rate, 800*800 cabinet weights only 24kg, 50% lighter than traditional outdoor fixed led panel.


  • Product Origin:

    Shenzhen China
  • Shipping Port:

    Shenzhen
  • MOQ:

    1
  • Warranty Period:

    2 years
  • Certificates:

    TUV-CE(EMC+LVD)/FCC/TUV-CB/ETL
  • Stock:

    Available in Both Shenzhen & Branch Warehouse
  • Global Branch & Office:

    Netherlands/Dubai/Japan/India
  • Aftersale Service:

    Provide Global After-Sale Service
Features


Outdoor Fixed UF Series

P6.66/P8.33/P10/P16.66



Ingress Protection 65/Easy Maintenance/High Brightness&Refresh Rate/Aluminum Cabinet/Light





Independent Ingress Protection for Cabinet & Module

Better waterproof & dustproof(front IP65, rear IP54)






Light with High Intensity/Simple Structure/No Noise





Optional High Brightness, Refresh Rate & Gray Scale

Clear pictures in direct sunlight





Support Both Front & Rear Maintenance/Multiple Installation Options




MPA Plus-Projects




Parameters

Model UF6.67 UF8.33
UF10
UF16.66
Pixel Pitch(mm) 6.66 8.33 10 16.66
Pixel Density(dot/m2) 22500 14400 10000 3600
LED Type SMD2727 SMD3535
SMD3535
DIP346
Module Size(mm*mm) 200*400 200*400
200*400
200*400
Cabinet Size(mm*mm*mm) 800*800*105 1200*1200*105 1200*1200*105
1200*1200*105
Cabinet Weight(±0.25kg) 24 38 38 38
Cabinet Resolution(px*px) 120*120 144*144 120*120 72*72
Horizontal Viewing Angle(Deg) 140 140 140 100
Vertical Viewing Angle(Deg) 80 80 80
70
Brightness(cd/m2) 6000 6000 6000 9000
Gray Scale(bit) 16 16
16
16
Refresh Rate(Hz) 1920 1920
1920
1920
Max Power Consumption(W/㎡) 625 625 700 625
Average Power Consumption(W/㎡)
240 240 250 240
Ingress Protection IP65 IP65
IP65
IP65
Working Environment Outdoor Outdoor
Outdoor
Outdoor

Projects
  • UF series in mall, Dubai
    UF series in mall, Dubai

    Project Type: Oudoor Product: UF series Project address: Dubai, UAE Project date: 2018.2 Project area: 416㎡
