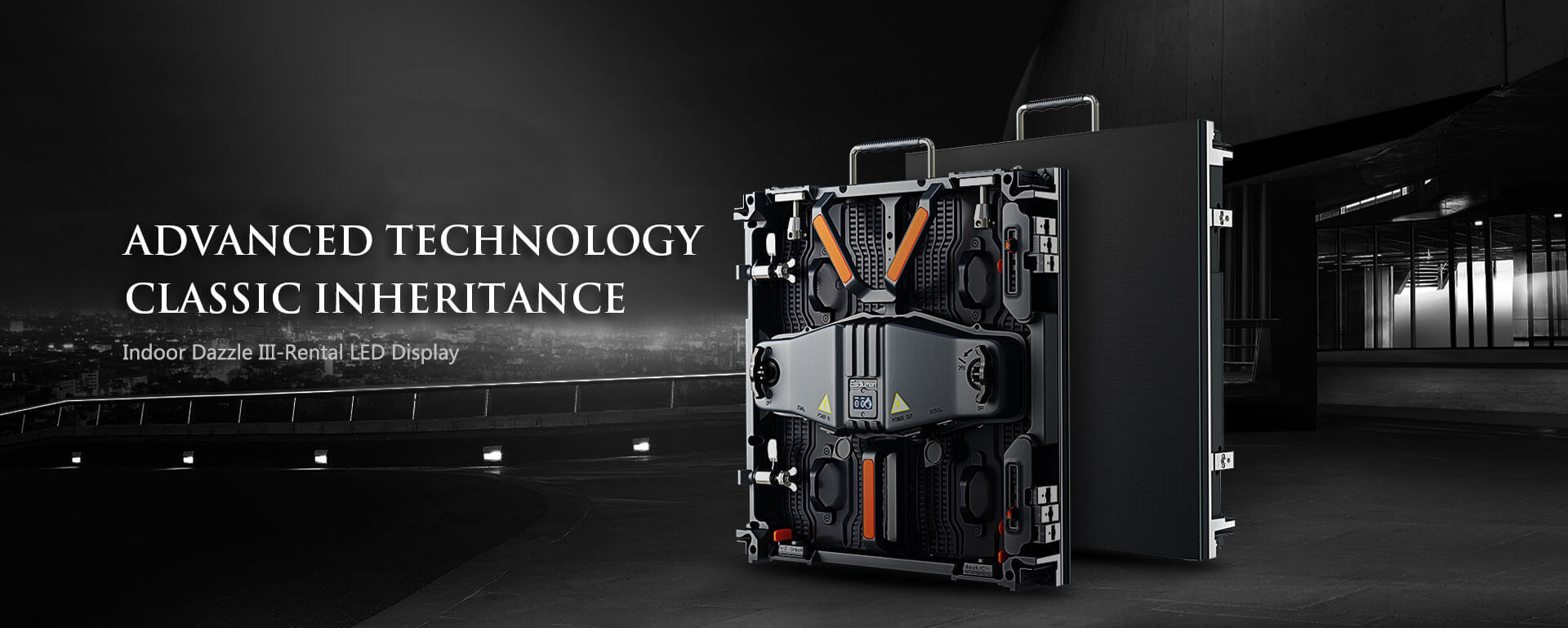

Indoor Dazzle III-Rental LED Display

Indoor Dazzle III-Rental LED Display

Esdlumen Dazzle III is a LED video wall which has the capabilities to be a flat screen, or to curve at 5° in either a concave or convex formation; making creative options with this screen endless. You can make many flexible creative shapes in rental events like model show, muscial festival, etc. With a 2.6mm pixel pitch, the latest Dazzle III has HCC technology, which is perfect high resolution solution for all events.

  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • MOQ:

    1
  • Warranty Period:

    2 Years
  • Certificates:

    TUV-CE(EMC+LVD)/ETL
  • Stock:

    Available in Both Shenzhen & Branch Warehouse
  • Global Branch & Office:

    Netherlands/Dubai/Japan/India
  • Aftersale Service:

    Provide Global After-Sale Service
Features


Indoor Dazzle III - Rental LED Display


indoor rental led display


Curved Screen




Support Curved Splicing


Easy to splice inner arc, outer arrc and wave screen with innovative angle locks.


curved screen

dsfgsdf




High Image Quality


16bit gray scale, 3840 refresh rate


HD led screen


Seamless 90° Splicing


seamless splicing video wall


Intelligent Cornner Protectors


360° prevent the module from damage


led cabinet with corner protector

Parameters
Model IDA III2.6 IDA III2.8
IDA III2.9 IDA III3.9
IDA III4.8
Pixel Pitch(mm) 2.6 2.84 2.97 3.91 4.81
Pixel Density(dot/m2) 147456 123904 112896 65536 43264
LED Type
SMD2121 SMD2121
SMD2121
SMD2121
SMD2121
Module Size(mm*mm) 250*500 250*500
250*500
250*500
250*500
Horizontal Viewing Angle(Deg) 140 140
140
140
140
Vertical Viewing Angle(Deg)
140 140 140 140
140
Brightness(cd/m2) 1200 1200
1200
1200 1200
Gray Scale(bit) 16 16
16
16
16
Refresh Rate(Hz) 3840 3840
3840
3840
3840
Max Power Consumption(W/sqm) 736 736
736
736
736
Average Power Consumption(W/sqm)
220 220
220
220
220
Cabinet Size(mm*mm*mm) 500*500*75 500*500*75
500*500*75
500*500*75
500*500*75
Cabinet Weight(±0.25kg) 9.6 9.6
9.6
9.6
9.6
Cabinet Resolution(px*px) 192*192 176*176
168*168
128*128
104*104
Input Voltage(AC) 100-240V 100-240V
100-240V
100-240V
100-240V
Ingress Protection IP20 IP20
IP20
IP20
IP20
Working Environment Indoor
Projects
  • Dazzle III P2.9 + Dazzle Plus P3.9 for seminar, India
    Dazzle III P2.9 + Dazzle Plus P3.9 for seminar, India

    Project Type: Medical Seminar Product: Dazzle III P2.9 + Dazzle Plus P3.9 Project address: Mumbai, India Project date: 2018.1.5-6 Project area: 12SQM+81SQM+9SQM
