Shine Plus-Outdoor Rental LED Display

Shine Plus-Outdoor Rental LED Display

Esdlumen Shine Plus- 1st Outdoor Rental LED Video Wall with Blinds Design in the World! Shine Plus is very light & slim compare to old rental display, it's only 10.5kg weight while old one is 30kg weight; it's only 93mm thick while old one is 160mm, which can save more than 50% of human labor and shipping cost, you can do the math.

  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • MOQ:

    1
  • Warranty Period:

    2 Years
  • Certificates:

    TUV-CE(EMC+LVD)
  • Stock:

    Available in Both Shenzhen & Branch Warehouse
  • Global Branch & Office:

    Netherlands/Dubai/Japan/India
  • Aftersale Service:

    Provide Global After-Sale Service
Features

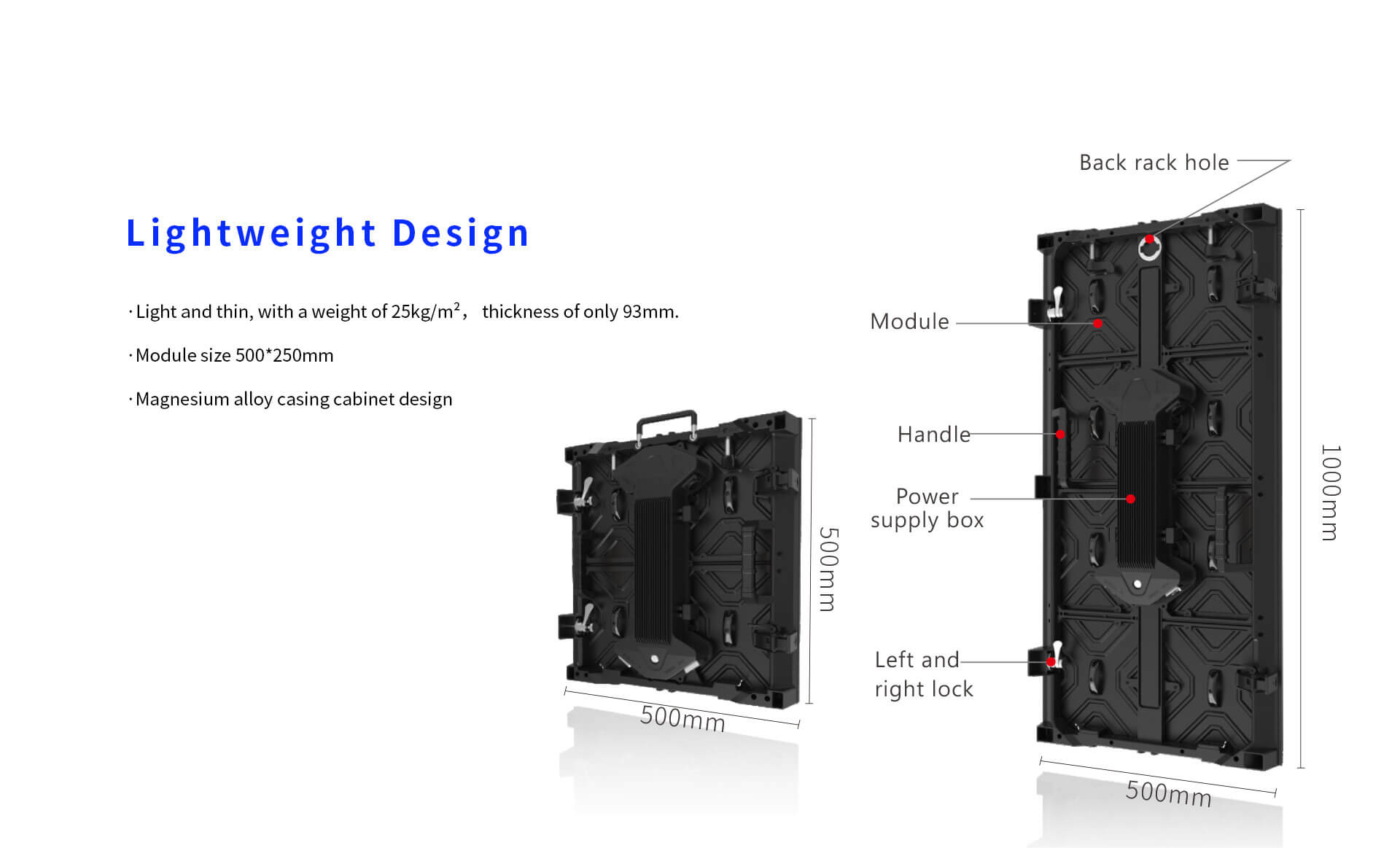

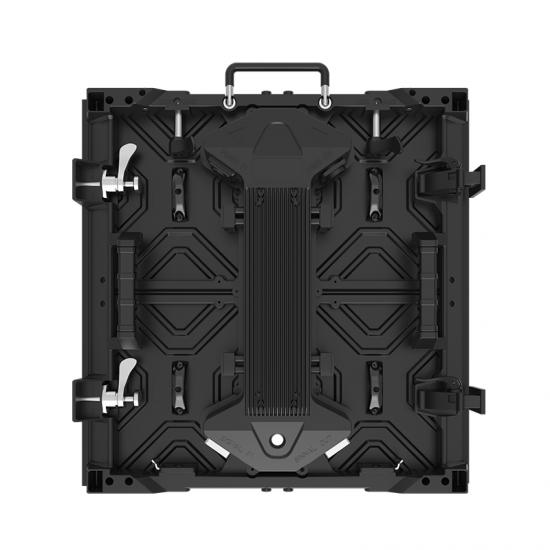

1. 500*1000mm cabinet weight only 10.5kg, hollow & wireless design for 500*250 module.


2. Cabinet adpots magnetic design, support quick installation & maintenance by signle person.


3. Support splicing flat, curved(±10°) & 90° corner angle screen.


4. Fast dismantle & heat delivery design for power box, climbing mechanism design for cabinet, user friendly.


5. Ventilation & light transmission design for cabient, energy saving & good permeability.

Parameters

Model Shine Plus5.9 Shine Plus6.9
Shine Plus7.8
Shine Plus8.9
Pixel Pitch(mm) 5.9 6.9 7.8 8.9
Pixel Density(dot/m2) 28224 20736 16384 12544
LED Type SMD1921 SMD1921
SMD1921
SMD2727
Module Size(mm*mm) 250*500 250*500
250*500
250*500
Cabinet Size(mm*mm*mm) 500*1000*98 500*1000*98
500*1000*98
500*1000*98
Cabinet Weight(±0.25kg) 10.5 10.5 10.5 10.5
Cabinet Resolution(px*px) 84*168 72*144 64*128 56*112
Module Resolution(px*px) 24*84 36*72 32*64 28*56
Horizontal Viewing Angle(Deg) 160 160 160 160
Vertical Viewing Angle(Deg) 110 110 110 110
Brightness(cd/m2) 5000 5000 5000 5000
Gray Scale(bit) 15 15
15
15
Refresh Rate(Hz) 1920 1920
1920
1920
Max Power Consumption(W/sqm) 710 710 710 710
Average Power Consumption(W/sqm)
240 240 240 240
Input Voltage(V) AC 100-240 AC 100-240
AC 100-240
AC 100-240
Ingress Protection IP65 IP65
IP65
IP65
Working Environment Outdoor
Working Temperature(℃) -20~+50 -20~+50
-20~+50
-20~+50
