UEFA-Compliant Perimeter LED Display
UEFA compliance design for well applied in different sports venue;
Quadruple protection to highly reduce player injury risks;
Larger size, higher installation efficiency and less labor cost;
Fast interlocks help lock-and-go high-speed splicing;
Support both front & rear maintenance
Product Origin:
ChinaMOQ:
1Warranty Period:
2 yearStock:
Available in ShenzhenAftersale Service:
Provide Global After-Sale Service

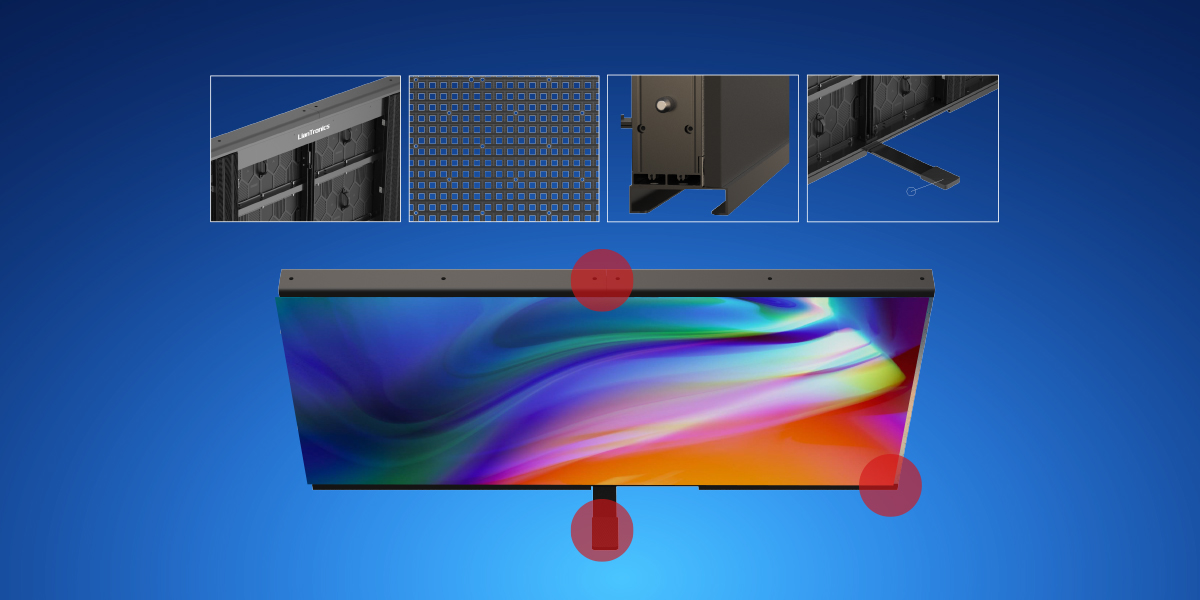

Protection for Players
Rubber pads and the module soft mask can keep the athletes safe from sharp objects while protecting the LED display. With a special design, the perimeter screen can be pushed to both sides quickly to form an exit as an emergency access.
Dollies for Fast Installation
SLG Series supports dollies the same size as the cabinet for fast transportation. Moreover, two dollies allow up-down stacking to save space and one-press disassembly to save installation time.
Never Blackout

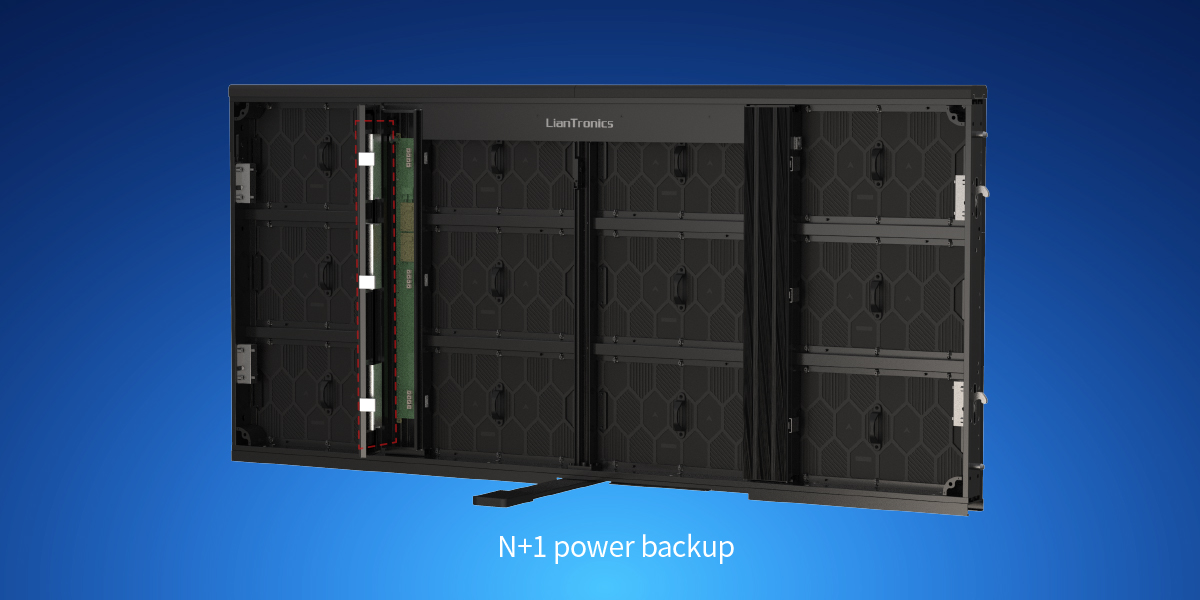

N+1 power backup and receiving card dual backup can keep the screen running steadily and efficiently.
Superb Picture Quality
The 7680Hz high refresh rate and 6000:1 contrast ratio ensure consistently smooth playback.
6000nits brightness and 140° horizontal view remain perfect in-camera visuals during live streaming or broadcast.
Waterproof Protection
The screen’s front and back are IP65-rated to provide all-around protection for all weather conditions.

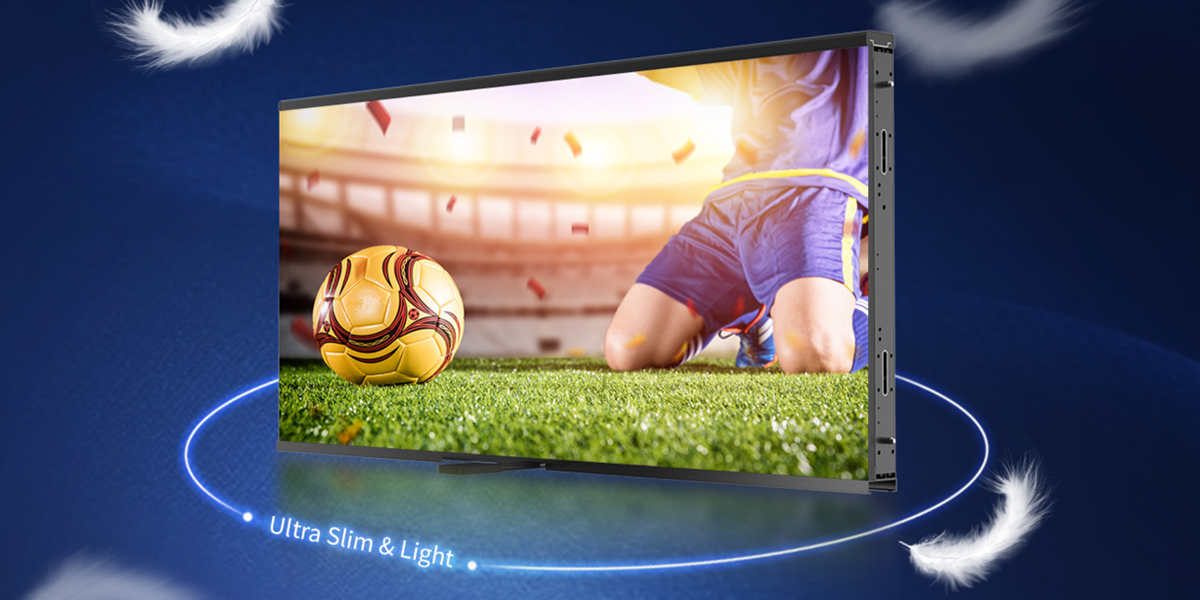

Ultra-Slim & Light
112mm ultra-thin cabinets with light weight to 29kg/㎡ reduce transportation and labor costs.

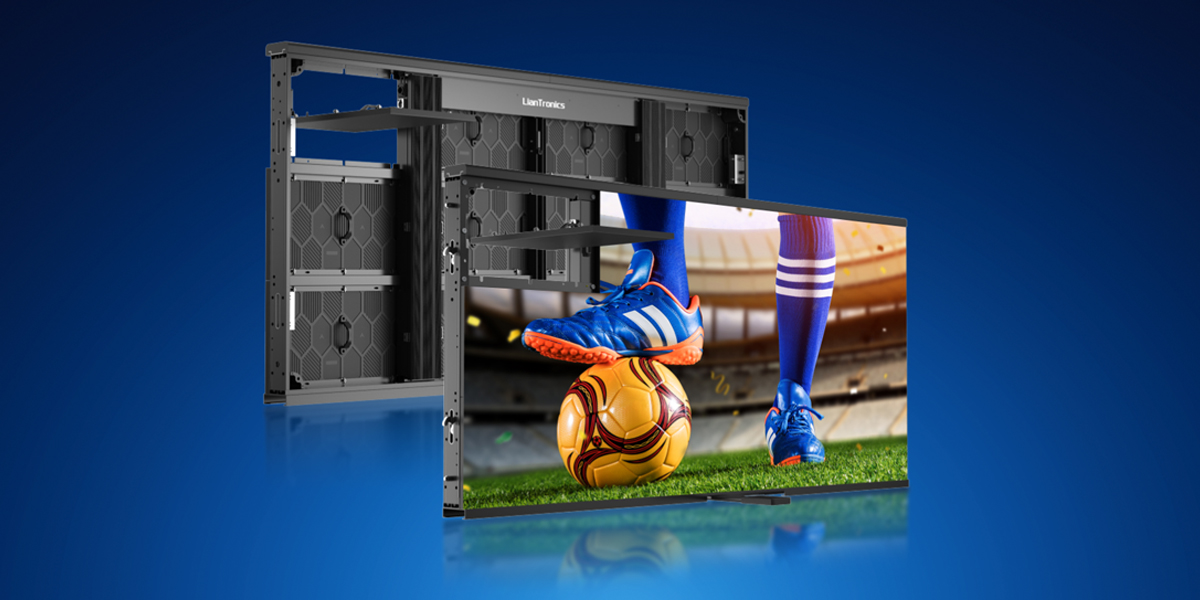

Fast Installation & Maintenance
Panels can be fast installed and disassembled benefited from the fast uniqueinterlock & the lightweight design. Front and rear maintenance improves cabinet'srepair efficiency.
Model |
SLG6.25 |
SLG8.3 |
SLG10 |
SLG12.5 |
Pixel Pitch |
6.25 |
8.3 | 10 | 12.5*10 |
Panel Size(mm) |
2000*900*112 |
|||
Panel Resolution |
320*144 |
240*108 |
200*90 |
160*90 |
Weight(Kg/㎡) |
29 | |||
Panel Material |
Aluminum |
|||
Brightness(nits) |
6000 |
|||
Serviceability |
Front/Rear |
Front/Rear |
Front/Rear |
Rear |
Project Type: Indoor Product Series: Pilot P2.6、LWD3.9x3.9 Project Address: Indonesia Project Date: 2022.07 Project Area: 85、60 ㎡
Project Type: Indoor Product Series: Pilot P2.6 Project Address: Australia Project Date: 2021.11 Project Area: 90㎡
Project Type: Indoor Product Series: Pilot P2.6 Project Address: USA Project Date: 2020.03 Project Area: 20 ㎡
