VE Series-Narrow Pixel Pitch LED Video Wall

1. Using 4 in 1 Mini LED, highly integrated, anti-collision, anti-moisture, anti-collision.

2. 16:9 golden ratio for cabinet, easily splice for 1080P & 4K big screen.

3. Supporting tiny gap adjustment & seamless splicing.

4. Cabinet has 6.5kg, 60mm thickness, support 100% front maintenance, easily maintain.

5. Electric circuit use HCC Technology(High-Powered Common Cathode), high brightness with low electronic consumption.

Features Parameters Projects

Features

Narrow Pixel Pitch - VE Series

Only 0.9mm, the world unfolds in your eyes

fine pitch led display

Wireless Splicing Mode

wireless splicing led screen

Seamless Splicing

Adjustable angle lock to narrow seam between cabinets

seamless splicing led screen

Redundant Power Supply

Double backup function of power supply

stable led display

Golden Ratio 16:9

Supports 1080P, 4K display

4k led display

Front maintenance

Front maintenance for receiving card, sub-line board, and power supply

easy maintenance led screen

Front & Rear Maintenance

Back & Front maintenance for receiving card, sub-line board, and power supply

easy maintenance indoor led screen

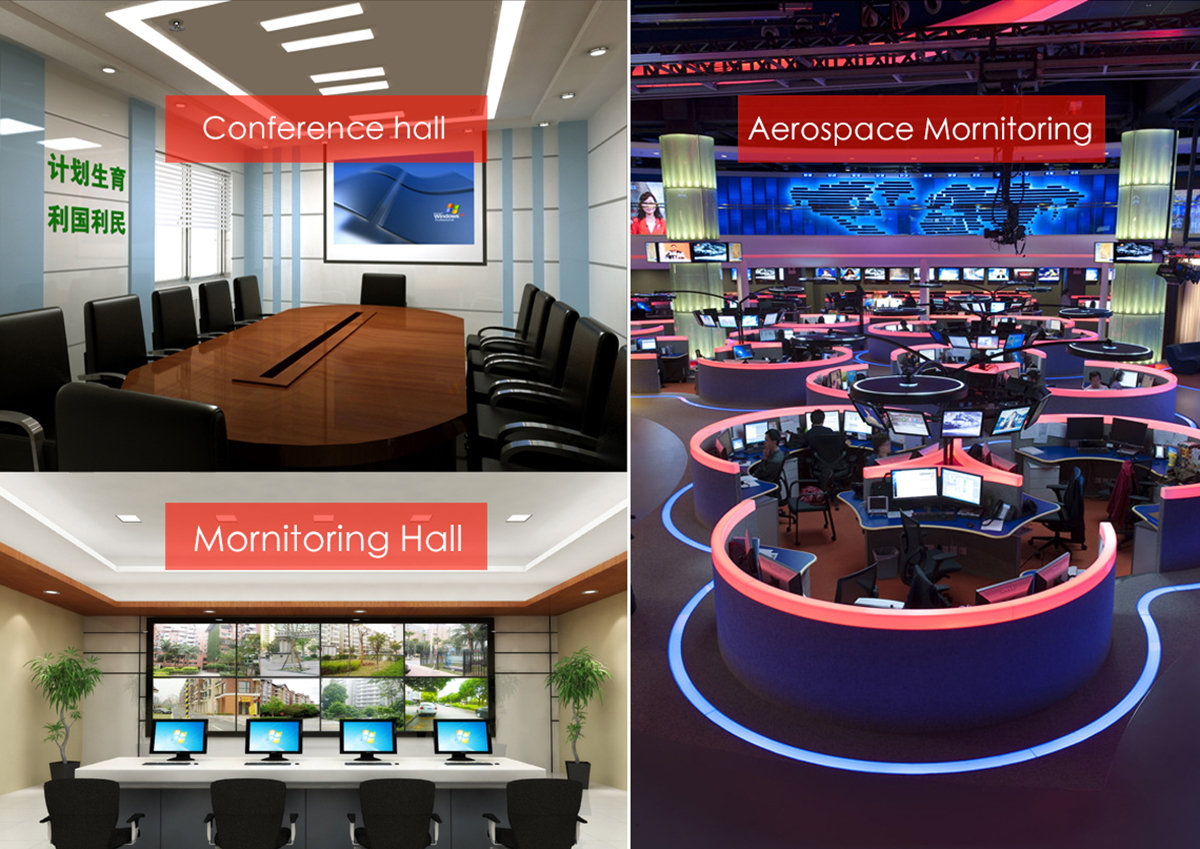

Application

small pitch led display

Parameters

Model	VE0.9	VE1.2	VE1.5	VE1.9
Pixel Pitch(mm)	0.9	1.27	1.58	1.9
Pixel Density(dot/m2)	1101068	622521	396900	275267
LED Type	Mini LED	SMD1010	Mini LED	SMD1010
Module Size(mm*mm)	152*171	152*171	152*171	152*171
Cabinet Size(mmmmmm)	60934360	60934360	60934360	60934360
Cabinet Weight(±0.25kg)	6.5	6.5	6.5	6.5
Cabinet Resolution(px*px)	640*360	480*270	384*216	320*180
Horizontal Viewing Angle(Deg)	140	140	140	140
Vertical Viewing Angle(Deg)	140	140	140	140
Gray Scale(bit)	16	16	16	16
Refresh Rate(Hz)	3840	3840	3840	3840
Max Power Consumption(W/sqm)	725	725	725	725
Average Power Consumption(W/sqm)	215	215	215	215
Input Voltage(V)	AC 100-240	AC 100-240	AC 100-240	AC 100-240
Ingress Protection	IP20	IP20	IP20	IP20
Working Environment	Indoor
Working Temperature(℃)	-20~+50	-20~+50	-20~+50	-20~+50

Projects

VE P1.58 for conference room, Shenzhen
Project Type: Indoor Fixed (Company Meeting Room) Product: VE Series P1.5 Project Address: Songli Mountain, Xili, Nanshan District, Shenzhen Project Date: Nov 2018 Project Area: 8㎡
