After a faulty LED module has been replaced, a visible patch usually means the new module has not yet been matched to the wall's stored calibration data. It may look brighter, slightly warmer, slightly cooler, or only show a faint color difference in dark scenes or camera preview. In Esdlumen after-sales work, we treat this as a diagnostic issue before changing brightness, color temperature, or grayscale settings.
Each LED module carries its own brightness and chroma behavior. The replacement module may have a different aging level, come from another production batch, or lack the coefficient data stored for that cabinet position. Practical LED panel color calibration starts by proving whether the mismatch follows the module or stays in the cabinet position, then matching the correction method to that verified cause.
Why a replaced module stands out from the wall
When a replaced module stands out, the cause usually comes from coefficient data, module condition, or the cabinet path. A white field shows the module boundary, while RGB, low-gray, and real video reveal whether the difference is tied to channel balance, gamma, grayscale, brightness, or aging.
Coefficient problems point to Module Flash, coefficient files, brightness coefficients, and chroma coefficients. Cabinet-path problems point to the ribbon cable, HUB board, receiving card, power path, or cabinet mapping. This follows the same logic we use in our LED module repair and color-test workflow.
Confirm the module fault before you calibrate
Before using any LED panel color calibration method, separate a module-data issue from a cabinet-path issue. Load black, white, red, green, blue, and low-gray test patterns. White shows the boundary. RGB fields expose channel imbalance or the wrong RGB order. Low gray at 5%-20% reveals gamma and grayscale problems that bright images may hide.
In field checks, the replaced module is marked, photographed, and moved to a known-good slot in the same cabinet or batch. The original position is then tested with a known-good module. When the patch moves with the replaced module, the next check focuses on Module Flash, coefficient files, brightness coefficients, and chroma coefficients. When the patch stays in the original position, the inspection moves to the HUB board, ribbon cable, receiving card, cabinet mapping, and power supply before any color adjustment begins.
Module-related patches need data recovery or coefficient matching. Cabinet-position patches need signal, connection, mapping, or power inspection first.
LED panel color calibration methods by fault pattern
The table below connects each visible fault with the check result, likely cause, and calibration path.
| Fault pattern | Verification method | Likely cause | Calibration path |
|---|---|---|---|
| New module looks brighter | White field plus module swap | Missing coefficients, batch gap, or aging difference | Reload module data or the correct coefficient file |
| Color block moves with module | Swap with a known-good module | Module data mismatch or module quality issue | Read Module Flash, then retest RGB and low gray |
| Color block stays in cabinet position | Swap test plus cable and HUB check | Cabinet control-path issue | Fix the hardware path before color work |
| White looks acceptable but low gray is tinted | 5%-20% gray image | Gamma or grayscale mismatch | Manual balance or point-by-point calibration |
| The eye accepts it but the camera sees a patch | Camera preview and recording test | Camera-facing uniformity issue | Point-by-point or camera-oriented calibration |
1. Power-cycle the cabinet to reload module data into the receiving card
When the new module already has usable calibration data, the receiving card may only need to read that data again. In that case, save the current settings, restart the cabinet, and rerun the white, RGB, and low-gray patterns. The repair is complete when the module boundary disappears after restart and stays clean during moving video.
This method works only when the stored data remains intact. Before removing or installing modules, keep the coefficient backup, receiving-card settings, and cabinet address traceable so the replacement module can be read by the correct position after restart.
2. Read Module Flash and save coefficients to hardware
A restart that leaves the boundary visible usually means the receiving card still lacks the correct coefficient data for that position. The replacement module may already carry factory or project calibration data in Module Flash, while the card has no saved copy in hardware.
At this stage, read the brightness and chroma coefficients from Module Flash, save them to the receiving card or hardware, restart the cabinet, and retest with white, RGB, low gray, and moving content. This sequence follows receiving-card coefficient management practices used on NovaStar Armor platforms.
3. Load a saved coefficient file when Module Flash cannot be read
When Module Flash cannot be read, the next source is the project coefficient file. The file must match the screen, cabinet address, module position, pixel pitch, scan mode, and batch information before upload. After upload, white, RGB, low gray, and moving content are tested again. White improvement with a red or blue shift usually points to a batch, address, or position mismatch in the coefficient file.
4. Manually balance brightness, color temperature, gamma, and grayscale
When Module Flash, coefficient files, and cabinet-path checks all pass, a remaining patch usually comes from the condition gap between the new module and the surrounding modules. Older modules may show lower brightness, shifted color temperature, or weaker low-gray consistency after years of use.
At that point, the work moves from data recovery to visual balancing. Project brightness comes first, followed by comparison with neighboring modules, white balance, and 5%, 10%, and 20% gray checks. Low-gray images and gradient video expose brightness, gamma, and grayscale drift that bright content can hide. The Colorlight brightness and chroma coefficient calibration reference is useful background for the controls involved in this step.
5. Use point-by-point calibration for fine-pitch and camera-critical walls

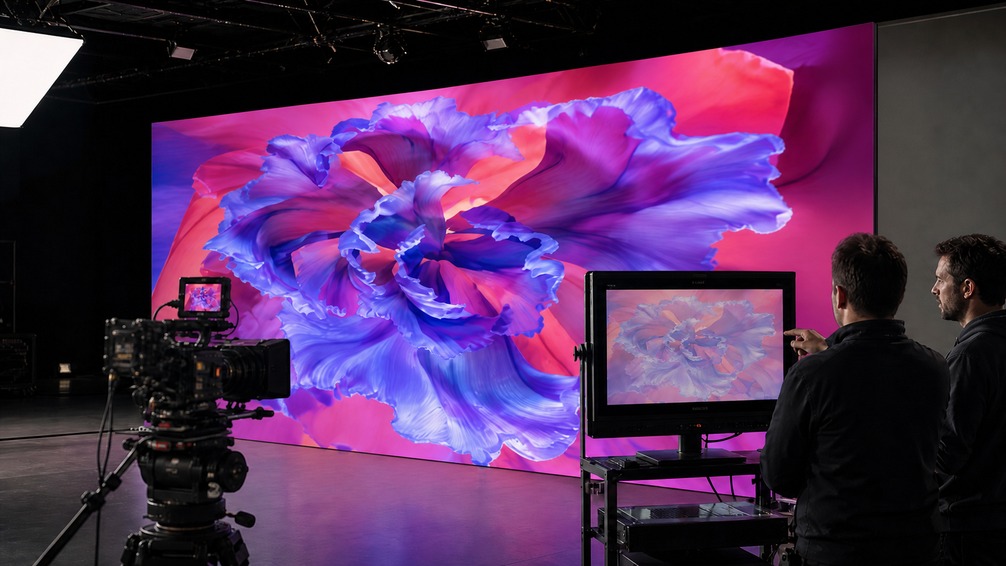

When manual balance still leaves a visible patch, the wall usually needs point-by-point calibration. This fits fine-pitch LED walls, studios, XR rooms, broadcast rooms, and premium showrooms, where a small module boundary can show up under low gray content, gradient video, or camera preview.
For Esdlumen field calibration, point-by-point work comes after data recovery, coefficient matching, and manual balance. On the Pilot Pro fine-pitch LED display, the replaced area is retested with white, RGB, low gray, moving video, and camera preview after the correction pass.
For camera-facing projects, CIE colorimetry guidance and SMPTE LED-wall color-management guidance provide the right technical vocabulary for color and camera checks.
Handling persistent color difference after module replacement
When a replaced module still looks different after calibration, follow-up work usually narrows to three areas: coefficient data, module aging, and the cabinet hardware path.
A data-related difference is handled by checking Module Flash, coefficient-file matching, and whether the coefficients have been saved to hardware. An aging-related difference is handled through brightness, white balance, gamma, grayscale, or point-by-point calibration. A cabinet-related difference is handled by checking the ribbon cable, HUB contact, receiving-card output, scan mode, cabinet mapping, and power supply.
Once the cause is corrected, the repaired area should be checked again with white, RGB, low gray, and moving video so the new module blends with the aged modules around it.
How to verify calibration after module replacement
After module replacement, start the calibration check with a clean white screen and a traceable record. The service log should keep the cabinet address, module position, receiving card, spare-module code, coefficient file, software version, and a photo of the replaced area.
The repaired area should then go through static color fields, low gray, moving video, camera preview where needed, and restart verification. Using the same inspection sequence makes later service comparisons easier and helps catch early drift.
| Inspection dimension | Test condition | Pass criteria | Recommended correction |
|---|---|---|---|
| White-field uniformity | Full white screen | No visible boundary, cold patch, or warm patch | Reload coefficients, check batch, then balance white |
| RGB consistency | Red, green, and blue screens | Replaced area blends with adjacent modules | Check RGB order, scan mode, and module data |
| Low grayscale | 5%-20% gray | No tint or dirty-gray patch | Adjust gamma or run point-by-point calibration |
| Moving content | Gradients and dark video | No patch during motion | Recheck brightness, gamma, and module aging |
| Brightness match | Normal project brightness | Old and new modules transition naturally | Balance brightness or compensate for aging |
| Camera consistency | Preview or recording | No patch, scan artifact, or color shift | Run camera-oriented or point-by-point calibration |
| Data retention | Restart after saving | Calibration remains after reboot | Save to hardware again and verify storage |
| Hardware stability | Short observation run | No flicker or intermittent color block | Inspect the ribbon cable, HUB board, receiving card, and power path |
Spare modules and calibration data for future repairs
Future repairs depend on matched spare modules and usable calibration data kept with the project file. Keep BIN information, coefficient files, cabinet addresses, module positions, scan mode, and the last acceptance record together.
Spare modules from the same BIN give the replacement a closer brightness and color starting point. Coefficient files should be labeled by screen, cabinet address, module position, pixel pitch, scan mode, and batch so the service team has a reliable source when Module Flash cannot be read.
The repair record should show the opened cabinet, replaced module, coefficient file used, and the white, RGB, low gray, moving video, and restart tests that passed. That makes later troubleshooting much faster.
Esdlumen support for stable LED panel calibration
Stable calibration after module replacement depends on clear project data and repeatable service checks. We use the cabinet model, control system, module position, coefficient file, and test-pattern results to trace the calibration path before changing brightness or color values.
Commercial walls, education displays, retail screens, studios, and XR projects need different acceptance depth. The replaced module should still be checked through white, RGB, low gray, moving video, camera preview where needed, and restart verification.
If a project needs help with module matching, coefficient recovery, or post-repair verification, you can route the case through our after-sales support team or send the project details through our contact page.
FAQ
Do I always need color calibration after changing an LED module?
A calibration check belongs after every module change. Full manual tuning comes later, when test patterns, a module swap, data reload, and restart verification still leave a visible patch.
Why is the replacement LED module brighter than the old modules?
The new module usually has less aging or missing coefficient data. A white field, a low-gray image, and a module swap should confirm the cause before brightness adjustment begins.
Which LED panel color calibration methods work best after module replacement?
The right method follows the verified fault pattern: power-cycling, Module Flash readback, coefficient-file upload, manual balance, or point-by-point calibration.
Can restarting the LED panel fix a module color mismatch?
Restarting helps when the receiving card only needs to reload valid module data. Save the data first, restart the cabinet, and repeat the same test patterns for confirmation.
When do I need point-by-point calibration?
Point-by-point calibration fits fine-pitch, close-viewing, low-gray, broadcast, XR, studio-camera, and showroom walls when broader tuning still leaves a visible patch.
Should I calibrate the whole wall or only the replaced-module area?
Start with the replaced area and its adjacent modules. Whole-wall adjustment belongs after the module data, cabinet path, and local match all pass.
Conclusion
Calibrating an LED panel after changing modules starts with the fault path. First confirm whether the color patch follows the replaced module or stays in the cabinet position, then choose the matching method from data reload, Module Flash readback, coefficient-file loading, manual balance, or point-by-point calibration.
The process should end with verification. White, RGB, low gray, moving video, camera preview where needed, and restart checks confirm whether the replaced module blends with the surrounding wall. When the module data, coefficient records, test results, and hardware-saving status stay traceable, the repair is more likely to hold after restart and remain easier to review in future service work.
