At Esdlumen, we plan LED screen lifespan around how the display is installed, loaded, and serviced because good operating conditions help the screen keep useful life for longer. In a retail store, a control room, an outdoor site, or a rental event, the same screen can age differently depending on brightness, heat, runtime, content load, dust, moisture, power stability, and handling. The maintenance plan should come from that operating picture: what the screen shows, how long it runs, how heat leaves the cabinet, and which site risks appear first.
What LED Screen Lifespan Actually Means
For an operator, useful LED screen life is the period during which the complete display maintains acceptable brightness, color consistency, and operating stability for its intended application. The endpoint is usually gradual performance loss or rising component failures. LEDs, power supplies, driver ICs, receiving cards, connectors, PCBs, cooling paths, and cabinet parts can age at different rates.
L70 is the point where LED light output has fallen to 70% of its initial level. The U.S. Department of Energy uses this brightness-depreciation basis to explain LED lighting life. For an LED screen, LED output loss over time is one visible part of aging.
LM-80 records lumen and color maintenance for LED packages, arrays, or modules, and TM-21 projects longer-term lumen maintenance from that test data. The Illuminating Engineering Society positions these methods at the LED-component level, so complete-screen planning still needs product context: module design, power supplies, control hardware, cooling paths, cabinet condition, and the actual operating environment.
LED-level data mainly helps estimate brightness depreciation, while module or product-level estimates give a closer view of maintenance needs. This is why two screens with the same rated hours can still require different service plans in real installations.
Identify the Main Lifespan Stress in Your Installation
Before treating a fault as component failure, check whether the symptom follows the workload. Flicker, heat, rebooting, alarms, or instability that appears during high brightness, heavy content, long runtime, or poor cooling points first to operating margin, power delivery, or heat removal.
Moisture, dust, and handling marks help separate site stress from component failure. Water marks point to ingress or drainage checks. Dust location shows whether the issue is mainly visibility, heat removal, or electrical reliability. Shifted cabinets, strained cables, or misaligned modules point to handling stress before normal service resumes.
In one service visit, flicker stayed in the same column after the crew reseated the power connectors and tested whether the fault moved with the modules. That ruled out a simple module issue and pointed the technician toward the power path, where an aging power supply was causing the problem.
Consider replacing parts only when the fault still follows a module, stays in the same cabinet area under normal load, or returns after drying, cleaning, reseating, and load reduction have ruled out site conditions.
Control Brightness, Heat, Operating Hours, and Content Load

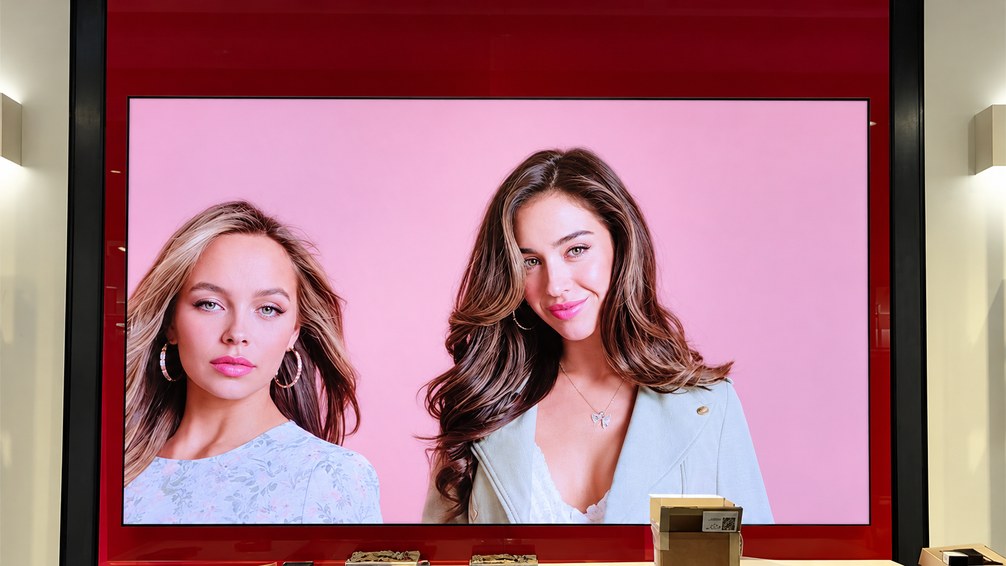

Plan brightness, runtime, playback content, and cooling from the way the site actually runs. For indoor fixed retail displays such as the BIM Plus-X indoor fixed LED screen, the brightness profile starts with viewing distance and ambient light. If the site runs 24/7, prioritize brightness level, content load, and cooling margin instead of relying on shorter operating hours.
Outdoor billboards also need brightness and cooling to match their operating conditions. The Hercules Series outdoor LED digital billboard uses HCC technology to reduce power consumption and offers programmable, automatic, or manual brightness adjustment. Brightness can follow ambient light, and playback schedules can limit prolonged full-white or other high-load content. After scheduled operating hours, dimming or shutdown reduces the screen’s load and heat output. Clear heat paths help the remaining heat escape from the cabinet.
| Control | Practical setting | Target state |
|---|---|---|
| Brightness | Daytime and low-light profiles should follow viewing distance and ambient light, not maximum output. | Clear view without full output. |
| Operating hours | Keep the screen at full operation only during audience-facing or business hours; use dimming, standby, or shutdown during idle periods. | Planned low-load periods. |
| Content load | Full-white, high-brightness, or static visuals create load fastest during long runs. | Run heavy content for long periods only when the visual effect is needed. |
| Heat removal | Rear clearance, vents, fan areas, and hot-air paths must match the approved brightness and schedule. | No recurring heat or cooling trips. |
Continuous maximum output, repeated overheating, or unstable operation signals a mismatch in screen specification, cooling design, installation environment, or power capacity.
Protect the Screen From Dust, Moisture, Power Problems, and Handling Damage
Dust and debris are not only cosmetic issues. Surface buildup affects visibility, but buildup around vents, fan zones, module gaps, and power areas can trap heat or disturb electrical connections. Cleaning should therefore focus on the paths that affect cooling and reliability, while internal electrical areas should stay untouched until the screen is safely powered down.
Moisture and unstable power deserve a stricter threshold because both can turn a small fault into wider damage. If water marks, condensation, or suspected ingress appear, keep the screen powered off until the source is found and the drying and restart procedure is complete. For power risk, the key question is whether grounding, surge protection, connections, distribution, and circuit capacity can support the actual site load.
During transport or storage, the module face should not carry pressure, connectors and cables should not be pulled, and cabinet weight should rest on the intended support points. After relocation or reassembly, alignment and cable support need another look before the screen returns to full operation.
Apply the Right Practices to Your Screen Type

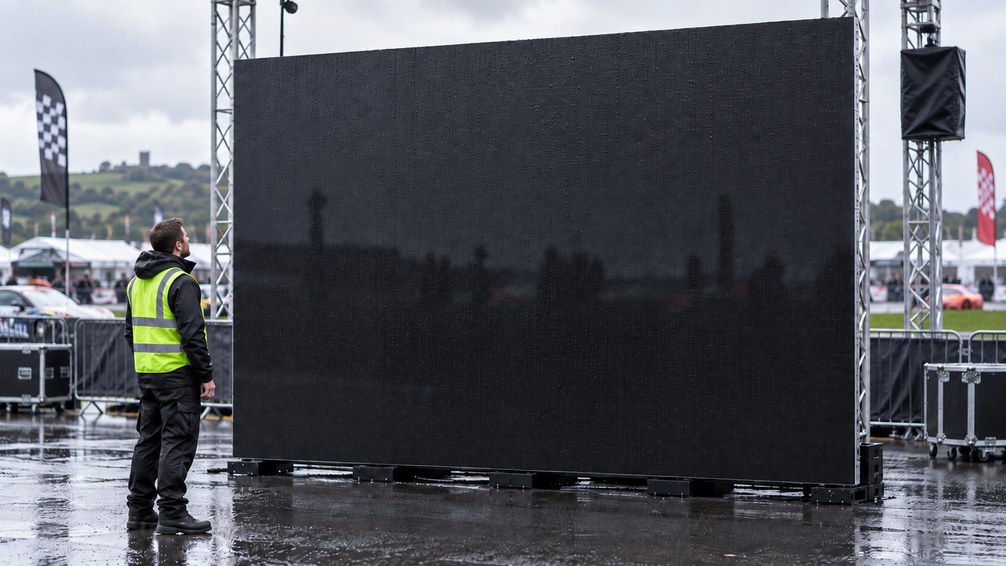

Weather, drainage, sealed power areas, and moisture control set the baseline before any longer service interval makes sense. For rental use, the Dazzle Ⅳ Series outdoor rental LED screen adds another layer: transport and reassembly can affect cabinet alignment, module seating, cable strain, and moisture signs before the screen goes back into service.
A fixed 24/7 display is mainly a load and heat-control problem, while a rental screen is more exposed to handling damage between venues: impact marks, connector strain, cabinet fit, and moisture left from the last setup.
LED Screen Inspection Schedule: Routine and Event-Based Checks
Planned service rhythm works only while the screen’s operating pattern stays stable. Rain exposure, transport, unusual heat, flicker, alarms, or a change in load should pull the next inspection closer.
| Inspection trigger | Inspection scope |
|---|---|
| Each operating day or shift | Startup, active brightness profile, playback schedule, and any new flicker, alarm, color change, noise, or abnormal heat |
| Planned service interval | Dust and airflow condition, cabinet integrity, cables, connectors, grounding, protection devices, and moisture signs |
| Rain, washing, high humidity, or suspected water exposure | Fogging, water traces, drainage, sealing, and damp internal or storage conditions |
| Transport, storage, or reassembly | Cabinet alignment, locks, module seating, connectors, cable strain, impact marks, and case dryness |
| Flicker, rebooting, overheating, alarms, or protection trips | The timing of the fault and the related power, cooling, connection, and environmental conditions |
The manual and site maintenance plan set the starting interval, but the real adjustment comes from trend evidence. Longer intervals are only reasonable after repeated records show that faults are not returning, environmental exposure is controlled, and the screen remains stable under its normal workload.
LED Screen Lifespan Checklist
Routine operation resumes only after load, heat, dust, moisture, power, handling, and fault-record risks are cleared.
| Lifespan stress | Site reading | Operation decision |
|---|---|---|
| Operating load | Brightness, runtime, heavy-content use | Approved brightness profile with planned low-load time |
| Thermal path | Rear heat under heaviest playback | Full load / reduced load / airflow check |
| Dust exposure | Face dust vs. buildup at vents, fan zones, module gaps, service areas | Normal interval / clean now / shorter interval |
| Moisture exposure | Condensation, water marks, ingress, damp storage | Keep power off until drying is complete and restart is cleared |
| Power path | Distribution, grounding, protection, connections, capacity | Resume routine operation only after load capacity is verified |
| Handling impact | Cabinet alignment, module seating, connector strain, cable dryness | Full output after alignment, seating, and cable support are restored |
| Fault record | Time, position, brightness, content load, operating state | Service escalation after time, location, and operating state are documented |
Routine findings can stay on the normal schedule. Heat, moisture, power, handling, or repeated faults need a shorter interval, service follow-up, or an operation hold.
FAQ About LED Screen Lifespan
What does a 100,000-hour LED lifespan mean?
At 24/7 operation, 100,000 rated hours equals about 11.4 years; at 12 hours per day, about 22.8 years. Both estimates remain tied to the criterion and test conditions stated in the datasheet and do not establish a complete-screen replacement date.
When should an LED screen be repaired or replaced?
If module, power, connection, cooling, control, or cabinet issues can be repaired and the screen can return to safe, stable operation, prioritize repair. Replacement makes more sense after widespread brightness or color loss, repeated failures, unavailable parts or support, or excessive repair cost and downtime.
Conclusion: Plan Lifespan Around the Real Installation
Good operating control helps the screen stay usable for longer before brightness loss, unstable operation, or early part replacement appears. When repeated heat, moisture exposure, power instability, handling damage, or unresolved display faults appear, contact our technical support team with the site condition, fault record, and screen model. We can confirm the next support step, from maintenance guidance to on-site instruction, return-to-factory repair, or one-to-one maintenance training.
